GIGABYTE B760M GAMING DDR4 Intel B760 Micro ATX Motherboard

Description

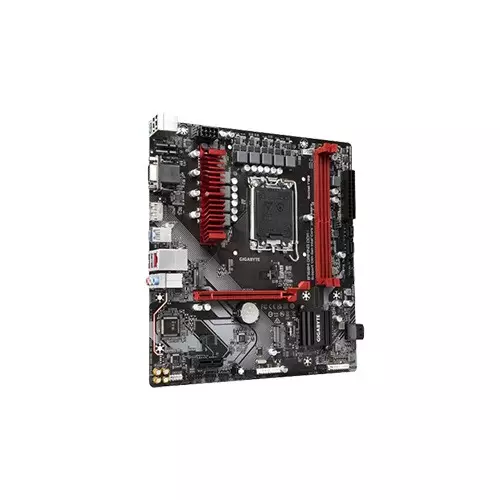

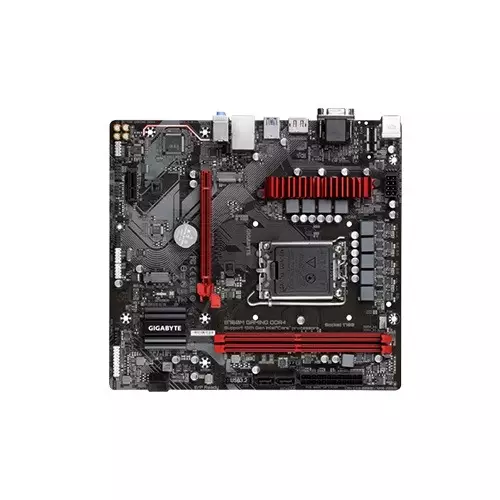

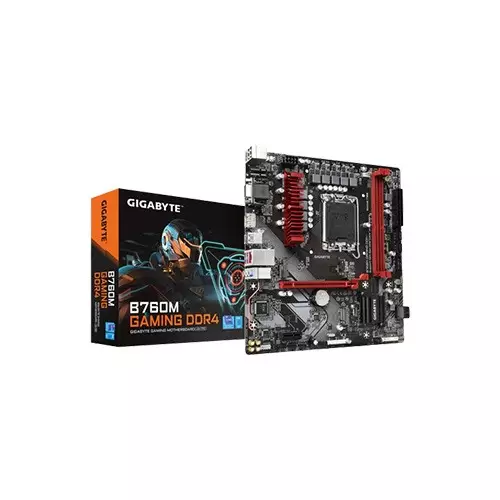

GIGABYTE B760M GAMING DDR4 (Intel B760) Micro ATX Motherboard for LGA1700 CPUs

The GIGABYTE B760M GAMING DDR4 is a performance-focused Micro ATX motherboard built on the Intel B760 Express chipset, designed for reliable everyday computing and smooth gaming builds. It supports Intel processors from the 14th, 13th, and 12th generations on the LGA1700 socket, making it a practical platform for users upgrading from older systems or assembling a new DDR4-based PC. With a compact Micro ATX form factor (24.4cm x 22.5cm), it fits well in space-conscious cases while still offering the connectivity and expansion options needed for modern peripherals and storage.

DDR4 Memory Support with XMP for Faster Performance

This motherboard supports DDR4 memory with speeds up to 5333MT/s (O.C.), giving you the flexibility to tune performance for gaming, multitasking, and content workflows. It includes dual DIMM slots, supporting up to 64GB of system memory, which is ideal for users who run multiple applications at once, keep large browser sessions open, or work with heavier files. Extreme Memory Profile (XMP) support helps you reach higher memory profiles more easily compared to running at default settings, which can be especially useful when building a balanced DDR4 gaming rig.

Graphics & Display Outputs for Versatile Setup

For video output, the B760M GAMING DDR4 provides D-Sub, HDMI 2.1 (4K@60Hz), and DisplayPort 1.2 (4K@60Hz) connections. This combination supports up to three displays simultaneously, making it a strong choice for productivity setups such as trading dashboards, office work with multiple windows, or streaming and monitoring tasks. Compared to single-display configurations, multi-monitor support can improve workflow efficiency by reducing window switching and helping you keep reference materials visible while working.

Storage Expansion with Dual M.2 PCIe 4.0 and SATA RAID

Storage performance is a key strength of this board. It includes two M.2 PCIe 4.0 slots for fast NVMe SSD installation, helping reduce load times and improve responsiveness in games and applications. In addition, it offers four SATA 6Gb/s ports for extra drives when you need more capacity. RAID support (RAID 0, 1, 5, and 10) provides options for performance, redundancy, or a mix depending on your needs—useful for users who want better data protection or faster throughput for large projects and media libraries.

High-Speed Networking and Immersive 7.1-Channel Audio

For networking, the Realtek 2.5GbE LAN controller delivers high-speed wired connectivity, which is beneficial for online gaming, stable streaming, and faster file transfers within a local network. On the audio side, the Realtek HD Audio Codec supports 7.1-channel high-definition sound with S/PDIF out, helping create a more immersive experience for movies, games, and music—especially when paired with a compatible headset or speaker system.

USB Connectivity and BIOS Update Convenience

The motherboard includes multiple USB ports, featuring USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1, and USB 2.0/1.1 options. This mix supports both high-speed peripherals and everyday devices like keyboards, mice, and external storage. For system maintenance, Q-Flash and Q-Flash Plus make BIOS updates easier, which can be helpful when you want to keep compatibility and performance improvements current. GIGABYTE Control Center (GCC) support also enables advanced system tuning for users who like to optimize their build.

Operating System Compatibility and Warranty

The GIGABYTE B760M GAMING DDR4 supports Windows 11 64-bit and Windows 10 64-bit, making it suitable for most modern PC setups. It also comes with a 3-year manufacturer warranty, offering added confidence for long-term ownership. Note that this model does not include built-in Wi‑Fi; if you need wireless connectivity, you can use a Wi‑Fi adapter via USB or PCIe.
