-500x500.png "ASRock B850 Steel Legend Wifi AM5 DDR5 ATX Motherboard")
-500x500.png "ASRock B850 Steel Legend Wifi AM5 DDR5 ATX Motherboard")
-500x500.png "ASRock B850 Steel Legend Wifi AM5 DDR5 ATX Motherboard")
-500x500.png "ASRock B850 Steel Legend Wifi AM5 DDR5 ATX Motherboard")
| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD B850 | |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 8 Layer PCB |
|
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots | |
| Channel Supported | Supports 160MHz channel bandwidth with 6GHz frequency band | |
| Maximum Memory | Max. capacity of system memory: 256GB |
|
| Supported Memory | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| Graphics | ||
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Storage | ||
| Supported Storage | 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
|
| Network | ||
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Wireless | 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
|
| Audio | ||
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio |
|
| BIOS | ||
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz | |
| USB Ports | All USB ports support ESD Protection | |
| Audio | 1 x Front Panel Audio Connector | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |

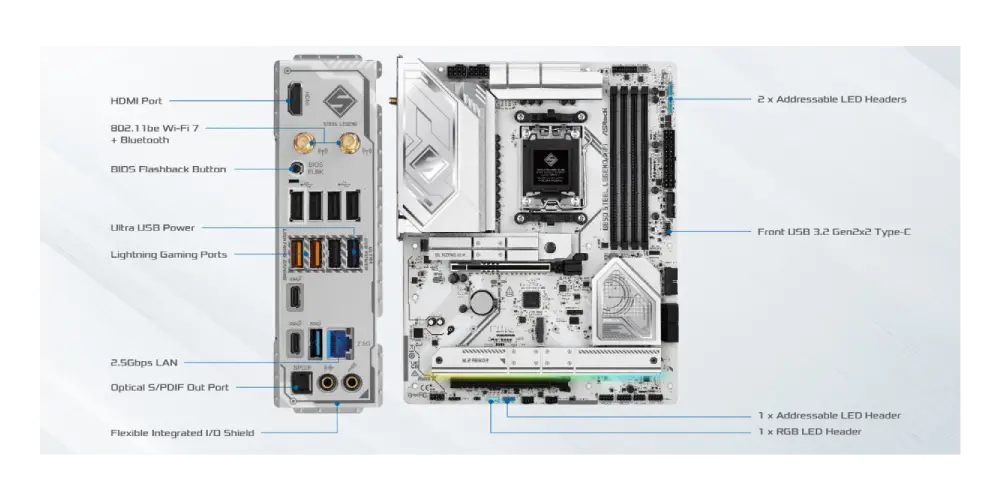

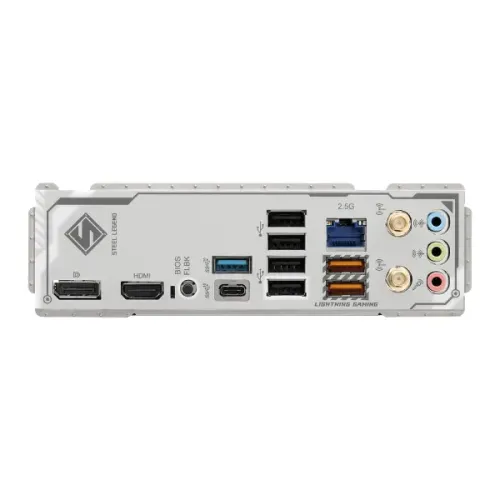

| Internal I/O Ports | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s) - 3 x USB 3.2 Gen1 Type-A Ports* - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
|
| Others | ||
| Bundled Software | Supports Dragon 2.5G LAN Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC |
|
| Wireless Communication module | - 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO |
|
| Warranty | ||
| Warranty | 3 years | |
The ASRock B850 Steel Legend WiFi AM5 DDR5 ATX Motherboard is an excellent choice for users looking for stability, performance, and durability in their next-generation PC designs. The AMD B850 chipset powers the latest AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs on the AM5 socket, giving cutting-edge performance for gaming, content creation, and multitasking. It supports high-speed DDR5 memory, which improves bandwidth and system efficiency, making it excellent for demanding workloads. Its reinforced PCIe 5.0 slots are designed to support the most recent graphics cards, while PCIe Gen5 M.2 slots deliver lightning-fast storage performance for next-generation NVMe SSDs. The Steel Legend series is known for its toughness, and this board upholds that heritage with a 14+2+1 power phase design and premium components for consistent power delivery. Connectivity is future-proof, with integrated WiFi 6E, 2.5Gb Ethernet, and high-speed USB 3.2 Gen2x2 Type-C connectors for rapid data transmission and seamless online experiences. The motherboard includes innovative heatsinks and several fan headers to keep temperatures under control even under intense workloads. Additional features such as Nahimic Audio, Polychrome RGB lighting, and a sturdy ATX configuration make it a fantastic choice for gamers and PC enthusiasts that value both performance and aesthetics. The ASRock B850 Steel Legend WiFi strikes the ideal combination between contemporary technologies, expandability, and durable construction for high-performance setups. The ASRock B850 B850 Steel Legend Wifi AM5 DDR5 ATX Motherboard comes with 3 years warranty.
