| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors | |
| Chipset | AMD B850 | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm, 2oz Copper PCB |
|
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots | |
| Channel Supported | Dual Channel DDR5 Memory Technology | |
| Maximum Memory | Max. capacity of system memory: 256GB | |
| Supported Memory | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC). Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules |
|
| Graphics | ||
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Storage | ||
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Wireless | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out Port - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
|
| BIOS | ||
| BIOS | -256Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports |
|
| Display Port | 1 x DisplayPort 1.4 | |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|

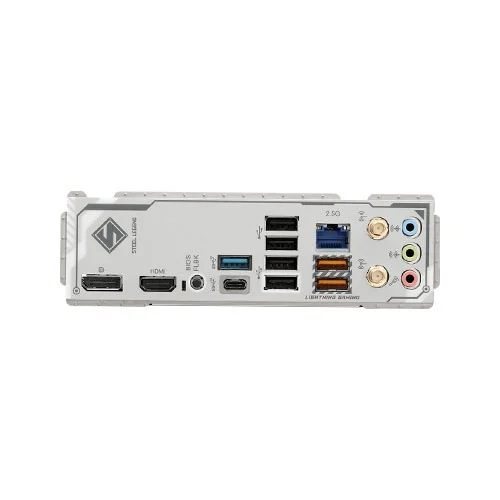

| Internal I/O Ports | - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone - 2 x Antenna Ports - 1 x SPI TPM Header - 1 x Thermistor Cable Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Special feature | - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 1 x Thermistor Cable - 2 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
|
| Warranty | ||
| Warranty | 03 Years warranty | |

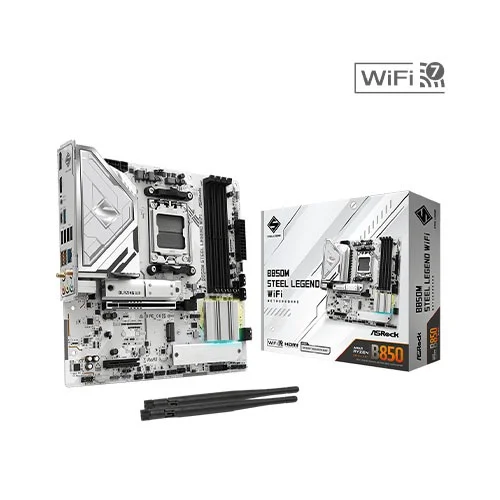

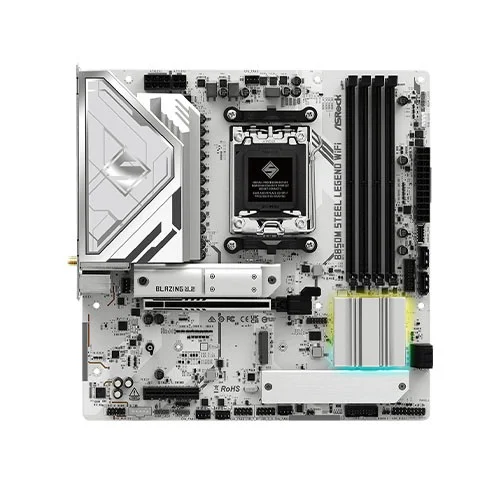

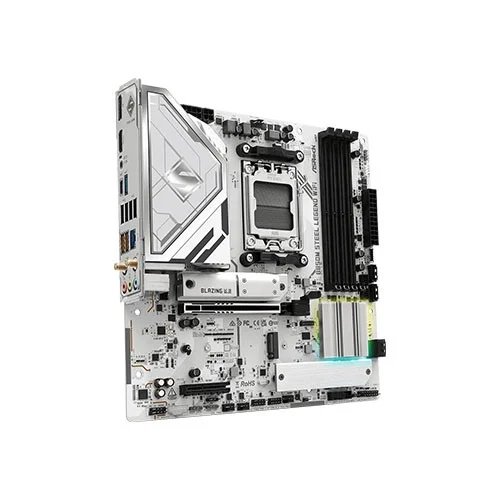

The ASRock B850M Steel Legend WiFi AMD AM5 Motherboard is a robust and performance-oriented micro-ATX motherboard designed to support AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors. Built on the AMD B850 chipset, it offers incredible connectivity and productivity with PCIe Gen5 slots for both graphics and M.2 storage. It provides high-speed networking with 2.5G LAN and 802.11be Wi-Fi 7 module, offering seamless internet connectivity for demanding applications and online gaming. This motherboard ensures rock-solid durability with a 12+2+1 Power Phase Design featuring Dr.MOS for VCore, SOC, and MISC, paired with enlarged heatsink armor for enhanced cooling. The inclusion of 20K long-lasting black capacitors ensures exceptional stability and longevity, ideal for heavy-duty usage. The dual-channel DDR5 memory technology supports up to 256GB of RAM with overclocking capabilities reaching 8000+(OC), making it perfect for high-performance computing. Its graphics support includes integrated AMD RDNA™ graphics with HDMI 2.1 and DisplayPort 1.4, delivering impressive visuals at 4K 120Hz resolution. Storage options are versatile with Blazing M.2 Socket (Gen5x4), Hyper M.2 (Gen4x4), and SATA3 connectors, supporting various RAID configurations. Additionally, the motherboard features a comprehensive rear panel I/O, which includes multiple USB ports, audio jacks, and connectivity for antennas. The ASRock AMD Motherboard has also equipped the B850M Steel Legend with advanced BIOS management and troubleshooting tools, including BIOS Flashback Button, ASRock Auto Driver Installer, and Post Status Checker. With its RGB LED and Addressable LED headers, this motherboard offers customization options to suit various aesthetic preferences. Overall, the ASRock B850M Steel Legend WiFi AMD Motherboard is a feature-rich, reliable, and powerful solution for gamers, enthusiasts, and content creators seeking high-speed connectivity and superior durability.
