| Basic Information | ||
| Supported CPU | - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors | |
| Chipset | - AMD X870 | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm | |
| Memory | ||
| Number of Memory Slots | - 4 x DDR5 DIMM Slots | |
| Channel Supported | - Dual Channel DDR5 Memory Technology | |
| Maximum Memory | - Max. capacity of system memory: 256GB | |
| Supported Memory | - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) | |
| Graphics | ||
| Graphics | Integrated AMD RDNA graphics | |
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| Storage | ||
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software |
|
| Wireless | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio |
|
| BIOS | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
|
| Ports & Connectors | ||
| HDMI | - 1 x HDMI Port |
|
| USB Ports | - 2 x USB4 Type-C Ports (40 Gb/s)* - 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.) - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.) - 4 x USB 2.0 Ports |
|
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio |
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
|

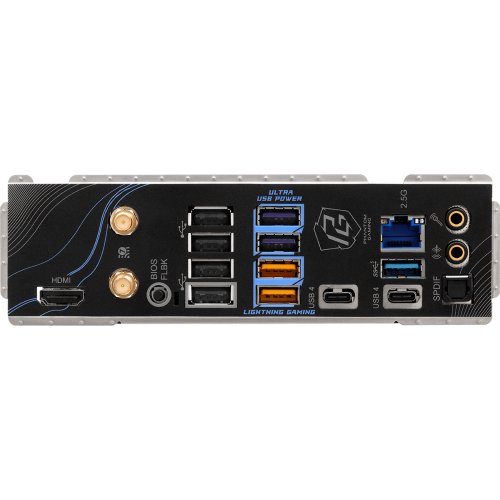

| Internal I/O Ports | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.) - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.) - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
|
| Others | ||
| Wireless Communication module | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
|
| Special feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming - Killer 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
|
| Warranty | ||
| Warranty | 3 Years | |

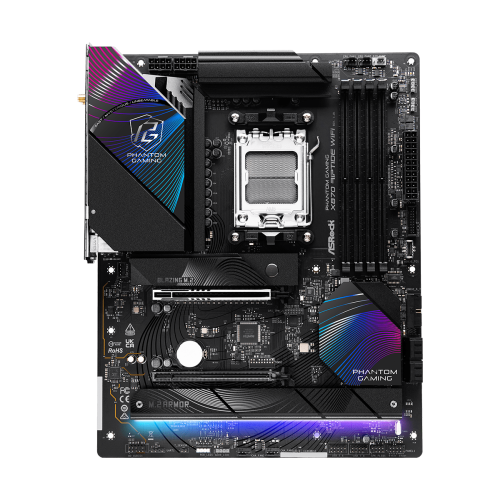

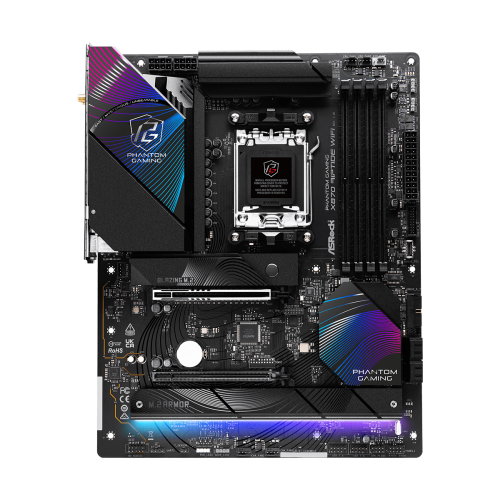

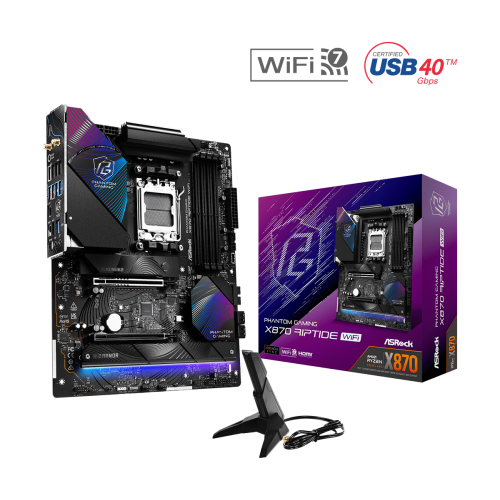

The ASRock X870 Riptide WiFi is a high-performance ATX motherboard designed for AMD's latest AM5 CPUs. It provides great power delivery and enhanced connectivity for gamers and creators alike. Its sturdy 14+2+1 power phase design, combined with 80A Dr.MOS, ensures stable overclocking and consistent performance for Ryzen 7000, 8000, and 9000 series CPUs. The board supports up to 256GB of DDR5 memory at rates greater than 8000MHz, offering ample capacity for demanding workloads. It supports PCIe 5.0 and 4.0 slots for next-generation GPUs and SSDs, as well as several M.2 slots for high-speed storage. Wi-Fi 7, 2.5Gb Ethernet, and Bluetooth are pre-installed. It also provides a variety of I/O choices, including USB4 Type-C, HDMI 2.1, and several high-speed USB ports. With its elegant design, long-lasting components, and cutting-edge technology, the ASRock X870 Riptide WiFi is an excellent choice for anyone looking for a future-ready and performance-oriented AMD system. ASROCK X870 Riptide WiFi AMD AM5 DDR5 ATX Motherboard comes with 3 Years Warranty.
