| Basic Information | ||
| Input Voltage | 110V – 240V AC | |
| Input Frequency | 50Hz – 60Hz (Standard AC Input) | |
| PFC | Active PFC (APFC) | |
| Efficiency | 80 Plus Bronze Certified | |
| Protection | OVP, UVP, OCP, OPP, SCP, OTP, PWR_OK | |
| Output Power | 650 Watts (Continuous) | |
| Maximum Power | 650 Watts | |
| Modular Type | Non-Modular (Flat Black Cables) | |
| Certification | 80 PLUS Bronze | |
| Fans | 120mm Hydraulic Bearing Fan | |
| Others | MTBF: 100,000 hours | Operating Temperature: 0 to 50°C | Compliance: ATX | |
| Connectors | ||
| Main Power | 1 x 20+4 Pin | |
| CPU | 2 x EPS 4+4 Pin | |
| PCI-E | 2 x PCIe 6+2 Pin | |
| SATA | 6 x SATA | |
| Molex | 4 x PATA / Molex | |
| Physical Specification | ||
| Dimensions | 150 mm (W) x 86 mm (H) x 140 mm (D) | |
| Color | Black | |
| Material | SECC Steel / Standard Metal Casing | |
| Warrnty Information | ||
| Warranty | 5 Years Warranty | |

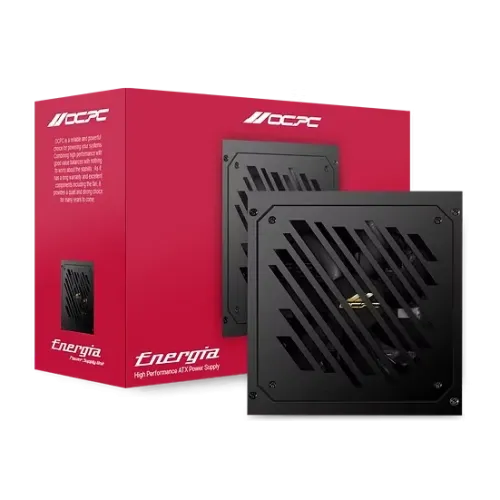

The OCPC ENERGIA BZ650 is a 650W ATX power supply certified for 80+ Bronze efficiency, delivering up to 85% power efficiency while reducing heat and wasted energy for reliable gaming PC and office desktop performance. This non-modular PSU features active power factor correction (APFC), a single +12V rail design, and comprehensive safety protections including OVP, UVP, OCP, OPP, SCP, and OTP for comprehensive component security. Cooling is handled by a 120mm hydraulic bearing fan with flat black cables that maintain optimal airflow and quiet operation during demanding workloads. The ENERGY BZ650 supports versatile connectivity with 1×20+4 pin main, 2×EPS 4+4 pin CPU, 2×PCIe 6+2 pin, 6×SATA, and 4×PATA connectors compatible with modern motherboards, GPUs, and storage devices. It operates within 0–50°C temperature range, accepts 110–240V AC input, measures 150×86×140mm, and boasts 100,000 hours MTBF for long-term durability. OCPC includes a 5-year manufacturer warranty for this 650W Bronze PSU.
