| Basic Information | ||
| Input Voltage | 110V - 240V AC | |
| Input Current | Active PFC auto-sensing (Uniquely specified by input rating) | |
| Input Frequency | 50Hz - 60Hz | |
| PFC | Active PFC (APFC) | |
| Efficiency | 80 Plus Gold Certified (Up to 90% efficiency under standard loads) | |
| Protection | Comprehensive Protection: OVP, UVP, OCP, OPP, SCP, OTP, and PWR_OK | |
| Output Power | 750 Watts (Continuous) | |
| Maximum Power | 750 Watts | |
| Modular Type | Full Modular | |
| Certification | 80 Plus Gold, ATX 3.1 Ready | |
| Fans | 140mm Hydraulic Bearing Fan (Quiet Cooling) | |
| Others | MTBF: 100,000 Hours; Cable Type: Flat Black Cables; Operating Temp: 0 to 50°C | |
| Connectors | ||
| Main Power | 1 x 20+4 Pin (ATX Main Power Cable) | |
| CPU | 2 x 4+4 Pin (CPU Power Cables) | |
| PCI-E | 1 x Native 16-pin GPU Power Connector (ATX 3.1) / 3 x 6+2 Pin PCIe Layout | |
| SATA | 8 x SATA Connectors | |
| Molex | 4 x PATA (Molex) Connectors | |
| Floppy | 4 x PATA/Floppy-compatible peripheral interfaces | |
| Physical Specification | ||
| Dimensions | 150mm (W) x 86mm (H) x 160mm (D) | |
| Weight | Standard ATX weight class (~1.8 - 2.2 kg depending on complete modular cable set) | |
| Color | Black & Gold | |
| Material | Heavy-duty SPCC Steel casing | |
| Warrnty Information | ||
| Warranty | 10 Years Manufacturing Warranty | |

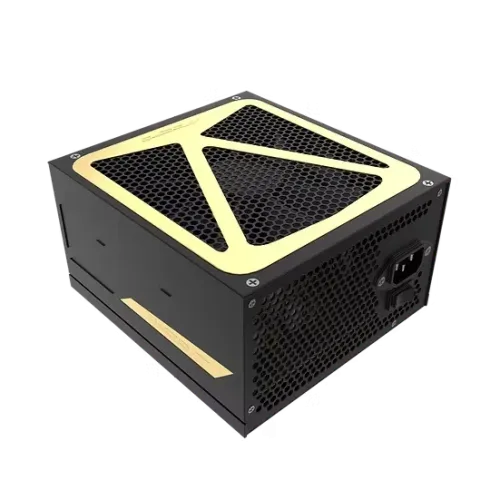

The OCPC ENERGIA GD750M delivers 750W continuous power with 80+ Gold efficiency certification, ensuring minimal energy waste and cooler operation under varying loads for gaming and workstation PCs. This full-modular ATX power supply features a silent 140mm hydraulic bearing fan that maintains optimal temperatures from 0–50°C while achieving MTBF reliability of 100,000 hours. Built with APFC technology for smooth 110–240V AC input, it includes comprehensive protection against OVP, UVP, OCP, OTP, OPP, SCP, and PWR_OK failures. The unit provides a 20+4 pin main connector, two 4+4 pin CPU, three 6+2 pin PCIe, eight SATA, and four PATA connectors with flat black cables for clean builds. Dimensions measure 160×150×86mm, and OCPC backs this PSU with a 10-year manufacturing warranty for long-term peace of mind.
