| Basic Information | ||
| Input Voltage | 200 – 240 VAC | |
| Input Current | 5.5A Max | |
| Input Frequency | 50 – 60 Hz | |
| PFC | Active PFC (APFC) | |
| Efficiency | Up to 89.61% at typical load (~88% baseline efficiency) | |
| Protection | OVP, OPP, SCP, OCP, UVP, OTP | |
| Output Power | 750 Watts | |
| Maximum Power | 750 Watts | |
| Modular Type | Non-Modular | |
| Certification | 80 PLUS Bronze (Also officially certified by Cybenetics & PPLP) | |
| Fans | 140 mm Hydraulic Bearing (FDB) Silent Fan | |
| Others | ATX 3.1 & PCIe 5.1 Ready; High-quality Taiwanese Teapo electrolytic capacitors (rated at 105°C); Embossed flexible flat cables; Regulatory: EAC, CE, FCC, UKCA, RoHS | |
| Connectors | ||
| Main Power | 1x 20+4 Pin Main Power Connector (570mm) | |
| CPU | 2x 4+4 Pin EPS/ATX 12V Connectors | |
| PCI-E | 3x PCI-E 8-Pin (6+2) + 1x Native PCIe 12V-2x6 (12+4 Pin, 600W) | |
| SATA | 4x SATA Connectors | |
| Molex | 2x 4-Pin Peripheral (Molex) Connectors | |
| Physical Specification | ||
| Dimensions | 145 mm x 150 mm x 86 mm (Standard ATX Form Factor) | |
| Weight | Approximately 1.8 – 2.0 kg | |
| Color | Black (Chassis and fixed embossed cables) | |
| Material | SECC Steel Chassis Housing | |
| Warrnty Information | ||
| Warranty | 5 Years Manufacturing Warranty | |

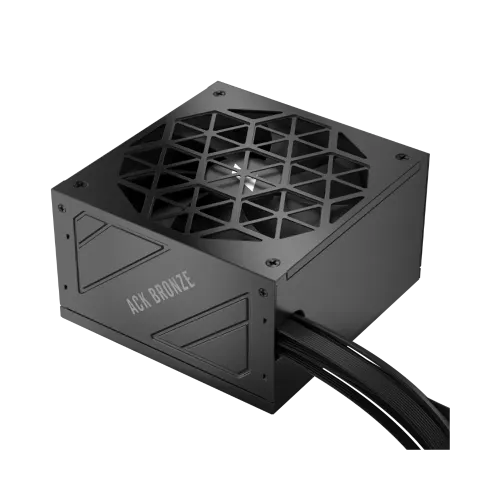

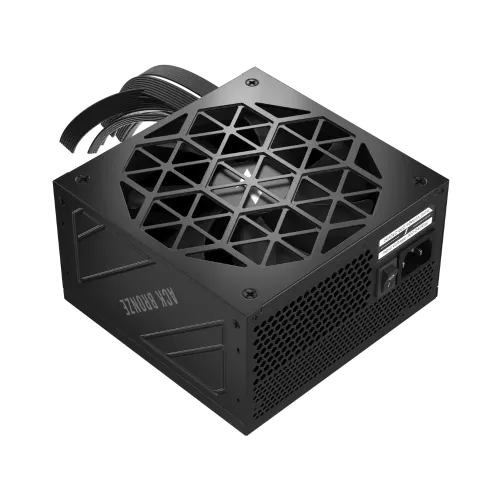

The 1STPLAYER ACK Bronze 750W 80 Plus Bronze Power Supply is a high-performance, non-modular ATX gaming PSU designed for stable power delivery. Built on the modern ATX12V 3.1 standard, this 750-watt power supply safely supports next-generation mid-to-high-end graphics cards with its native PCIe 5.1 12V-2x6 connector, alongside two 4+4 pin CPU, three 6+2 pin PCIe, four SATA, and two Molex connectors. It carries an official 80 PLUS Bronze certification, guaranteeing up to 88% energy efficiency under typical loads while running smoothly on a 200–240V input range with Active Power Factor Correction (APFC). Internal temperatures are managed by a silent 140mm hydraulic bearing cooling fan. For structural reliability, the unit utilizes premium Taiwanese Teapo bulk capacitors rated at 105°C and features comprehensive industrial protections, including OVP, OPP, SCP, OCP, OTP, and UVP safeguards. This product is backed by a 5-year manufacturing warranty.
