| Basic Information | ||
| Input Voltage | 200V-240VAC | |
| Input Current | 6.3A | |
| Input Frequency | 50Hz | |
| Modular Type | Non-Modular | |
| Certification | 80 PLUS BRONZE Certified | |
| Others | 120mm Silent Fan FLAT Cable Industrial grade protections: OPP/OVP/UVP/SCP Thermal Manager - An advanced fan control for optimal heat & noise management. Active Power Factor Correction (APFC) | |
| Connectors | ||
| Main Power | 1 x 24-pin Main Connector | |
| CPU | 1 x 8(4+4)pin EPS 12V | |
| PCI-E | 2 x 8(6+2) Pin PCI-E | |
| SATA | 5 x SATA | |
| Molex | 3 x Molex | |
| Warrnty Information | ||
| Warranty | 6 Years | |

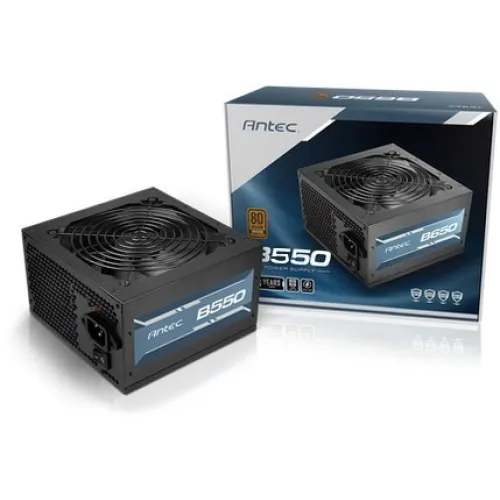

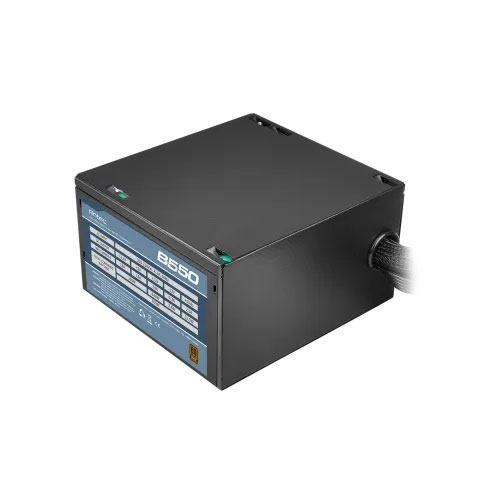

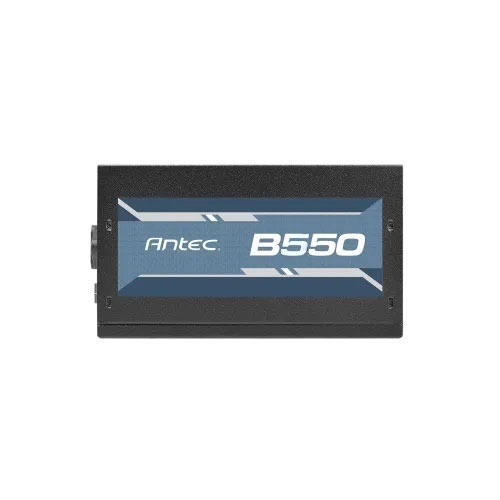

The Antec B Series B550 is a 550W non-modular ATX power supply certified with 80+ Bronze efficiency, delivering reliable performance for mid-range PC builds and general computing systems. It features active PFC (>0.9 typical) for improved energy efficiency during both max and low loads, ensuring stable power delivery. The unit includes a 120mm silent fan for effective cooling with low noise operation. Input specifications cover 200V-240VAC at 50Hz frequency with 6.3A current. Connector configuration includes 1x 24-pin main, 1x 8(4+4)pin EPS 12V CPU, 2x 8(6+2)pin PCI-E for graphics cards, 5x SATA for storage, and 3x Molex connectors. Protection features encompass UVP, OVP, SCP, OPP, and NLO for comprehensive system safety. The power good signal ranges 100-500ms with typically 85% efficiency. Dimensions measure 140×150×86mm with net weight 1.78kg. This B Series PSU includes a 11-month warranty coverage.
