| Basic Information | ||
| Input Voltage | 100-240Vac (Universal, auto-switching) | |
| Input Current | 15-7.5A | |
| Input Frequency | 5-60Hz | |
| PFC | Active PFC | |
| Efficiency | 90.62% at full load (Certified by 80 PLUS & Cybenetics) | |
| Protection | UVP, OVP, OPP, SCP, OCP, OTP (Operating Temp: 0-40 degree) | |
| Output Power | 1300W | |
| Modular Type | Full Modular | |
| Certification | 80 PLUS Platinum, Cybenetics Platinum, Cybenetics Standard+ (Noise) | |
| Fans | 120mm Fluid Dynamic Bearing (FDB) Fan with Zero RPM semi-passive mode | |
| Others | LLC Resonant + DC-to-DC circuit structure; 100% Japanese 105 degree electrolytic capacitors; MTBF: 100000Hours | |
| Connectors | ||
| Main Power | 1*(610mm length) | |
| CPU | 2*(650mm lenth) | |
| PCI-E | ATX 3.1 and PCIe 5.1 Compatibility | |
| Physical Specification | ||
| Dimensions | 140 x 150 x 86 mm | |
| Color | Black | |
| Warrnty Information | ||
| Warranty | 10 years | |

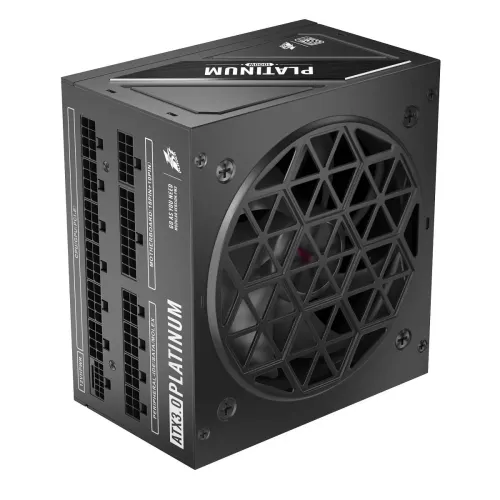

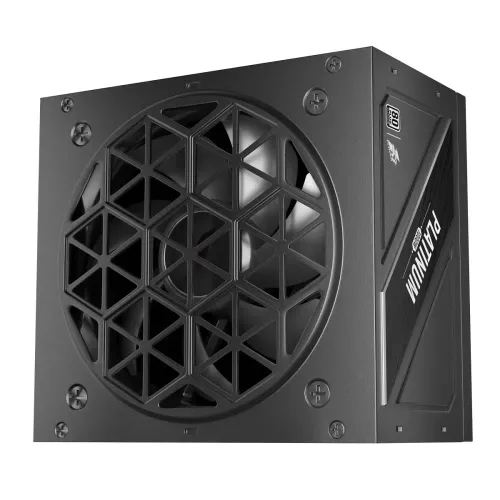

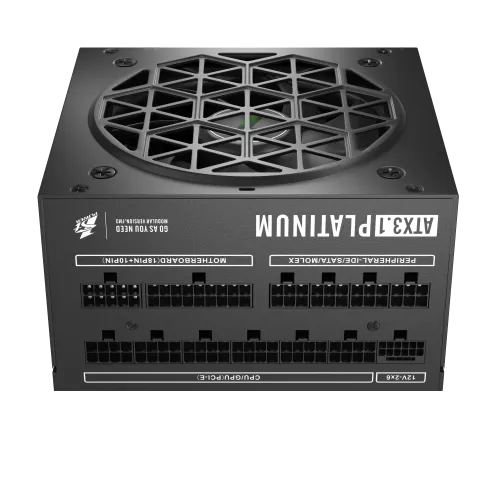

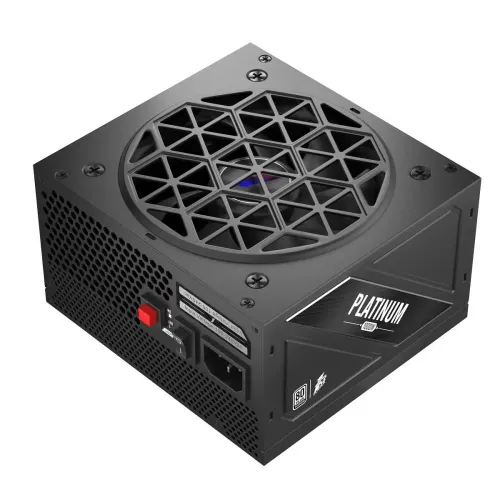

The 1STPLAYER NGDP ATX 3.1 PLATINUM 1300W Full Modular Power Supply is a high-efficiency ATX 3.1 PSU designed for next-gen gaming rigs and professional workstations requiring extreme power. It delivers 1300W total output with 80 PLUS Platinum certification, achieving up to 90.62% efficiency at full load while using full Japanese electrolytic capacitors for superior reliability and longevity. This power supply fully complies with ATX 3.1 and PCIe 5.1 standards, featuring a dedicated 12V-2x6 (12VHPWR) modular cable that supports up to 600W for modern graphics cards, plus 2x total power excursion and 3x GPU power excursion for future-ready component compatibility. Its compact ATX form factor measures 140 × 150 × 86 mm, equipped with a 120mm FDB fan for quiet 0dBA operation within 50% load. The unit includes comprehensive protections: UVP, OVP, OPP, SCP, OCP, OTP, and lightning protection, with MTBF rating of 100,000 hours. Circuit structure uses LLC + DC-DC with active PFC. The 1STPLAYER NGDP comes with a 10-year manufacturing warranty, ensuring long-term peace of mind for high-performance multi-GPU setups and overclocked systems.
