| Basic Information | ||
| Input Voltage | 100V – 240V | |
| Input Current | 12A Max | |
| Input Frequency | 50Hz – 60Hz | |
| PFC | Active PFC (Power Factor Correction) | |
| Efficiency | Up to 88% efficiency (80 PLUS Bronze Certified) | |
| Protection | CircuitShield™ Suite: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO | |
| Output Power | 650W (Continuous Power) | |
| Maximum Power | 650W | |
| Modular Type | Non-Modular | |
| Certification | 80 PLUS Bronze | |
| Fans | 1 x 120mm Silent Fan | |
| Others | Power Good Signal: 100–500ms; ATX 12V 2.52 standard; Regulatory: cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES / BIS | |
| Connectors | ||
| Main Power | 1 x 24(20+4) pin Motherboard | |
| CPU | 2 x 8(4+4) pin EPS 12V | |
| PCI-E | 2 x 8(6+2) pin PCI-E | |
| SATA | 6 x SATA | |
| Molex | 3 x Molex | |
| Physical Specification | ||
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Weight | Net Weight: 1.70 kg | Gross Weight: 1.90 kg | |
| Color | Black | |
| Material | Industrial-grade Steel Housing with Flat Black Cables | |
| Warrnty Information | ||
| Warranty | 5 Year | |

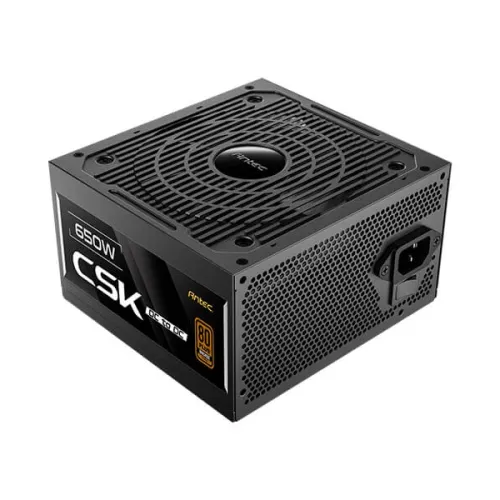

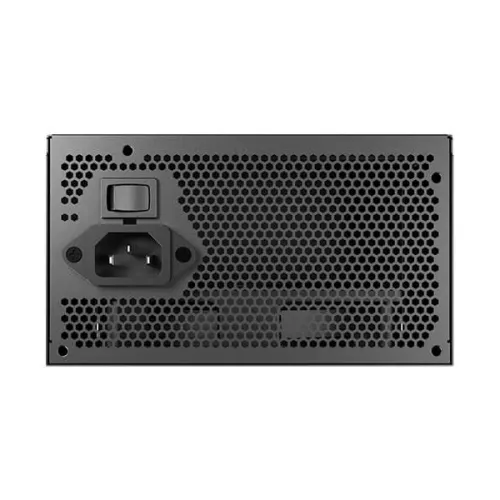

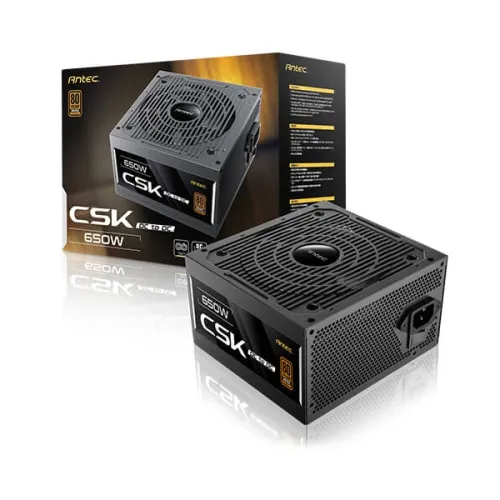

The Antec CSK 650DC 650W 80+ Bronze Non-Modular Power Supply meets ATX 12V 2.52 specifications, delivering consistent 650W continuous power for mid-range ATX builds with single-GPU configurations. It features DC-to-DC architecture with 80 PLUS BRONZE certification, ensuring lower energy loss and higher efficiency up to 88% while Active PFC maintains cooler, quieter system operation. The unit includes a 120mm silent fan for quiet settings and operates across 100V-240V input voltage with 50Hz-60Hz frequency range and 12A max input current. Protection features encompass OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO with CircuitShield™ industrial-grade safeguards. Connector options include 1×24(20+4)pin MB, 6×SATA, 2×8(6+2)pin PCI-E, and 3×Molex. Antec provides a solid 5-year warranty on this CSK DC series power supply.
