| Basic Information | ||
| Input Voltage | 200V-230VAC | |
| Input Current | 6.3A | |
| Input Frequency | 50Hz | |
| Output Power | 650W | |
| Modular Type | Non-Modular | |
| Certification | 80 PLUS BRONZE Certified | |
| Others | 120mm Silent Fan FLAT Cable Industrial grade protections: OPP/OVP/UVP/SCP Thermal Manager - An advanced fan control for optimal heat & noise management. Active Power Factor Correction (APFC) | |
| Connectors | ||
| Main Power | 1 x 24-pin Main Connector | |
| CPU | 1 x 8(4+4)pin CPU | |
| PCI-E | 2 x 8(6+2) Pin PCI-E | |
| SATA | 5 x SATA | |
| Molex | 3 x Molex | |
| Warrnty Information | ||
| Warranty | 6 Years | |

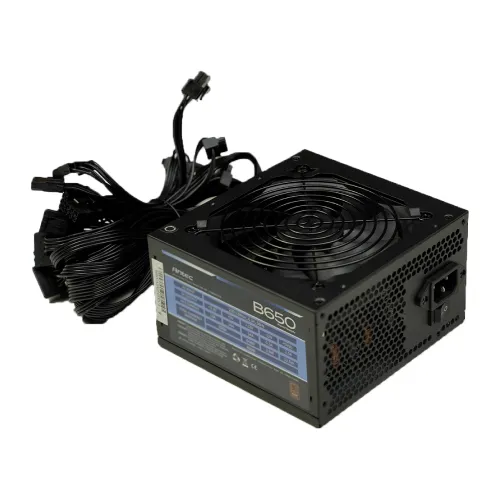

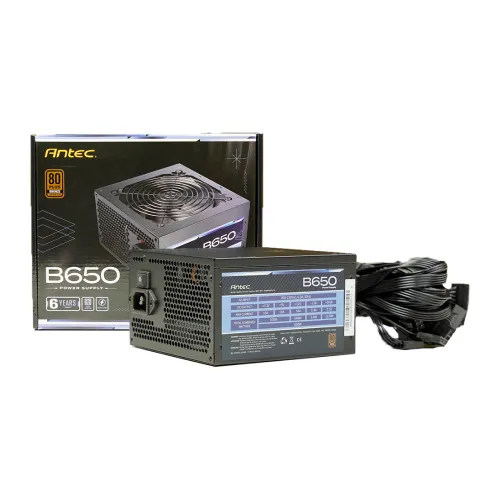

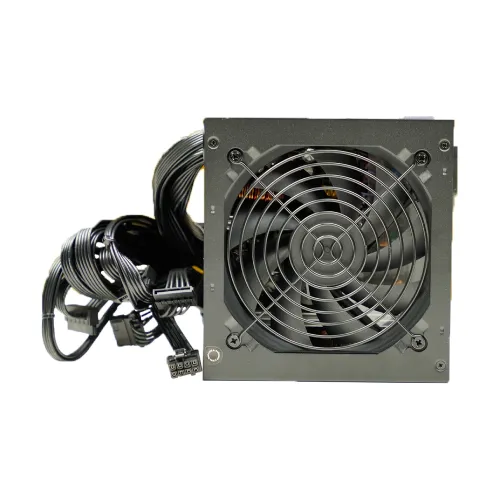

The Antec B Series B650 650W delivers reliable ATX power with 80 Plus Bronze certification, ensuring 85%+ efficiency to reduce wasted energy and lower electricity costs. This non-modular power supply features Active Power Factor Correction (APFC) and a 120mm silent fan with Thermal Manager for optimal heat and noise control. It includes comprehensive CircuitShield™ industrial-grade protections: OPP (Over Power Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), and SCP (Short Circuit Protection). Connector configuration provides 1x 24-pin ATX, 1x 8(4+4)-pin EPS12V, 2x 8(6+2)-pin PCI-E for graphics cards, 5x SATA for storage, and 3x Molex connectors. Flat cables enable easy routing and cleaner builds. The unit complies with ATX 24-pin and ATX 12V standards, operates on 100-240V input voltage at 50-60Hz, and measures 140×150×86mm. Antec provides a 6-year limited warranty covering both parts and labor, making this 650W PSU an efficient budget choice for gaming and general computing systems.
