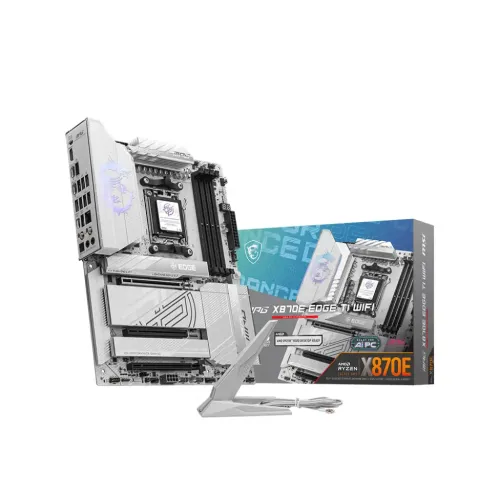

-500x500.png "MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard")

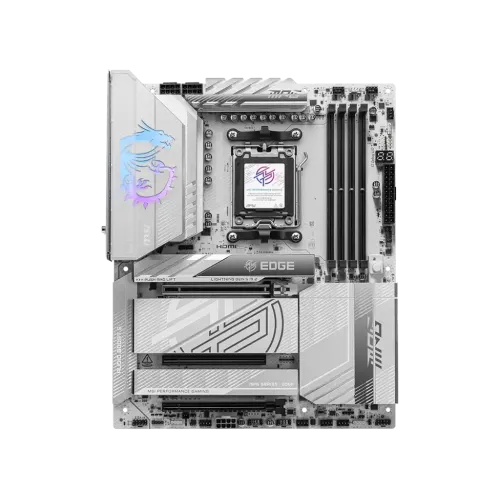

-500x500.png "MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard")

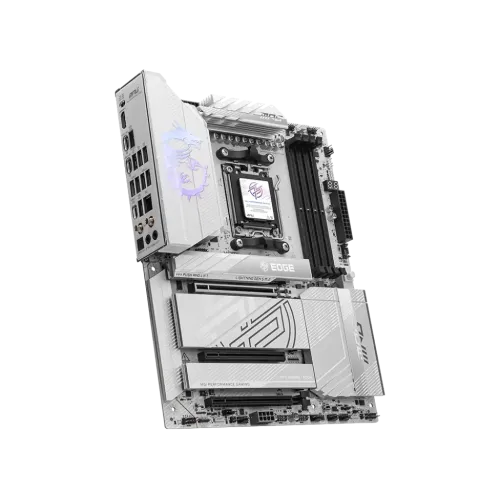

-500x500.png "MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard")

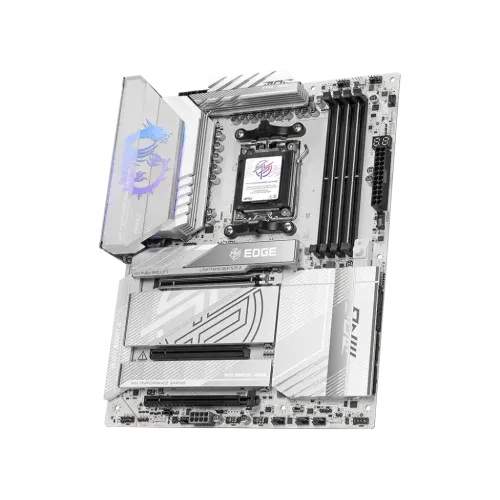

-500x500.png "MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard")
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD X870E | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Memory | ||
| Number of Memory Slots | 4 DIMMs | |
| Channel Supported | ||
| Maximum Memory | 256GB | |
| Supported Memory | Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8400+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz |
|
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices |
|
| Storage | ||
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G M.2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors. |
|
| Network | ||
| LAN | ||
| Wireless | ||
| Audio | ||
| Audio | 1x Front Audio (JAUD) |
|
| BIOS | ||
| BIOS | ||
| Ports & Connectors | ||
| HDMI | 1x HDMI | |

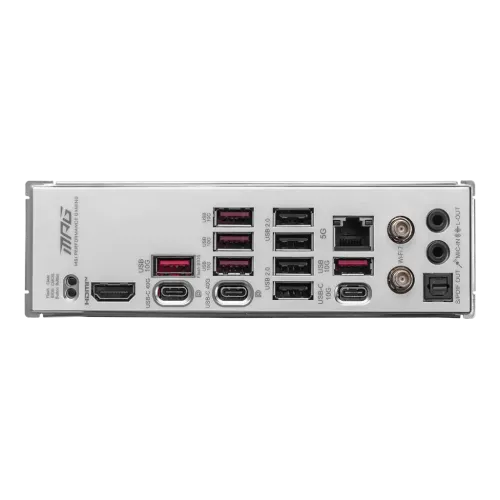

| USB Ports | USB Type-C 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| DVI-D (s) | ||
| Display Port | 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 2x Type-C DisplayPort |
|
| Audio | 1x Front Audio (JAUD) |
|
| RAID | Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Others | ||
| Bundled Software | ||
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Special feature | 4x EZ Debug LED 1x EZ Digi-Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
The MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard is ideal for gamers and PC enthusiasts because to its luxury design, powerful performance, and modern connections. It uses the AMD X870E chipset and AM5 socket to enable the latest AMD Ryzen 9000 and 8000 series CPUs, which give exceptional speed and efficiency. This motherboard supports DDR5 memory, PCIe 5.0 slots, and several M.2 Gen5 connectors with sophisticated heatsinks, resulting in lightning-fast data transfer and flawless multitasking. It features WiFi 7 and 2.5G LAN for next-generation networking, ensuring robust and ultra-fast connectivity. The sturdy power supply system, high-quality components, and extended cooling design assure consistent performance even under severe gaming or productivity loads. With multiple USB 4.0 and USB 3.2 Gen 2x2 connections, immersive audio, and configurable RGB lighting, the MPG X870E EDGE TI WIFI provides the ideal balance of performance, style, and future-ready capabilities for demanding users. The MSI MPG X870E EDGE TI WIFI AM5 ATX Motherboard comes with 3 years warranty.
