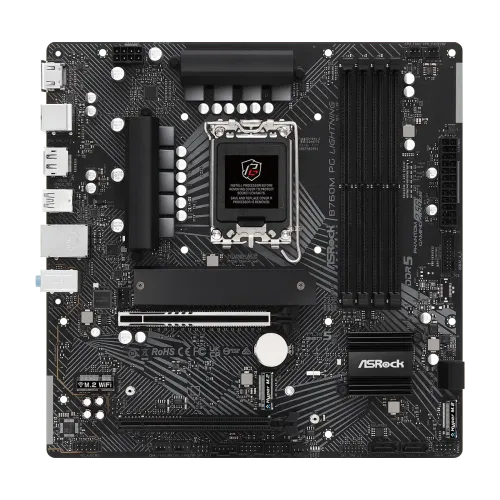

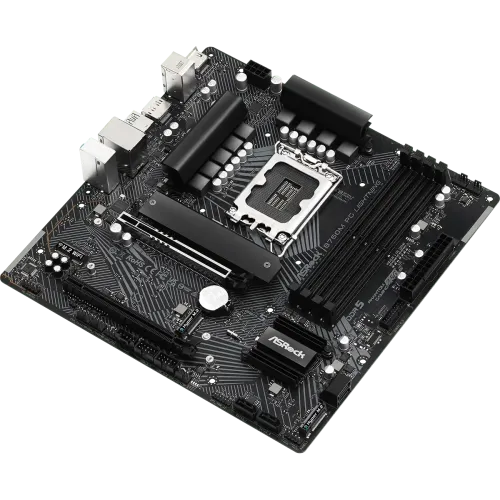

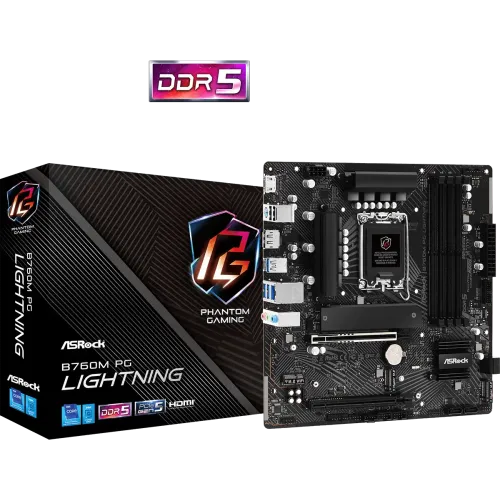

-500x500.png "ASRock B760M PG Lightning DDR5 Micro ATX Motherboard")
-500x500.png "ASRock B760M PG Lightning DDR5 Micro ATX Motherboard")
-500x500.png "ASRock B760M PG Lightning DDR5 Micro ATX Motherboard")
| Basic Information | ||
| Supported CPU | 14th, 13th & 12th Gen Intel Core Processors (LGA1700) | |
| Chipset | Intel B760 |
|
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots |
|
| Channel Supported | DDR5 |
|
| Maximum Memory | 256GB |
|
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Supports Intel® Extreme Memory Profile (XMP) 3.0 |
|
| Graphics | ||
| Graphics | Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
| Expansion Slots | ||
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire M.2 Socket 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
|
| Storage | ||
| Supported Storage | CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
|
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI |
|
| USB Ports | 1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) |
|
| Display Port | 1 x DisplayPort 1.4 | |
| Audio | 1 x Front Panel Audio Connector HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
|
| Internal I/O Ports | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
|
| Special feature | Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer |
|
| Warranty | ||
| Warranty | 3 years | |
The ASRock B760M PG Lightning DDR5 Micro ATX Motherboard is a high-performance, feature-rich board that supports Intel's 12th, 13th, and 14th generation processors with the LGA 1700 socket. It is based on the Intel B760 chipset and provides an excellent blend of performance, connection, and cost. It supports the latest DDR5 memory at rates of up to 7200+ MHz (OC), resulting in faster data transfer and enhanced system responsiveness, making it perfect for gaming and multitasking. The motherboard includes a strong 10+1+1 power phase design, which ensures consistent power delivery for demanding CPUs. It has PCIe 5.0 x16 and PCIe 4.0 extension slots to accommodate current GPUs and storage devices, as well as dual M.2 slots for ultra-fast NVMe SSDs. The connectivity choices include 2.5G LAN, several USB 3.2 Gen2 connections, and high-quality Nahimic Audio for immersive sound. The board's sleek black PCB with silver accents creates a clean, modern design that is appropriate for any construction. Additionally, ASRock's Polychrome RGB provides programmable lighting to improve visual attractiveness. With dependable build quality, efficient cooling features, and broad compatibility, the ASRock B760M PG Lightning DDR5 is a wonderful choice for gamers and creators looking for a compact yet powerful motherboard for their next-generation Intel setup. ASRock B760M PG Lightning DDR5 Micro ATX Motherboard comes with 3 Years Warranty.
