| Basic Information | ||
| Supported CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors | |
| Chipset | AMD B850 | |
| Form Factor | Mini-ITX Form Factor, 17 cm x 17 cm | |
| Memory | ||
| Number of Memory Slots | 4 x DIMM slots | |
| Channel Supported | DDR5 | |
| Maximum Memory | Up to 192GB | |
| Supported Memory | Dual Channel DDR5, AMD EXPO™ & Intel® XMP Memory Module Support | |
| Graphics | ||
| Graphics | Integrated graphics support with AMD Ryzen™ processors (Depends on CPU model) |
|
| Max Shared Memory | Up to 16GB |
|
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express 5.0 x16 slot 2 x M.2 connectors (PCIe 5.0/4.0 NVMe SSD support) |
|
| Storage | ||
| Supported Storage | M.2 NVMe PCIe Gen5/Gen4 SSDs, SATA 6Gb/s HDDs & SSDs | |
| Network | ||
| LAN | 1 x 2.5GbE LAN port |
|
| Wireless | Integrated Wi-Fi 6E + Bluetooth 5.3 | |
| Audio | ||
| Audio | 5 x Audio Jacks (rear) |
|
| BIOS | ||
| BIOS | UEFI AMI BIOS, 128 Mb Flash ROM | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI 2.1 port | |
| USB Ports | 2 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2x2 Type-C 4 x USB 2.0 ports |
|
| Display Port | 1 x DisplayPort 1.4 | |
| Audio | 1 x Front Panel Audio Header |
|
| RAID | RAID 0, RAID 1, RAID 10 supported (NVMe/SATA depending on CPU & chipset) | |
| TPM (Trusted Platform Module ) | Supports TPM 2.0 | |
| Internal I/O Ports | 1 x 24-pin ATX Main Power Connector 1 x 8-pin CPU Power Connector 4 x SATA 6Gb/s ports 1 x Front USB 3.2 Gen1 Header 1 x Front USB 2.0 Header 1 x Front Panel Audio Header |
|
| Others | ||
| Bundled Software | GIGABYTE Control Center RGB Fusion Norton Internet Security (trial) |
|
| Wireless Communication module | Integrated Wi-Fi 6E + Bluetooth 5.3 | |
| Special feature | X3D Turbo Mode for AMD Ryzen™ X3D CPUs Digital Twin 8+2+1 Phases VRM Solution WIFI EZ-Plug design for easy antenna installation Smart Fan 6 cooling technology |
|
| Warranty | ||
| Warranty | 3 years | |

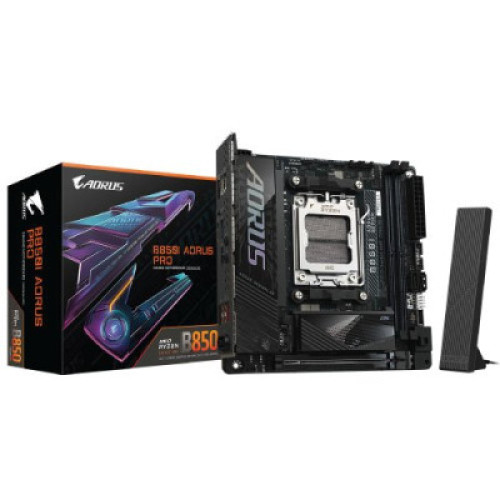

The GIGABYTE B850I AORUS PRO ITX DDR5 AMD Motherboard is a compact yet powerful solution for small-form-factor PC builds without compromising performance. Built on the AMD B850 chipset with an AM5 socket, it supports the latest AMD Ryzen processors and DDR5 memory, delivering faster speeds and improved efficiency for gaming and multitasking. Despite its Mini-ITX form factor, it includes premium features such as PCIe 5.0 for next-gen graphics cards and NVMe SSDs, high-speed USB 3.2 Gen2x2 Type-C connectivity, and robust networking with WiFi and 2.5GbE LAN. Advanced thermal solutions, including efficient heatsinks and optimized airflow design, ensure stable performance even in compact cases. With its sleek AORUS design, durable components, and reliable power delivery, the B850I AORUS PRO ITX is an excellent choice for gamers and enthusiasts who want a powerful and stylish mini-PC build. The GIGABYTE B850I AORUS PRO ITX Motherboard comes with 3 years warranty.
