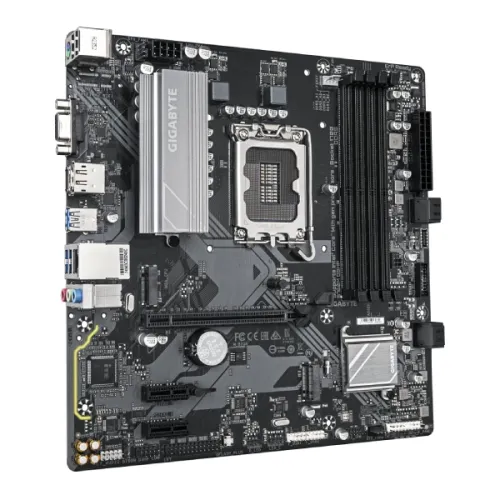

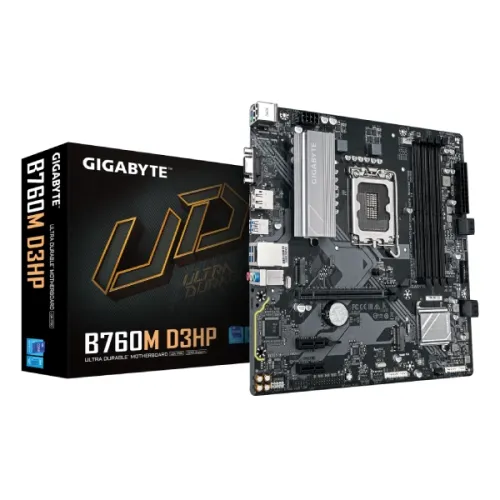

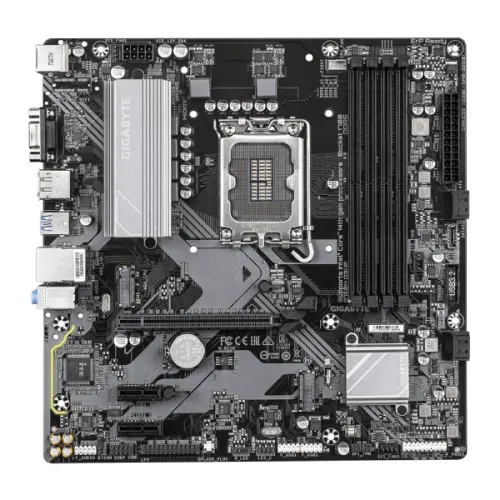

-500x500.png "GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard")
-500x500.png "GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard")
-500x500.png "GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard")
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel B760 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|
| Memory | ||
| Number of Memory Slots | 4 | |
| Channel Supported | DDR5 |
|
| Maximum Memory | Supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Supported Memory | Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
|
| Storage | ||
| Supported Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Network | ||
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
|
| Wireless | ||
| Audio | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| BIOS | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI port | |
| USB Ports | Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| DVI-D (s) | ||
| Display Port | 1 x DisplayPort | |
| Audio | 3 x audio jacks | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |

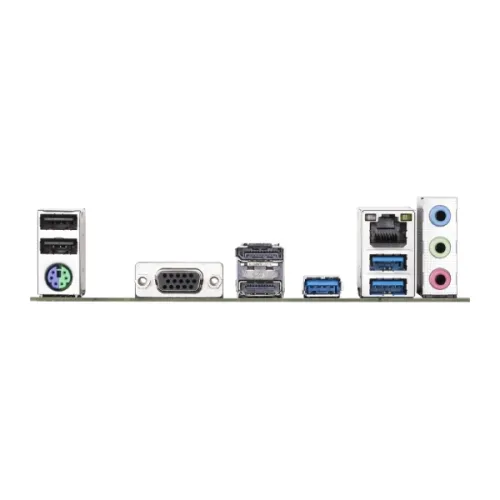

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Wireless Communication module | ||
| Special feature | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Warranty | ||
| Warranty | 3 Years | |
The purpose of the GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard is to provide users with a dependable and effective base for constructing a contemporary PC. With support for Intel 12th, 13th, and 14th Gen Core CPUs, it offers powerful performance for productivity, gaming, and video production. With support for DDR5 memory, it provides faster data handling and more seamless multitasking than DDR4 thanks to its greater rates and enhanced bandwidth. The motherboard is perfect for professionals and gamers that require speed and responsiveness because it has M.2 NVMe connectors for incredibly fast SSD storage and PCIe 4.0 ports for high-performance graphics cards. Without sacrificing necessary functions, its small Micro ATX form factor makes it an excellent choice for modest setups. Even under demanding workloads, stability and lifespan are guaranteed by its sturdy construction, sophisticated power supply, and effective cooling solutions. The GIGABYTE B760M D3HP DDR5 is a wise choice for a flexible PC construction since it achieves the ideal combination between performance, dependability, and cost. GIGABYTE B760M D3HP DDR5 Micro ATX Motherboard comes with 3 years warranty.
