| Basic Information | ||
| Input Voltage | 230V AC (Operating range roughly 200V - 240V) | |
| Input Frequency | 50Hz - 60Hz | |
| PFC | Active PFC | |
| Efficiency | +82% Efficiency | |
| Protection | OPP (Over Power), OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit) | |
| Output Power | 550W (Real stable output) | |
| Maximum Power | 550 Watts | |
| Modular Type | Non-Modular | |
| Certification | ATX12V, CE, RoHS | |
| Fans | 120mm silent cooling fan (Noise level: 14dB) with punched grilles | |
| Others | Single +12V Rail design, Unique DC-to-DC circuit design with Solid Capacitors, SMD Technology with A-Grade components, extra-long flat black cables | |
| Connectors | ||
| Main Power | 1 x P24 (20+4 Pin) | |
| CPU | 1 x P4+4 (4+4 Pin) | |
| PCI-E | 2 x P6+2 (6+2 Pin) | |
| SATA | 4 x SATA | |
| Molex | 2 x IDE (Molex) | |
| Physical Specification | ||
| Dimensions | Standard ATX Form Factor (Approx. 150 x 140 x 86 mm) | |
| Color | Black (Note: There is also a full white variant called the "Neo Q550W") | |
| Material | SECC Steel casing | |
| Warrnty Information | ||
| Warranty | 3 Years | |

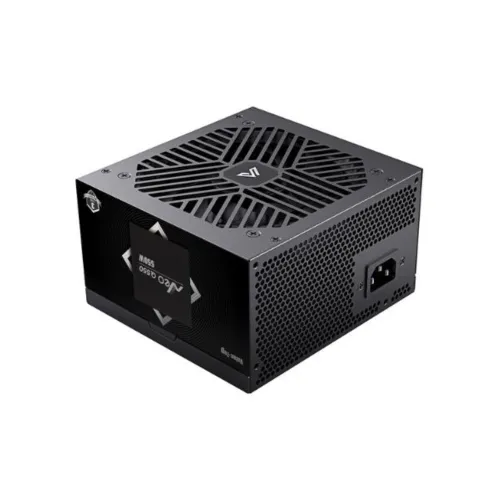

The Value‑Top Neo Q550 is a 550W ATX non‑modular power supply with active PFC and an efficiency of approximately 82%, designed for stable mid‑range PC builds and light gaming systems. It uses a single +12V rail, DC‑to‑DC topology with solid capacitors and A‑grade SMD components, and includes protections for OPP, OVP, UVP and SCP to safeguard components. The unit accepts 230V AC input, is cooled by a quiet 120mm fan (noise ~14dB), and carries ATX12V, CE and RoHS certifications. Cabling is fixed (non‑modular) and provides P24 ATX x1, P4+4 (CPU) x1, P6+2 (PCIe) x2, SATA x4 and IDE x2 with extra‑long flat cables for easier routing. Dimensions and build note indicate standard ATX form factor and a compact footprint suitable for most mid‑tower cases, and the PSU is backed by a 3‑year manufacturer warranty.
