| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors (Series 2), LGA 1851 | |
| Chipset | INTEL B860 | |
| Form Factor | ATX (243.84mmx304.8mm) | |
| Memory | ||
| Number of Memory Slots | 4 |
|
| Channel Supported | ||
| Maximum Memory | Maximum Memory Capacity 256GB | |
| Supported Memory | 4x DDR5 UDIMM, Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
|
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) 3x M.2 |
|
| Storage | ||
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
|
| Network | ||
| LAN | Realtek 8126 5Gbps LAN | |
| Wireless | Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) |
|
| BIOS | ||
| BIOS | ||

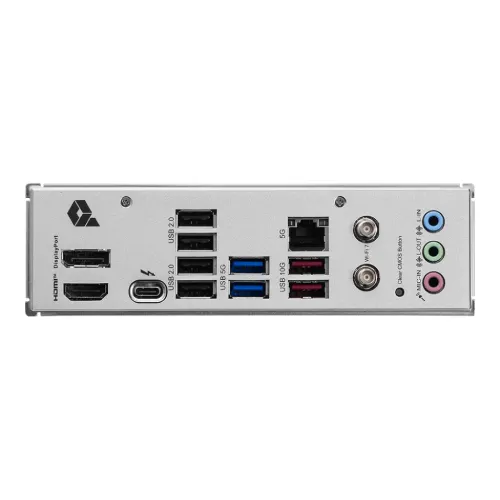

| Ports & Connectors | ||
| HDMI | 1x HDMI 2.1 |
|
| USB Ports | USB Type-C 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| DVI-D (s) | ||
| Display Port | 1x DisplayPort, 1x Type-C DisplayPort | |
| Audio | ||
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Others | ||
| Bundled Software | ||
| Wireless Communication module | ||
| Special feature | ||
| Warranty | ||
| Warranty | 3 years | |

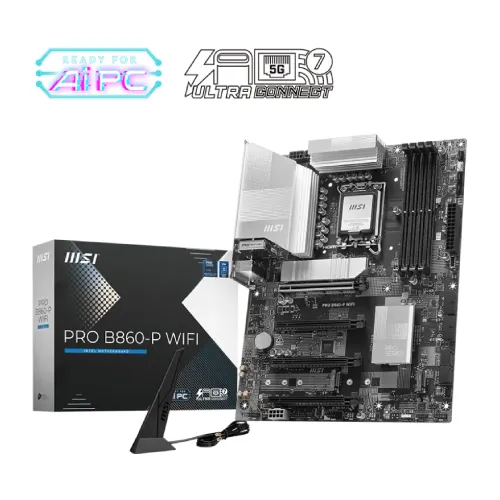

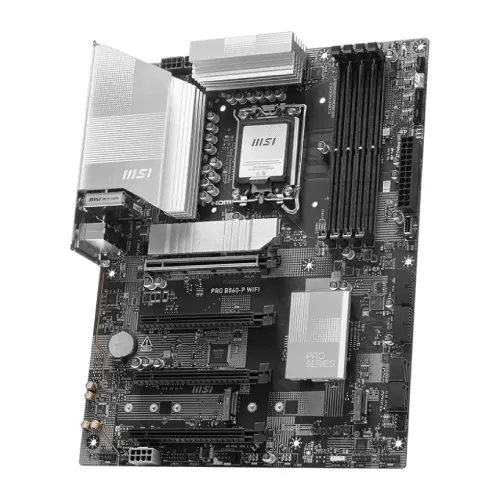

The MSI PRO B860-P WIFI DDR5 LGA 1851 ATX Motherboard is intended for professionals and enthusiasts seeking consistent performance, dependable connectivity, and sophisticated features for contemporary Intel processors. It is based on the Intel B860 chipset and supports the latest 14th and 13th generations of Intel Core, Pentium, and Celeron CPUs with the LGA 1851 socket. It supports DDR5 memory, which provides increased bandwidth and efficiency, making it perfect for multitasking, productivity, and demanding applications. The motherboard combines WiFi and Bluetooth for seamless wireless performance, as well as a 2.5G LAN connection for high-speed wired networking. It also has several PCIe slots, including PCIe 5.0 support for next-generation graphics cards, and M.2 slots with heatsinks for ultra-fast NVMe SSD storage. The increased power delivery system and extended heatsink design ensure steady performance even under heavy load, while MSI's proprietary technologies such as Core Boost, Memory Boost, and Audio Boost improve overall efficiency, speed, and immersive sound. The MSI PRO B860-P WIFI DDR5 LGA 1851 ATX Motherboard, with its extensive I/O options, including USB Type-C and multiple high-speed USB ports, is an excellent choice for designing a dependable workplace or gaming PC that combines performance with future-ready technology.
