| Basic Information | ||
| Input Voltage | 200V - 230VAC | |
| Input Current | 4A Max | |
| Input Frequency | 50Hz | |
| PFC | Active PFC (Power Factor Correction) | |
| Efficiency | 80 Plus Gold Certified (Up to 90% efficiency at typical loads) | |
| Protection | CircuitShield™ Industrial-grade Protection: OCP, OVP, UVP, SCP, OPP, OTP, NLO | |
| Output Power | 750W Continuous Output | |
| Maximum Power | 750W | |
| Modular Type | Semi-Modular | |
| Certification | 80 Plus Gold, Regulatory: CB / CE / BIS | |
| Fans | 120mm Silent Fan with Thermal Manager regulation | |
| Others | Power Good Signal: 100-150ms; DC-to-DC module design; Flat black cables | |
| Connectors | ||
| Main Power | 1 x 24(20+4) pin Motherboard connector | |
| CPU | 2 x 8(4+4) pin EPS 12V connectors | |
| PCI-E | 4 x 8(6+2) pin PCI-E connectors | |
| SATA | 8 x SATA connectors | |
| Molex | 3 x Molex connectors | |
| Physical Specification | ||
| Dimensions | Standard ATX Form Factor (Approx. 140 x 150 x 86 mm) | |
| Weight | ~1.37 kg (Net PSU weight body range) | |
| Color | Black | |
| Material | SECC Steel Body Construction | |
| Warrnty Information | ||
| Warranty | 6 Years Manufacturing Warranty | |

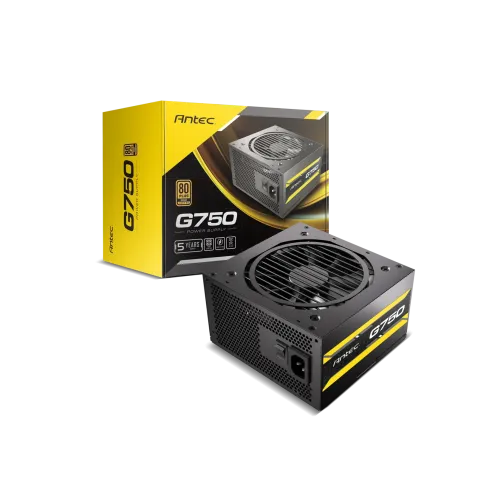

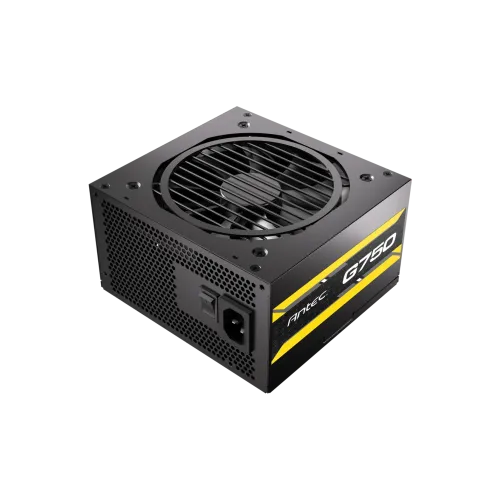

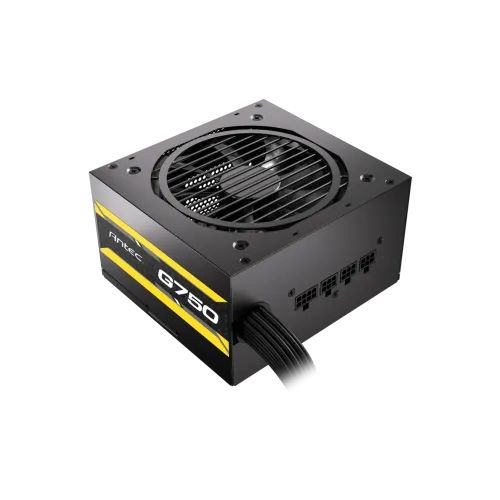

The Antec G750 delivers 750W continuous power with 80 PLUS Gold certification, achieving up to 92% energy efficiency for reduced heat and electricity consumption. This semi-modular PSU features flat cables for easier cable routing, improved airflow, and a clutter-free case, alongside DC-to-Dconversion architecture that enhances voltage stability. Equipped with a 120mm FDB silent fan and Thermal Manager function, it ensures quiet operation with superior cooling. Antec's CircuitShield™ provides industrial-grade protection against OCP, OVP, UVP, OPP, SCP, OTP, and NLO, safeguarding your components. The unit includes Active PFC for efficient power delivery, complies with ATX 12V 2.53, and operates on 200–230VAC at 50Hz for global use. Connectors include 1×24(20+4)-pin motherboard, 2×8(4+4)-pin EPS CPU, 4×8(6+2)-pin PCI-E GPU, 8×SATA, and 3×Molex. Certified CB/CE/BIS, it carries a 6-year manufacturing warranty for long-term reliability.
