| Memory Specifications | ||
| Memory Size | 8GB | |
| Memory Type | GDDR6 | |
| Core Clock | 2550 MHz (Reference card: 2535 MHz) | |
| Memory Clock | 18 Gbps | |
| Bus Type | 128 bit | |
| Memory Interface | PCI-E 4.0 | |
| CUDA Cores | 4352 | |
| Resolution | 7680 x 4320 | |
| Output | ||
| Display Port | DisplayPort 1.4a x 2 | |
| HDMI | HDMI 2.1a x2 | |
| Maximum Display Support | 4 Displays | |
| Power Specifications | ||
| Recommended PSU | 500W | |
| Power Connector | 8 pin x 1 | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | L=272 W=115 H=41 mm | |
| Fans | Triple | |
| Warranty | ||
| Warranty | 2 Year Warranty | |

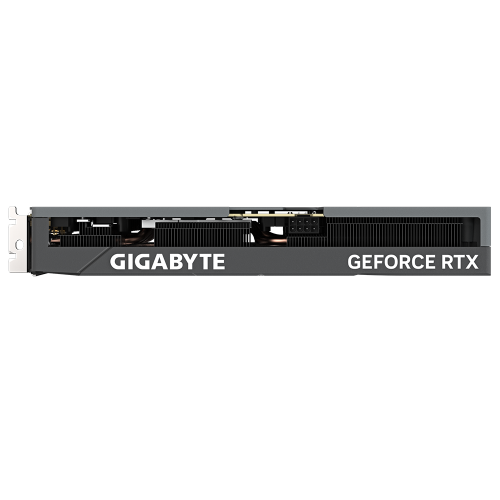

The GIGABYTE GeForce RTX 4060 Ti EAGLE OC 8G 8GB GDDR6 Graphics Card The WINDFORCE cooling system features three 80-mm unique blade fans that alternate spinning, three composite copper heat pipes that directly touch the GPU, 3D active fans, and Screen cooling, which together provide high-efficiency heat dissipation. Reduce the turbulence of adjacent fans and increase airflow pressure. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low-load or low-power game. The airflow is spewed by the triangular fan edge and guided smoothly through the 3D stripe curve on the fan surface. Graphene nanolubricant can extend the life of a sleeve bearing fan by 2.1 times, close to the life of a double ball bearing, and is quieter. The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling. An extended heatsink allows air to pass through, providing better heat dissipation. The back plate not only provides an aesthetic shape but also enhances the structure of the graphics card to provide complete protection. The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will give you a quieter experience. Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, a 2oz copper PCB, and lower RDS (on) MOSFETs, plus over-temperature design, deliver superior performance and longer system life. A fully automated production process ensures top-quality circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build. The GIGABYTE GeForce RTX 4060 Ti Eagle OC 8GB GDDR6 Graphics Card has a 2-year warranty.
