| Memory Specifications | ||
| Memory Size | 12 GB | |
| Memory Type | GDDR7 | |
| Core Clock | 2325 MHz (Base) | |
| Boost Clock | 2542 MHz (Factory Overclocked from the standard 2512 MHz) | |
| Memory Clock | 28 Gbps (Effective) | |
| Bus Type | PCI Express 5.0 x16 | |
| Memory Interface | 192-bit | |
| CUDA Cores | 6144 | |
| Resolution | Maximum digital resolution up to 7680 x 4320 (8K) @ 165Hz with DSC | |
| Others | NVIDIA Blackwell Architecture, DLSS 4 support, NVIDIA SFF-Ready | |
| Output | ||
| Display Port | 3 x DisplayPort 2.1b (UHBR20) | |
| HDMI | 1 x HDMI 2.1b (Supports 4K 120Hz HDR, 8K @ 60Hz HDR, VRR) | |
| HDCP Support | Yes (Version 2.3) | |
| Maximum Display Support | 4 (Quad Display) | |
| Power Specifications | ||
| Recommended PSU | 650 W | |
| Power Connector | 1 x 12V-2x6 PCIe Gen 5 power input (Includes 2x 8-pin to 16-pin adapter) | |
| Power Consumption | 250 W (TDP) | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | Microsoft DirectX 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 241.5 mm x 120.1 mm x 40.6 mm (9.5 in x 4.7 in x 1.6 in) | |
| Slot Size | 2-slot | |
| Weight | ~0.95 kg to 1.1 kg (Box weight / shipping package sits at roughly 2.05 Kg) | |
| Fans | Dual-fan layout (IceStorm 2.0 cooling system with BladeLink Fans and FREEZE Fan Stop) | |
| Warranty | ||
| Warranty | 5 Years total (3-year standard manufacturer warranty + 2 years extended upon registration) | |

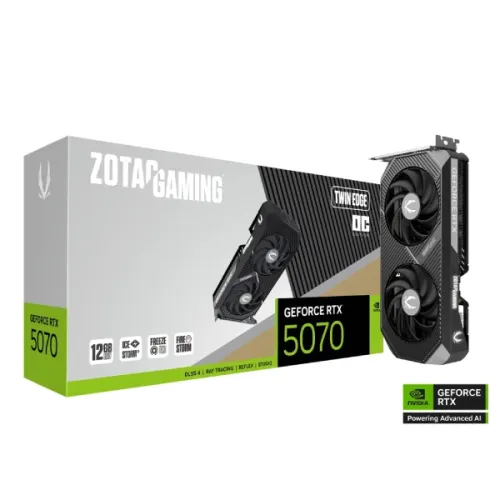

The ZOTAC GAMING GeForce RTX 5070 Twin Edge OC 12GB GDDR7 is a compact, NVIDIA SFF-ready enthusiast graphics card powered by the cutting-edge NVIDIA Blackwell architecture with 6,144 CUDA cores and DLSS 4 support. This overclocked dual-fan GPU features a boost clock of 2,542 MHz, 12GB of 192-bit GDDR7 video memory running at 28 Gbps, and PCI Express 5.0 x16 interface for next-generation data transmission speeds. The IceStorm 2.0 cooling system with BladeLink Fans and FREEZE Fan Stop ensures optimal temperature control during gaming and AI workloads while maintaining a compact 241.5mm x 120.1mm x 40.6mm dual-slot form factor. Display outputs include 3× DisplayPort 2.1b (up to 4K 480Hz or 8K 165Hz with DSC) and 1× HDMI 2.1b (supporting 4K 120Hz HDR, 8K 60Hz HDR), with HDCP 2.3 compatibility and quad-display capability. Power consumption is 250W with a 12v-2x6 connector, requiring a 650W recommended PSU, while supporting Microsoft DirectX 12 Ultimate and OpenGL 4.6 on Windows 10/11. ZOTAC provides a standard 3-year GPU warranty, extendable to 5 years with product registration.
