| Basic Information | ||
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold, and Celeron® Processors 1 Processor socket LGA1700 |
|
| Chipset | Intel B660 Chipset | |
| Form Factor | M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| Memory | ||
| Number of Memory Slots | 4 x DIMM | |
| Channel Supported | DDR4 | |
| Maximum Memory | 128GB | |
| Supported Memory | 4x DDR4 memory slots, supporting up to 128GB1 Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCIe x16 slot PCI_E1 (From CPU) Supports up to PCIe 4.0 x16 2x PCIe x1 slots PCI_E2 & PCI_E3 (Fom B660 chipset) Supports up to PCIe 3.0 |
|
| Storage | ||
| Supported Storage | 4x SATA 6Gb/s ports (From B660 chipset) 1 1x M.2 slot (Key M) M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices |
|
| Network | ||
| LAN | 1x Realtek RTL8111H 1Gbps LAN controller | |
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| BIOS | ||
| BIOS | BIOS FEATURES 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language |
|

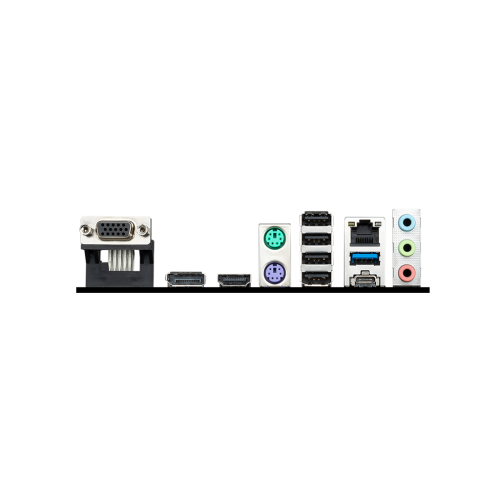

| Ports & Connectors | ||
| HDMI | 1x HDMI 1.4 port | |
| USB Ports | 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports |
|
| DVI-D (s) | 1x VGA port | |
| Display Port | 1x DisplayPort 1.4 port | |
| Audio | Audio Connectors | |
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Internal I/O Ports | INTERNAL USB CONNECTORS 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports |
|
| Others | ||
| Special feature | 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 Year Warranty | |
The MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard delivers an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. Supports 12th and 13th generation Intel® CoreTM, Pentium® Gold, and Celeron® processors for the LGA 1700 socket. Supports DDR4 memory up to 4600+ (OC) MHz. Core Boost: With premium layout and digital power design to support more cores and provide better performance, Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2. Audio Boost: Reward your ears with studio-grade sound quality. Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability, and strength The MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard has a 3-year Warranty.
