| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard | |
| Chipset | AMD B650 |
|
| Form Factor | M-ATX 244mm x 235 mm |
|
| Memory | ||
| Number of Memory Slots | 2 | |
| Channel Supported | ||
| Maximum Memory | 48 GB | |
| Supported Memory | - Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology |
|
| Graphics | ||
| Graphics | ||
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | 1 PCIe 4.0 x16 slot 1 PCIe 4.0 x4 slot |
|
| Storage | ||
| Supported Storage | 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| Network | ||
| LAN | RTL8111K Gigabit Ethernet Card |
|
| Wireless | ||
| Audio | ||
| Audio | Realtek ALC897 high fidelity decoding chip, supporting 5.1 channels |
|
| BIOS | ||
| BIOS | 256M UEFI, support multiple languages |
|
| Ports & Connectors | ||
| HDMI | -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution |
|
| USB Ports | -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A |
|
| DVI-D (s) | ||
| Display Port | ||
| Audio | -3×Audio interfaces (audio input/output/microphone) -1×Front audio pin |
|
| RAID | 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices | |
| TPM (Trusted Platform Module ) | ||

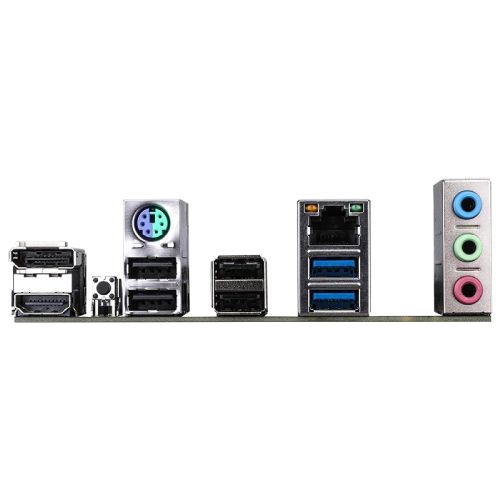

| Internal I/O Ports | Rear I/O: -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×PS/2 interface -1×Gigabit network interface -1×BIOS update button -3×Audio interfaces (audio input/output/microphone) On board : -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×CPU fan pin -2×System fan pins -1×Water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×COM port pin -1×Speaker pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
|
| Others | ||
| Bundled Software | ||
| Wireless Communication module | ||
| Special feature | ||
| Warranty | ||
| Warranty | 3 years warranty | |

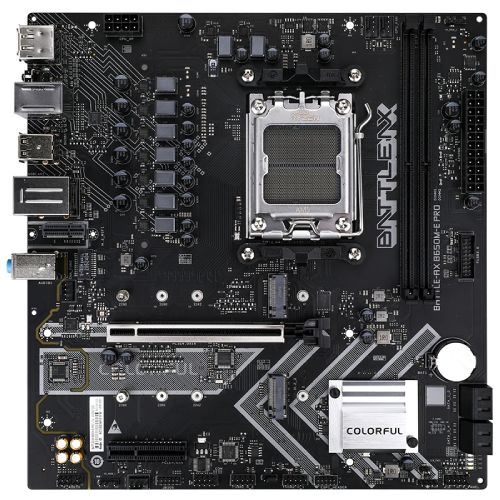

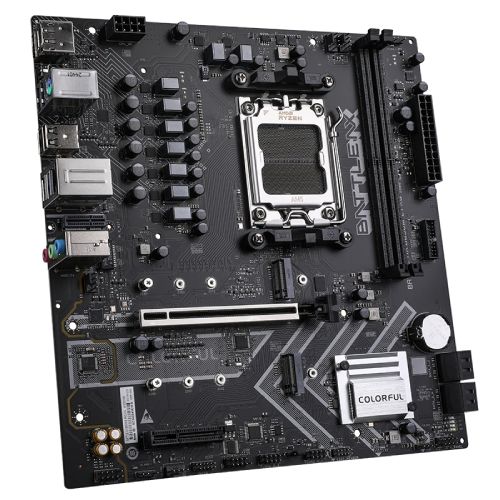

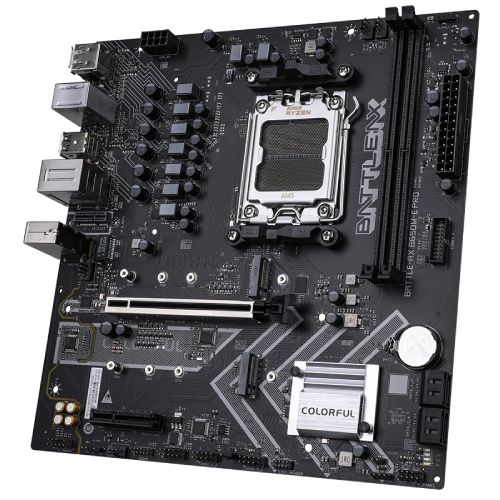

The colorful BATTLE-AX B650M-E PRO V14 AM5 M-ATX Motherboard is powered by the AMD B650 chipset and supports the latest AMD Ryzen 7000, 8000, and 9000 series CPUs on the AM5 socket. This colorful BATTLE-AX B650M-E PRO V14 AM5 M-ATX motherboard has two DDR5 memory slots that allow for up to 96GB of RAM at speeds of up to DDR5-7600 (OC) and compatibility with XMP and EXPO memory profiles, allowing for optimal overclocking and rapid data processing. This Colorful motherboard provides storage flexibility with two M.2 slots that enable PCIe 4.0 x4 NVMe SSDs and four SATA 6Gb/s connectors. It also supports RAID 0, RAID 1, and RAID 10 configurations for both SATA and NVMe SSDs, ensuring fast storage performance and data security. The colorful BATTLE-AX B650M-E PRO V14 expansion card has one PCIe 4.0 x16 slot for graphics cards and one PCIe 4.0 x4 slot for additional gear. The back I/O panel includes 4 USB 2.0 ports, 2 USB 3.2 Gen 1 Type-A connections, HDMI 2.0 and DisplayPort 1.2 (both supporting 4K resolution), a PS/2 connector, Gigabit LAN, audio jacks, and a BIOS update button for simple firmware upgrades. This BATTLE-AX B650M-E PRO V14 Onboard headers kit has numerous fan connectors, a water pump header, ARGB lighting headers, and front panel audio connectors, making it suitable for both air and liquid cooling configurations with adjustable lighting. The Colorful BATTLE-AX B650M-E PRO V14 Motherboard is equipped with the Realtek ALC897 audio chip and gives 5.1 channel audio. The mATX design, measuring 244mm by 235mm. The colorful BATTLE-AX B650M-E PRO V14 AM5 2 DDR5 M-ATX Motherboard comes with 3 years warranty.
