| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard |
|
| Chipset | AMD B650 | |
| Form Factor | M-ATX 245mm x 245 mm |
|
| Memory | ||
| Number of Memory Slots | 2 x DIMM |
|
| Channel Supported | Supports dual channel memory technology | |
| Maximum Memory | up to 96 GB of memory (a single socket can support up to 48 GB of memory) |
|
| Supported Memory | Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory | |
| Expansion Slots | ||
| Expansion Slots | 1 PCIe 4.0 x16 slot 1 PCIe 4.0 x4 slot 2 M.2 slots - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| Storage | ||
| Supported Storage | 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| Network | ||
| LAN | 1×Gigabit network interface RTL8111K Gigabit Ethernet Card |
|
| Audio | ||
| Audio | Realtek ALC897 high fidelity decoding chip, supporting 5.1 channels |
|
| BIOS | ||
| BIOS | 256M UEFI, support multiple languages |
|

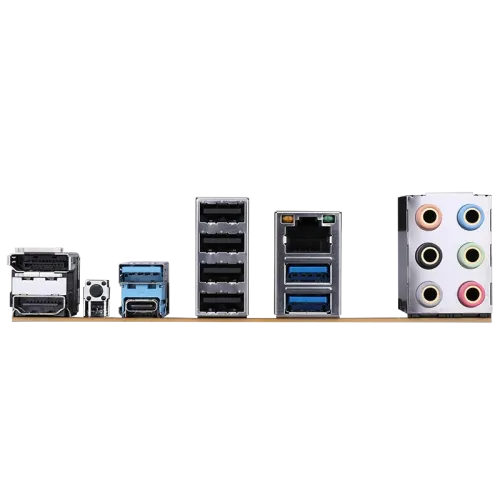

| Ports & Connectors | ||
| HDMI | 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution |
|
| USB Ports | 4×USB 2.0 interfaces 2×USB 3.2 Gen 1 5Gbps Type-A interfaces |
|
| Display Port | 1×DP 1.2 interface, supporting up to 4K 60Hz resolution |
|
| Audio | -3×Audio interfaces (audio input/output/microphone) -1×Front audio pin |
|
| RAID | supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices |
|
| Internal I/O Ports | -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×PS/2 interface -1×Gigabit network interface -1×BIOS update button -3×Audio interfaces (audio input/output/microphone) On board : -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×CPU fan pin -2×System fan pins -1×Water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×COM port pin -1×Speaker pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
|
| Warranty | ||
| Warranty | 3 years | |

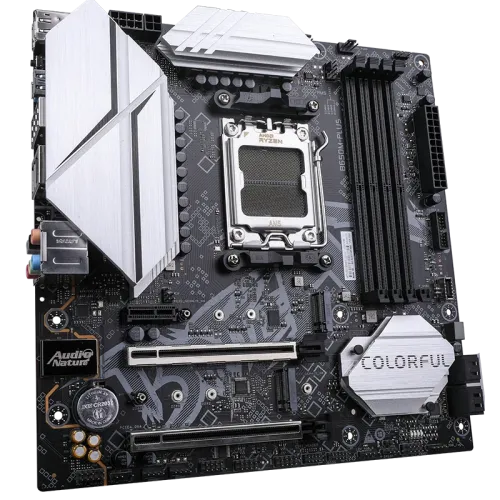

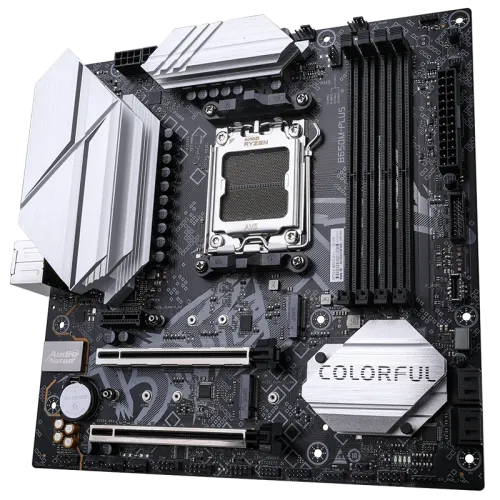

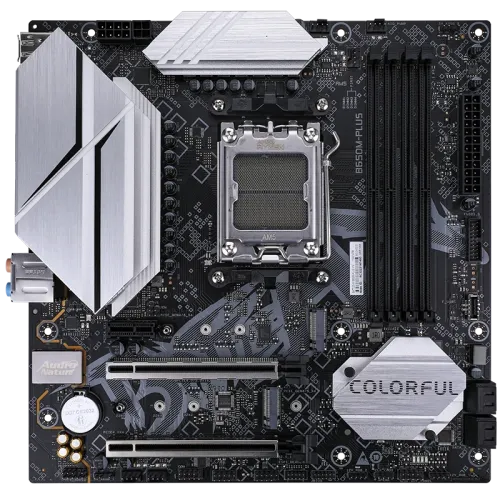

The Colorful BATTLE-AX B650M-PLUS V14 is a robust and well-equipped Micro-ATX motherboard tailored for AMD’s newest AM5 processors, delivering outstanding performance for gaming and productivity setups. It accommodates high-speed DDR5 memory for quicker load times and enhanced system responsiveness, as well as PCIe 5.0 and PCIe 4.0 expansion choices for upcoming graphics cards and storage solutions. Featuring dual M.2 NVMe slots, 2.5G LAN, and premium onboard audio, it offers speed and reliability for contemporary systems. The motherboard features several fan and RGB headers, enabling users to create a visually striking and well-cooled system. In summary, the BATTLE-AX B650M-PLUS V14 offers excellent performance, upgrade options, and robust build quality, making it an ideal option for mid-range to high-performance AMD systems. Colorful BATTLE-AX B650M-PLUS V14 AMD AM5 DDR5 M-ATX Motherboard comes with 3 years Warranty.
