| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard | |
| Chipset | AMD B850 | |
| Form Factor | M-ATX | |
| Memory | ||
| Number of Memory Slots | 2 | |
| Maximum Memory | Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory | |
| Supported Memory | Support up to 48 GB of memory | |
| Expansion Slots | ||
| Expansion Slots | 1×PCIe 4.0 x16 slot 1×PCIe 4.0 x4 slot |
|
| Storage | ||
| Supported Storage | - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| Network | ||
| LAN | RTL8111K 1000M LAN | |
| Wireless | AX200 WiFi 6 wireless network card | |
| Audio | ||
| Audio | Realtek ALC897 high fidelity decoding chip, supports up to 5.1 channels | |
| BIOS | ||
| BIOS | 256M UEFI, support multiple languages | |
| Ports & Connectors | ||
| HDMI | 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution | |
| USB Ports | -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces |
|
| Display Port | -1×DP 1.2 interface, supporting up to 4K 60Hz resolution | |
| RAID | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices | |

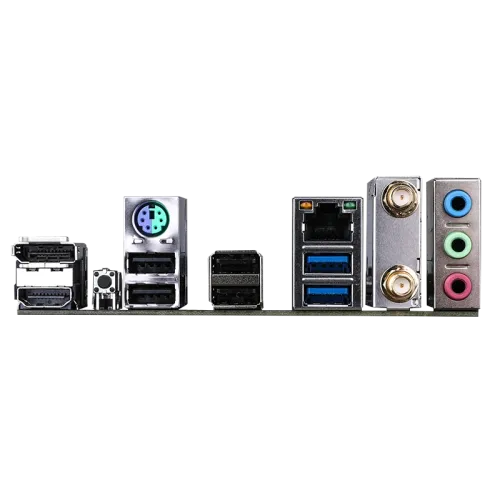

| Internal I/O Ports | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1个PS/2 interface -1×Gigabit network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board: -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×CPU fan pin -2×System fan pins -1×water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
|
| Others | ||
| Special feature | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| Warranty | ||
| Warranty | 3 Years | |

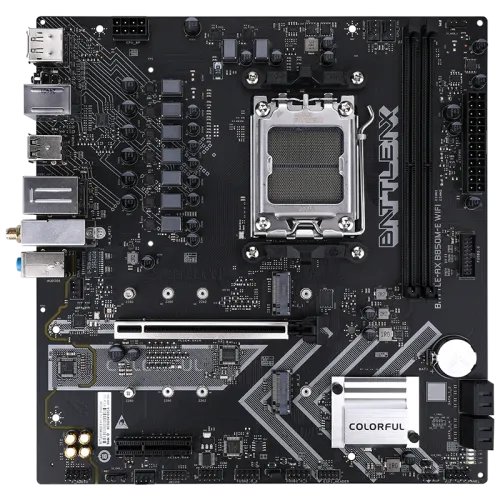

The Colorful BATTLE-AX B850M-E WIFI V14 is a compact yet capable Micro-ATX motherboard built around the AMD B850 chipset and designed for the AM5 socket. It supports the latest AMD Ryzen 7000, 8000, and even 9000-series processors, making it future-ready for high-performance builds. Memory-wise, it offers two DDR5 DIMM slots, supports up to 96 GB total (48 GB per slot), and overclocks up to DDR5-7600 (OC). Storage and expansion are well catered for with dual M.2 slots — one supporting blazing PCIe 5.0 x4, the other PCIe 4.0 x4 — alongside a full-length PCIe 4.0 x16 for a GPU. On the connectivity front, it includes integrated WiFi 6 and Bluetooth 5.2 via an Intel AX200 module, plus a Realtek Gigabit LAN chip for wired networking. A great value board for budget-conscious builders who want AM5 support and modern features in a Micro-ATX form factor.
