| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard | |
| Chipset | AMD B650 |
|
| Form Factor | M-ATX 245mm x 245 mm |
|
| Memory | ||
| Number of Memory Slots | 4 | |
| Maximum Memory | 48 GB | |
| Supported Memory | - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology - Supports dual channel memory technology |
|
| Expansion Slots | ||
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specifications) 1×PCIe 4.0 x1 slot |
|
| Storage | ||
| Supported Storage | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) |
|
| Network | ||
| LAN | RTL8125BG 2.5Gbit LAN, Bluetooth 5.2 | |
| Wireless | AX200 WiFi 6 wireless network card | |
| Audio | ||
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels | |
| BIOS | ||
| BIOS | 128M UEFI, support multiple languages |
|
| Ports & Connectors | ||
| HDMI | 1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution | |
| USB Ports | -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 2 Type-A interface -1×USB 3.2 Gen 1 Type-C interface -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C |
|
| Audio | -3×Audio interfaces (audio input/audio output/microphone) -1×Front audio pin |
|
| RAID | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices | |

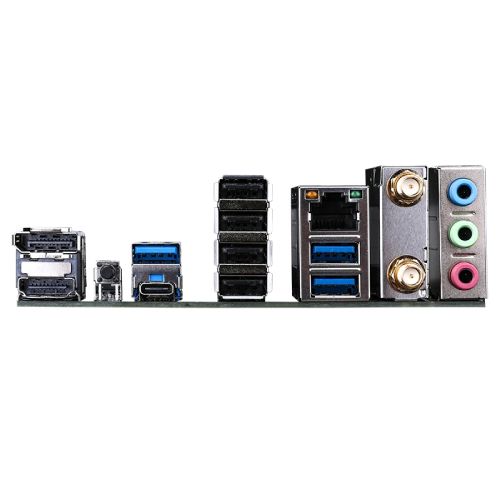

| Internal I/O Ports | -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 2 Type-A interface -1×USB 3.2 Gen 1 Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×2.5G network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board: -1×CPU fan pin -3×System fan pins -1×water cooling pump pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×POST card pin |
|
| Others | ||
| Wireless Communication module | AX200 WiFi 6 wireless network card | |
| Warranty | ||
| Warranty | 3 years warranty | |

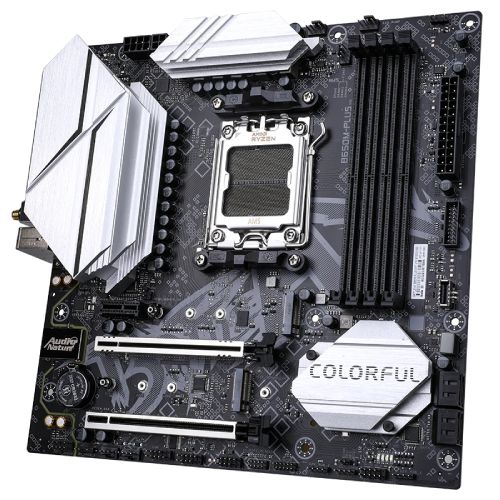

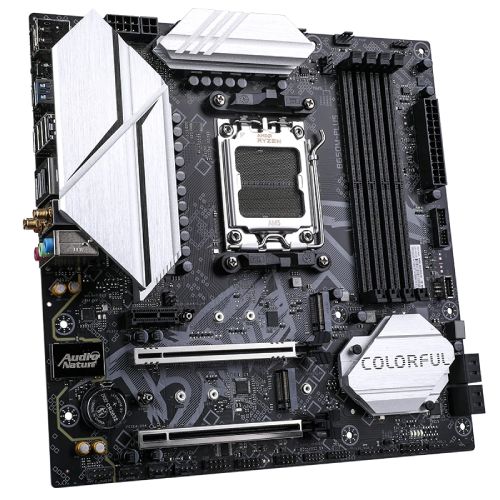

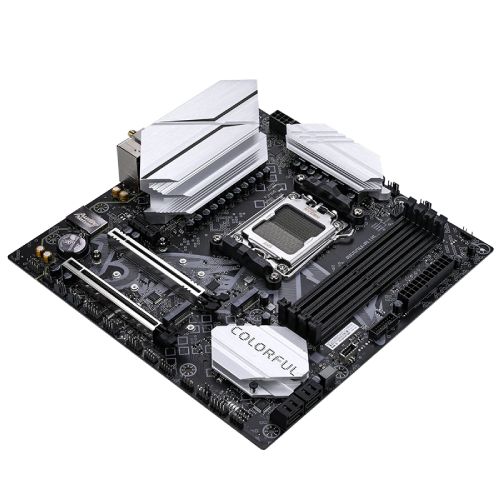

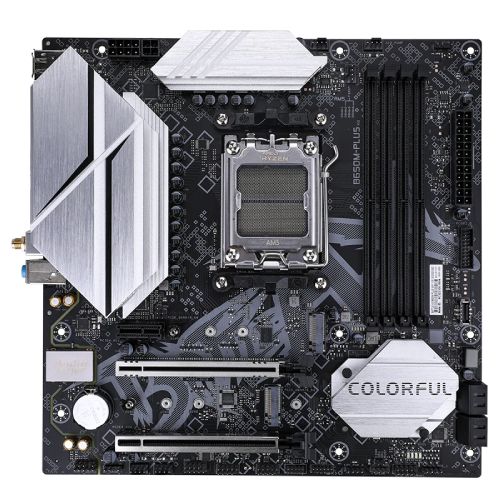

The Colorful BATTLE-AX B650M-PLUS WIFI V15 AMD B650 4 DDR5 Motherboard is equipped with the strong AMD B650 chipset and AM5 socket, and it supports the newest AMD Ryzen 7000, 8000, and 9000 series processors, providing great processing capability for demanding tasks. With four DDR5 memory slots, it can support up to 192GB of RAM at speeds of up to DDR5-6800 (OC), as well as XMP and EXPO memory technology for maximum overclocking and efficiency. This colorful BATTLE-AX B650M-PLUS WIFI V15 motherboard's storage and extension choices are geared for speed and versatility, with 2 M.2 slots that enable PCIe 5.0/4.0 x4 SSDs and 4 SATA 6Gb/s ports with RAID 0, 1, and 10 configurations. A PCIe 5.0 x16 slot, a PCIe 4.0 x16 (x4) slot, and a PCIe 4.0 x1 slot improve graphics and add-in card capability. This colorful motherboard offers high-speed data transfer and connectivity with a wide range of back I/O options, including USB 3.2 Gen 1 and Gen 2 ports, USB Type-C, DisplayPort 1.2, HDMI 1.4, and a 2.5G Ethernet connector. Wi-Fi 6 and Bluetooth 5.2 are integrated to ensure seamless wireless connectivity. The colorful BATTLE-AX B650M-PLUS WIFI V15 onboard design has multiple fan and water pump headers for optimal cooling, ARGB and RGB headers for lighting customization, and comprehensive hardware monitoring for temperature and voltage management. The Realtek ALC897 audio chip can produce up to 5.1 channels, providing high-quality sound for gaming and entertainment. With its mATX form size spanning 245mm x 245mm, the Colorful BATTLE-AX B650M-PLUS WIFI V15 AMD B650 4 DDR5 Motherboard provides 3 years warranty.
