| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD B850 | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB |
|
| Memory | ||
| Supported Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules |
|
| Graphics | ||
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a) |
|
| Max Shared Memory | Max. capacity of system memory: 256GB | |
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| Storage | ||
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 - Supports MU-MIMO |
|
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| BIOS | ||
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen1 Type-C (Rear) - 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)) - 1 x USB 3.2 Gen2x2 Type-C (Front) - 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front) - 9 x USB 2.0 (6 Rear, 3 Front) |
|
| RAID | - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
|
| Internal I/O Ports | - 2 x Antenna Ports - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 1 x USB 3.2 Gen1 Type-C Port (DP-alt mode supports DP1.4a) - 4 x USB 3.2 Gen1 Type-A Ports - 6 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Wireless Communication module | 2.5G LAN, 802.11axe Wi-Fi 6E Module | |
| Special feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter |
|
| Warranty | ||
| Warranty | 03 Years warranty | |

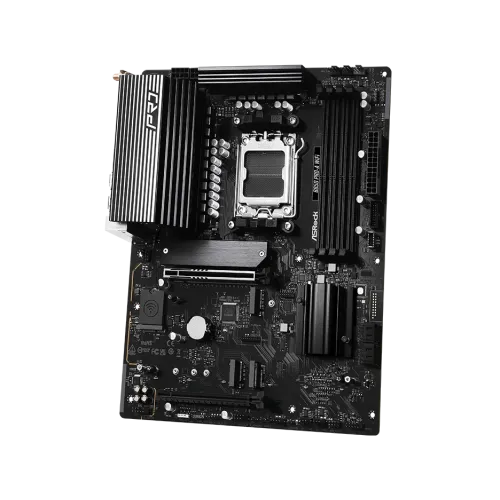

The ASRock B850 Pro-A WiFi DDR5 AMD AM5 Motherboard is designed for enhanced stability, durability, and efficiency. It offers reliable performance, user-friendly features, and a streamlined aesthetic, making it ideal for daily computing needs. This DDR5 Motherboard is a robust ATX motherboard engineered for AMD AM5 platforms, supporting Ryzen 7000, 8000, and 9000 series processors. Built with a 14+2+1 power‑phase design and an 8‑layer PCB, it delivers stable power for sustained performance and overclocking potential. Memory support extends to four DDR5 DIMM slots with up to 256 GB capacity and speeds beyond 8000 MT/s (with EXPO/XMP overclocking). Storage options are generous: a Blazing M.2 slot delivering PCIe Gen 5 ×4 bandwidth (up to 128 Gb/s), two PCIe Gen 4 ×4 M.2 slots, and an additional Gen 3 slot, alongside four SATA III ports. Connectivity is excellent—with built-in Wi‑Fi 6E (802.11axe), Bluetooth 5.2, and 2.5 Gb LAN—and includes a front‑panel USB 3.2 Gen 2×2 Type‑C header alongside multiple rear USB‑C and Type‑A ports. Additional user‑friendly tools include BIOS Flashback, auto driver installer, and a post‑status checker, making setup and troubleshooting easier. Moreover, build feedback from users highlights a solid track record even with high‑end CPUs like the Ryzen 9800X3D, though selecting compatible BIOS versions is advisable.
