| Basic Information | ||
| Supported CPU | Supports AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 series Processors | |
| Chipset | AMD X600 | |
| Form Factor | Micro-ATX | |
| Memory | ||
| Number of Memory Slots | 4 DIMM slots | |
| Maximum Memory | 192GB | |
| Supported Memory | DDR5 288-pin ECC/non-ECC UDIMM | |
| Graphics | ||
| Graphics | 1 HDMI, 1 DisplayPort | |
| Expansion Slots | ||
| Expansion Slots | SLOT6: PCIe5.0 x16 [CPU]* *When installing AMD Ryzen™ 8000 Series (Phoenix) Processors, SLOT6 will support only PCIe4.0 x8 *When installing AMD Ryzen™ 8000 Series (Phoenix2) Processors, SLOT6 will support only PCIe4.0 x4 2 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]* *When installing AMD Ryzen™ 8000 Series (Phoenix) Processors, 2 M.2 will support only PCIe4.0 x4 *When installing AMD Ryzen™ 8000 Series (Phoenix2) Processors, M2_1 will support only PCIe4.0 x2 and M2_2 will support only PCIe4.0 x4 Others MCIO1 (PCIe5.0 x8)* MCIO2 (2 PCIe5.0 x4)* *MCIO1 shares lanes with SLOT6. 1. MCIO1 will be disabled when SLOT6 is occupied by PCIe x16 device 2. MCIO1 will be fully functional when SLOT6 is occupied by PCIe x8 device or unoccupied *MCIO2 shares lanes with 2 M.2: 1. MCIO2 will be disabled when both M.2 are populated 2. MCIO2 will support PCIe x4 when 1 M.2 is populated *When installing AMD Ryzen™ 8000 Series (Phoenix) Processors, MCIO1 will be disabled and MCIO2 will support only 2 PCIe4.0 x4 *When installing AMD Ryzen™ 8000 Series (Phoenix2) Processors, MCIO1 will be disabled and MCIO2 will support only 1 PCIe4.0 x4 and 1 PCIe4.0 x2 |
|
| Storage | ||
| Supported Storage | Supports 2 M.2 (PCIe5.0 x4) 2 SATA 6Gb/s |
|
| Network | ||
| LAN | LAN activity LED | |
| BIOS | ||
| BIOS | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM BIOS Features Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
|
| Ports & Connectors | ||
| HDMI | 1 HDMI | |
| USB Ports | 2 Type-A (USB3.2 Gen1) | |
| Display Port | 1 DisplayPort | |
| TPM (Trusted Platform Module ) | 1 (13-pin, SPI) | |
| Internal I/O Ports | Power Connector 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) support 12V DC-in Other Power Connectors 1 (4-pin) for HDD power Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN activity LED System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header 1 Buzzer 1 Fan Header 7 (6-pin) TPM Header 1 (13-pin, SPI) SMBus header 1 PMBus header 1 IPMB Header 1 Clear CMOS 1 Others 1 SD card, 1 header (3-pin, 80 debug port) |
|
| Warranty | ||
| Warranty | 3 Years | |

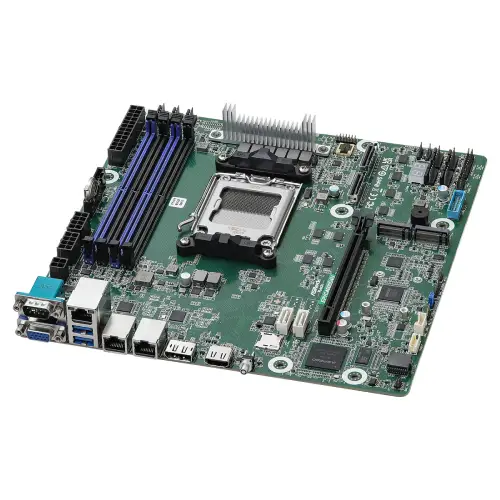

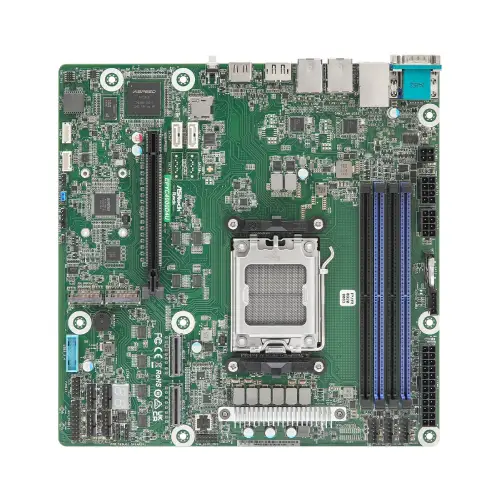

The ASRock Rack Server EPYC4000D4U AMD DDR5 AM5 LGA1718 Micro-ATX Motherboard serves as a robust and dependable server-grade option tailored for high-performance computing, virtualization, and essential business tasks. Designed for compatibility with the cutting-edge AMD EPYC 4000 series and Ryzen AM5 CPUs, this motherboard leverages the sophisticated DDR5 memory framework for quicker data transfer, increased bandwidth, and enhanced efficiency. Its Micro-ATX design is ideal for small server setups while maintaining expandability and stability. With enterprise-grade components, numerous PCIe slots, rapid storage capabilities, and enhanced network connectivity, the EPYC4000D4U guarantees seamless performance for NAS, web servers, and virtualization servers. Featuring ASRock Rack’s well-known dependability, IPMI remote management capabilities, and server-class architecture, this motherboard is perfect for enterprises, data centers, and demanding users seeking a robust, future-proof, and performance-enhanced server solution. ASRock Rack Server EPYC4000D4U AMD DDR5 AM5 LGA 1718 Micro-ATX Motherboard comes with 3 Years limited warranty.
