| Basic Information | ||
| Supported CPU | Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series, and 5000 Series Desktop Processors - Digi Power design - 14 Power Phase design |
|
| Chipset | AMD B550 | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
|
| Memory | ||
| Number of Memory Slots | 4 x DIMM Slots | |
| Channel Supported | Dual-Channel DDR4 Memory Technology | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports*** - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft® PlayReady |
|
| Max Shared Memory | - Shared memory default 2GB. Max Shared memory supports up to 16GB.** | |
| Expansion Slots | ||
| Expansion Slots | PCI: AMD Ryzen series CPUs (Matisse) 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) AMD Ryzen series APUs (Renoir) 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode) 2 x PCI Express 3.0 x1 Slots M.2 Socket: 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/ 2242/ 2260/ 2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with Matisse) or Gen3x 4 (32 Gb/s) (with Renoir) 1 x M.2 Socket (M2_2), supports M Key type 2230/ 2242/ 2260/ 2280/ 22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
| Storage | ||
| Supported Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI, and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/ 2242/ 2260/ 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir) - 1 x M.2 Socket (M2_2), supports M Key type 2230/ 2242/ 2260/ 2280/ 22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) |
|
| Network | ||
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User-Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
|
| BIOS | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port (HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz) | |
| USB Ports | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header | |
| Internal I/O Ports | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 4 x USB 2.0 Ports (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) - 1 x Dr. Debug with LED |
|
| Others | ||
| Wireless Communication module | supports type 2230 WiFi/BT PCIe WiFi module | |
| Warranty | ||
| Warranty | 03 years warranty | |

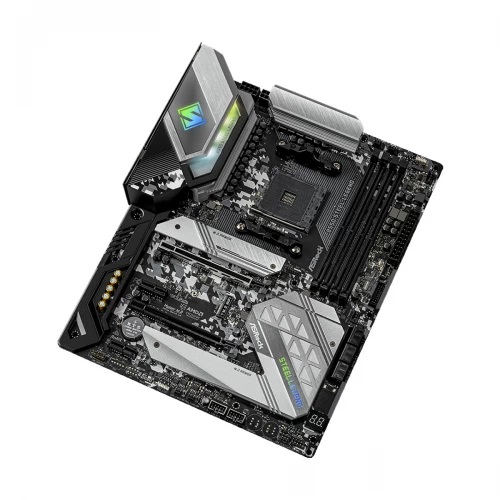

Brand- ASRock, Model- ASRock B550 Steel Legend, Chipset Brand- AMD, Chipset- AMD B550, CPU Sockets- AM4, Supported CPU- Ryzen 3000, 4000 G-Series and 5000 Series Processors, Memory Type- DDR4, Memory MHz- AMD Ryzen series CPUs (Matisse): 4533+(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133, Renoir: 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133MHz, Memory Channel- Dual Channel, Memory Slot- 4, Memory Max.- 128GB, Graphics- AMD Radeon Vega Graphics, Multi-GPU Support- AMD Quad CrossFireX and CrossFireX, PCI Express Slot- 2 x PCI Express x16 Slots, 2 x PCI Express 3.0 x1 Slots, Storage Interface- 6.0Gb/s, M.2 Slot- 2 x M.2 (1 x Hyper M.2, type 2280 M.2 PCI Express Gen4x4), (1 x M.2, type 2280 M.2 SATA3 and M.2 PCI Express Gen3 x2)), LAN Chipset- Dragon RTL8125BG, LAN Speed (Mbps)- 10/100/1000/2500Mb/s, Audio Chipset- Realtek ALC1220, Audio Channel- 7.1 Channel, USB Port- 6 x USB 2.0, 3 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen2 Type-C, HDMI Port- 1, DisplayPort (DP)- 1, SATA Port- 6 x SATA, DirectX Support- 12, BIOS Type- 256 Mb flash, BIOS Model- AMI UEFI Legal BIOS, BIOS Version- ACPI 5.1 compliance, FireWire- No, CrossFire Support- Yes, Sli Support- No, RaidSupport- 0,1,10, Thunderbolt- No, TPM Port- 1, COM Port- No, RGB Support- Yes, RGB Connector- 2 x RGB LED Headers, Form Factor- ATX, Supported Operating System- Windows 10, Special Features- XXL Aluminum Alloy Heatsink, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, ASRock Steel Slot Gen4, ASRock Live Update & APP Shop, Others- 2 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x Optical SPDIF Out Port, 1 x Power LED and Speaker Header, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin), 4 x Chassis/Water Pump Fan Connectors (4-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, Warranty- 3 Year
