| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 | |
| Chipset | AMD B650 | |
| Form Factor | mATX 226mmx243.84mm | |
| Memory | ||
| Number of Memory Slots | 2 | |
| Maximum Memory | 128GB | |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* | |
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) 2x M.2 | |
| Storage | ||
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed | |
| Network | ||
| LAN | Realtek RTL8125BG 2.5Gbps LAN | |
| Wireless | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 | |
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio | |
| BIOS | ||
| BIOS | Flash BIOS Button | |
| Ports & Connectors | ||
| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 4x USB 2.0 ports 4x USB 5Gbps Type A ports USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 | |
| Display Port | 1x DisplayPort | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |

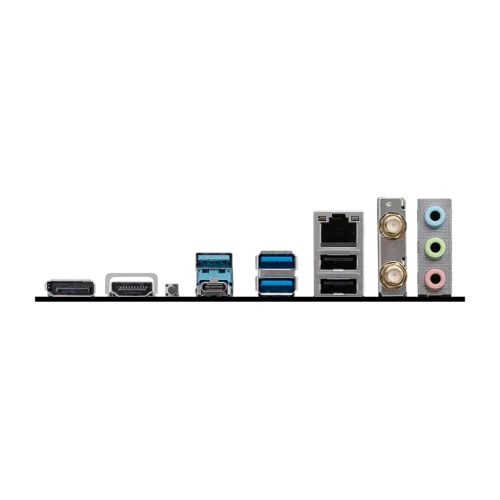

| Internal I/O Ports | INTERNAL IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports BACK PANEL PORTS DisplayPort HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 | |
| Warranty | ||
| Warranty | 3 years | |

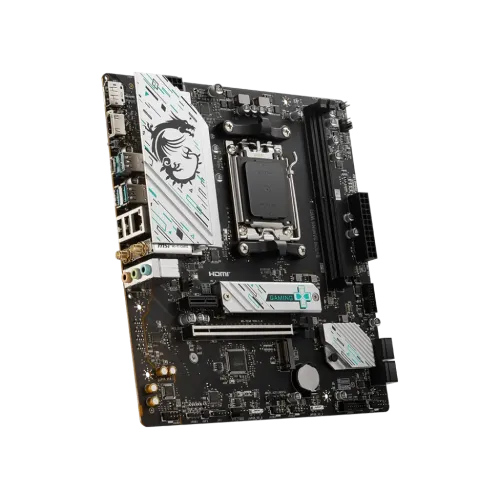

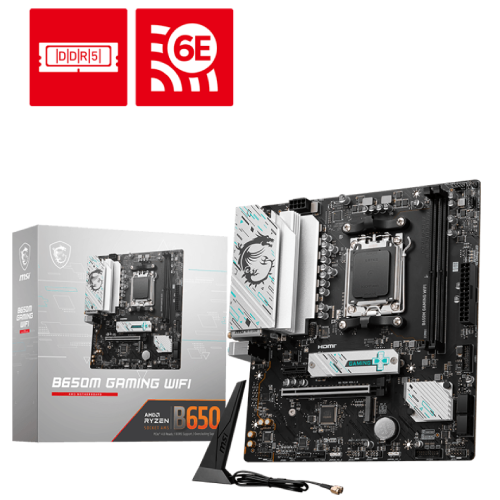

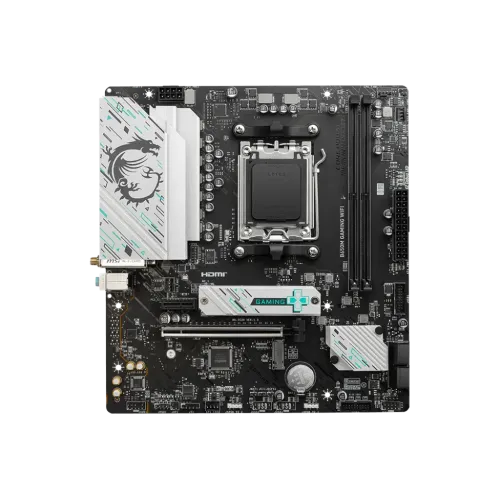

For gamers and PC enthusiasts seeking top-tier performance in a smaller form factor, the MSI B650M GAMING WIFI AM5 DDR5 mATX Motherboard is a little but mighty answer. It provides next-generation computing power and is based on the AMD B650 chipset, which supports Ryzen 9000, 8000, and 7000 series CPUs on the AM5 socket. It guarantees quicker speeds, increased economy, and performance suitable for the future thanks to its dual DDR5 memory slots. A compromise between space-saving build compatibility and support for necessary expansion options, such as M.2 slots for ultra-fast NVMe storage and reinforced PCIe 4.0 slots for contemporary graphics cards, is provided by the mATX architecture. The board has several USB 3.2 ports to accommodate the newest accessories, 2.5G LAN for reliable high-speed wired connections, and WiFi 6 for smooth wireless networking. It keeps the system stable during prolonged gaming sessions thanks to MSI's cutting-edge cooling solutions, which include expanded heatsinks and multiple fan headers. The MSI B650M GAMING WIFI is a dependable and effective option for creating a small gaming or productivity system because of characteristics like its user-friendly BIOS, excellent audio components, and stylish gaming aesthetics. The MSI B650M GAMING WIFI AM5 DDR5 mATX Motherboard comes with 3 years warranty.
