| Basic Information | ||
| Supported CPU | LGA 1151 Socket, Intel® 6th, 7th, 8th & 9th Generation Core™ i7 / i5 / i3, Pentium®, and Celeron® series, i3-6100, i3-8100, i5-8400, i5-9400, i7-9700, i7-9700K, etc. | |
| Chipset | Intel® H110 Chipset | |
| Form Factor | Micro-ATX (190 mm x 225 mm / 180 mm x 216 mm), 4-Layer PCB Structure | |
| Memory | ||
| Number of Memory Slots | 2x DDR4 DIMM Slots | |
| Channel Supported | Dual-Channel DDR4 Support | |
| Maximum Memory | Up to 64 GB system memory (Supports 2x 32GB or 16GB per single slot) | |
| Supported Memory | Supports 2x 32GB or 16GB per single slot | |
| Expansion Slots | ||
| Expansion Slots | 1x PCIe 3.0 x16 Slot (PCIe 3.0 x16 signal) 1x PCIe 2.0 x1 Slot (PCIe 2.0 x1 signal) | |
| Storage | ||
| Supported Storage | 1x M.2 Slot (Supports NVMe PCIe 2.0 x4 mode), 4x SATA 3.0 (6 Gbps) Ports | |
| Network | ||
| LAN | 1x RJ45 Gigabit LAN Port (Realtek® Gigabit Controller) | |
| Audio | ||
| Audio | 3x Audio Jacks (Line Out, Mic In, Line In), Realtek® High-Definition Audio Chip | |
| Ports & Connectors | ||
| HDMI | 1x HDMI Port, 1x VGA (D-Sub) Port | |
| USB Ports | 2x USB 3.0 Ports, 4x USB 2.0 Ports | |
| TPM (Trusted Platform Module ) | Support for TPM 2.0, 2x 5-Pin Diagnostic Card Header, 1x JBAT Jumper Cap | |
| Warranty | ||
| Warranty | 3 Years Replacement Warranty | |

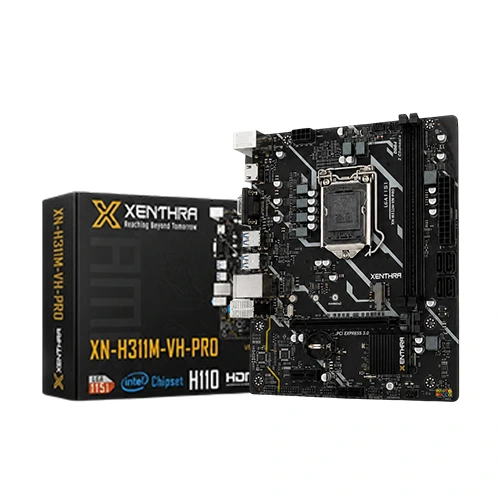

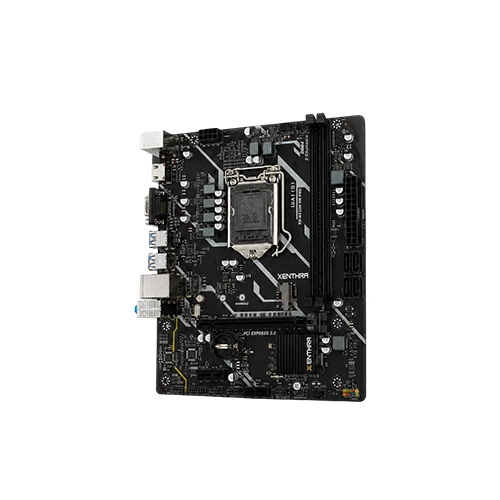

The XENTHRA XN-H311M-VH-PRO Intel Micro-ATX Motherboard is an excellent choice for users looking to build a reliable and budget-friendly Intel-based desktop PC. Designed with the Intel H311 chipset and an LGA1151 socket, it supports Intel 6th, 7th, 8th, and 9th Generation Core, Pentium, and Celeron processors, making it a versatile platform for office work, home computing, educational tasks, and entry-level gaming. Its Micro-ATX form factor ensures compatibility with a wide range of compact PC cases while providing essential expansion options. The motherboard features dual DDR4 DIMM slots for faster memory performance, PCIe x16 support for dedicated graphics cards, multiple SATA ports for storage devices, and an M.2 slot for high-speed NVMe SSDs (depending on board revision). It also includes integrated HD audio, Gigabit LAN connectivity, USB 3.0 ports, and HDMI/VGA display outputs for flexible connectivity. Built with durable components and an efficient power delivery design, the XENTHRA XN-H311M-VH-PRO delivers stable performance and dependable operation for everyday computing needs. Whether you're assembling a new PC or upgrading an older system, this motherboard offers an excellent balance of performance, compatibility, and value.
