| Main Feature | ||
| Antenna | 2.4 GHz: 2× 4 dBi 5 GHz: 2× 4 dBi |
|
| Buttons | Reset | |
| Frequency | 2.4 GHz and 5 GHz | |
| Wireless | 16 SSIDs (Up to 8 SSIDs on each band) Enable/ disable SSID broadcast Automatic channel assignment Transmit power control (adjustable in 1 dBm step) QoS (WMM) Band steering Beamforming Load balance Rate limit Scheduled reboot Wireless scheduled on/off Wireless Statistics based on SSID, access point, or client |
|
| Interface | 2 × Gigabit Ethernet (RJ-45) Ports | |
| Data Rate | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps |
|
| Standards | IEEE 802.11a/b/g/n/ac | |
| Power | Power Supply: 802.3af/802.3at PoE Power Consumption: 9.8 watts 24.4 watts with 13w PoE output |
|
| Security | Captive portal authentication Access control list Wireless MAC address filtering Wireless isolation between clients SSID to VLAN Mapping LAN port-based VLAN Rogue AP detection 802.1X EAP support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise |
|
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
| Others | Mounting: Wall Plate Mounting | |
| Physical Specifications | ||
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) | |
| Color | White | |
| Warranty Information | ||
| Warranty | 2 Years | |

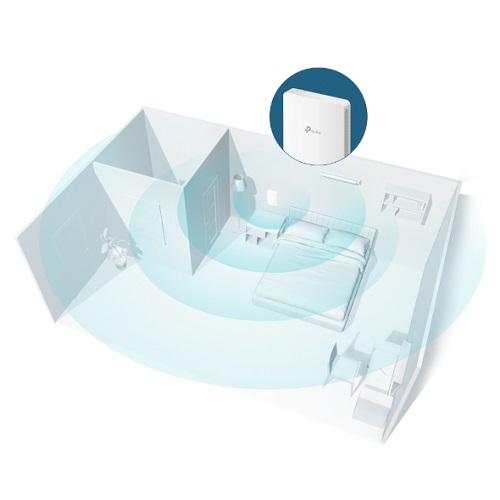

The TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point an EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage. The thinnest wall plate AP is available only 15 mm featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices, and school dormitories, to deliver powerful Wi-Fi without clashing with the room. With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go. EAP235-Wall is easy to install, so the extra cost, time, or professional knowledge is completely unnecessary. Equipped with four Gigabit data ports (1*uplink + 3*downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables. Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and gateways, guaranteeing powerful business networks with higher efficiency, higher security, and higher reliability. 100% centralized cloud management of the whole network from different sites—all controlled from a single interface anywhere, anytime. The TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point has a 2-years Warranty.
