| Main Feature | ||
| Standard | IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s | |
| Transmission Method | Recommended: CAT5/5e UTP or better | |
| Transmission Rate | Forwarding mode: Store-and-forward Switch capacity: 56Gbps Packet forwarding rate: 41.70Mpps Buffer: 12Mb Jombo frame: 10K | |
| MAC Address | 16K | |
| Port | 24-Ports | |
| Environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing | |
| Interface | 24*10/100/1000 Base-T Ethernet ports 4*1000 Base-X SFP ports 1*Console port | |
| LED | 1*Link/Act or PoE LED indicator 1*Link/1*Link/Act mode converting LED indicator 1*PoE mode converting LED indicator 1*PoE Max LED indicator 1*Power LED indicator 1*SYS LED indicator | |
| Power Supply | Input voltage: 100-240V AC 50/60Hz Power consumption: Full load: ＜432W Empty load: ＜23W PoE budget: Single port: AF: 15.4W, AT: 30W Whole device: 370W | |
| Others | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV Desktop mounting: support Wall mounting: support Rack mounting:non-support | |
| Physical Specifications | ||
| Dimensions | 440.0mmx284.0mmx44.0mm | |
| Warranty Information | ||
| Warranty | 1 Year Warranty | |

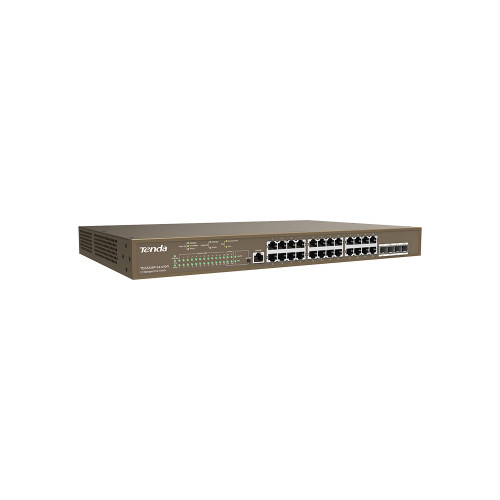

The Tenda TEG5328P-24-410W 24-Port L3 Managed PoE Switch To meet the demand for high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports, with a PoE power of up to 370 W. With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium- to large networks as enterprises and campuses. Supports Layer 3 routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster! Using the new 410W built-in PoE power, the number of AF and AT full-supply loads is twice that of ordinary low-power PoE switches! At the same time, the built-in PSE chip with an intelligent power management function can monitor the temperature of the chip and customize the PoE power supply based on the time period. The device will automatically turn on and off the PoE function during working hours and idle time to minimize energy consumption and extend the service life of the device. The TEG5328P-24-410W supports three QoS scheduling modes (SP, SWRR, and WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the label's priority. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic under the condition of limited bandwidth in order to better meet the current transmission needs. The Tenda TEG5328P-24-410W 24-Port L3 Managed PoE Switch has a 1-year Warranty.
