| Main Feature | ||
| Standard | IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at | |
| Transmission Method | Recommended: CAT5/5e UTP or better | |
| Transmission Rate | Forwarding mode: Store-and-forward Switch capacity: 36bps Packet forwarding rate: 26.8Mpps Buffer: 2M |
|
| MAC Address | 8K | |
| Port | 16-Ports | |
| Environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
|
| Interface | 16*10/100/1000 Base-T ports(Data/Power) | |
| LED | 16 * Link/Act LEDs 2 * SFP LED 1 * PoE-MAX LED 1 * Power LED |
|
| Power Supply | Power: Input: 100 - 240V AC 50/60Hz PoE budget: Single port: AF: 15.4W, AT: 30W Whole device: 230W |
|
| Others | Level of protection: Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV Desktop mounting: support Wall mounting: support Rack mounting : support |
|
| Physical Specifications | ||
| Dimensions | 440*178.8*44mm | |
| Warranty Information | ||
| Warranty | 1 Year Warranty | |

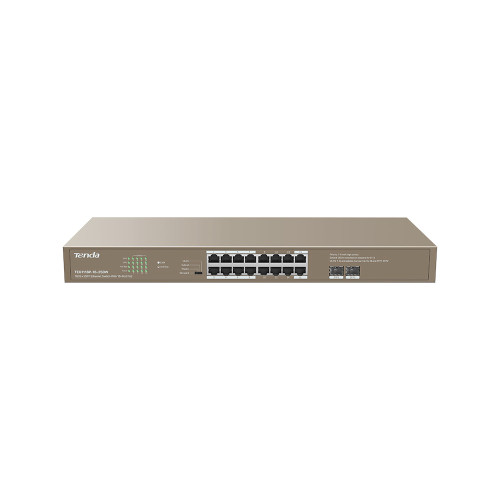

The Tenda TEG1118P-16-250W 16-Port PoE Ethernet Switch was independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 230W and 30W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports four working modes, including standard, priority, extend, and VLAN modes, and is an ideal choice for SMBs, hotels, schools, and factories with video surveillance and wireless networking requirements. With two 1000 Mbps SFP slots, the switch can meet the current demand for uplink bandwidth for Gigabit WLAN and HD digital surveillance. Working with the Tenda optical fiber module TEG311SM, the switch supports a maximum transmission distance of up to 20km. Standard mode, Priority mode, VLAN mode, and Extend mode make the TEG1118P-16-250W able to deal with different networks, especially for small and Medium-sized IP Surveillance and WI-FI coverage projects. The switch offers various safety and protection types, including 6 KV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection, etc., and these greatly protect the switch from being damaged by inductive thunderstorms. The Tenda TEG1118P-16-250W 16-Port PoE Ethernet Switch has a 1-year Warranty.
