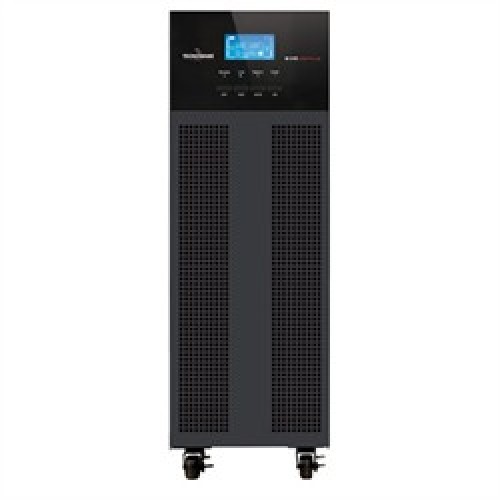

Tecnoware FGCEVDP6003MM Online UPS

Tecnoware FGCEVDP6003MM Online UPS

0 Customer Review
  • Product Code: Tecnoware FGCEVDP6003MM
  • Availability: In Stock

Description

  • Nominal power 6 KVA
  • Active Power 5.4 KW
  • Compatible with Generators
  • USB and RS232 ports
  • View More Info
80,000

Specification:

Model
BrandTecnoware
ModelTecnoware FGCEVDP6003MM
Warranty 1 Year
Details
Load CapacityOverload capability (Line mode) 110% for 30 minutes, 130% for 5 minutes, >130% for 10 seconds
Overload capability (Battery mode) 110% for 3 minutes, 130% for 30 seconds, >130% for 10 seconds
Input Voltage RangeInput voltage range 176Vac-300Vac dal 50% al 100% di carico, 110Vac-300Vac fi no al 50% di carico
Input FrequencyNominal frequency 50/60 Hz (selectable)
Input frequency range (On-Line mode) ±7%
Input Power Factor0,99
Output VoltageVoltage Regulation at %100 ±2% linear load (On-Line and Battery mode)
Voltage THD at rated linear load <3% (linear load), <6% (non-linear load)
Output Power Factor0,9
Output Frequency50/60 Hz
Backup Time10 min
Noise Level< 48 dBA to 1 m
BatteryLead acid, sealed

Description

Tecnoware FGCEVDP6003MM UPS On-Line Double Conversion Technology Without transformer (VFI-SS-111). Power Factor 0,9. Rectifier realized by IGBT technology. Active PFC Circuit (0.99). Compatible with Generators. Output voltage and frequency can be regulated from the front panel.Static Bypass. USB and RS232 ports
