| Memory Specifications | ||
| Memory Size | 16GB | |
| Memory Type | GDDR6 | |
| Core Clock | Up to 2700 MHz | |
| Boost Clock | Up to 3290 MHz | |
| Memory Clock | 20 Gbps Effective | |
| Bus Type | 128 bit | |
| Memory Interface | PCI-Express 5.0 x16 | |
| Stream Processors | 2048 | |
| Resolution | 7680×4320 | |
| Others | Sapphire Features Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate ARGB SAPPHIRE Logo Two-Ball Bearing Fans 9-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported Performance vs. Efficiency Quicksets Glow! TriXX Boost External RGB LED MB Synchronization AMD Features AMD RDNA™ 4 Architecture 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology AMD Infinity Cache 16 GB of GDDR6 on 128-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application Cooler Type Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing | |
| Output | ||
| Display Port | 1 x DisplayPort 2.1a | |
| HDMI | 2 x HDMI | |
| Power Specifications | ||
| Recommended PSU | Minimum 450 Watt Power Supply | |
| Power Connector | 1 x 8-pin Power Connector. | |
| Power Consumption | 170W Typical Board Power | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 240(L)X 124(W)X 46.1 (H)mm | |
| Slot Size | 2.3 slot, ATX | |
| Fans | 2 | |
| Warranty | ||
| Warranty | 2 years Warranty | |

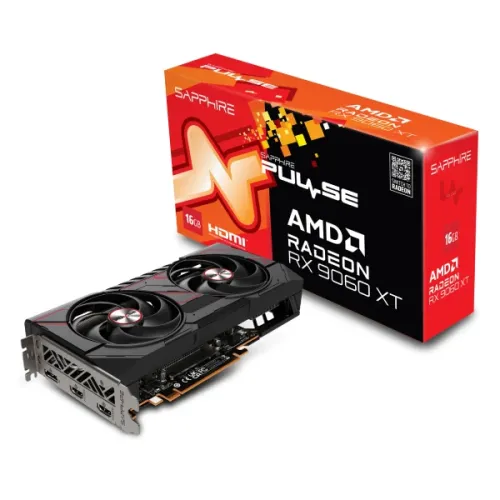

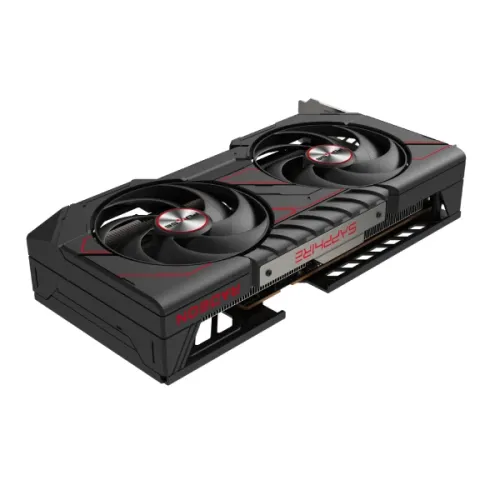

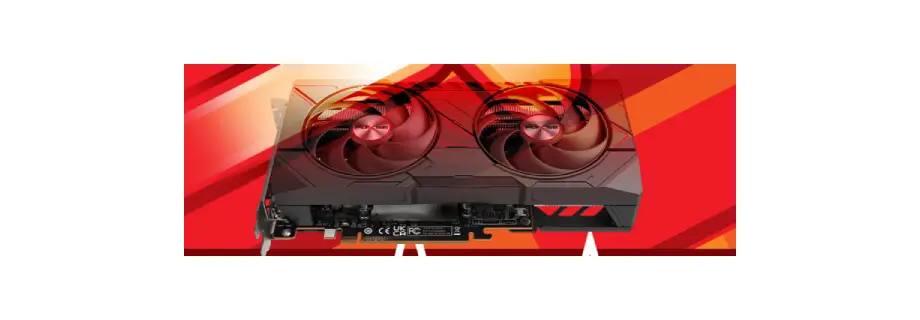

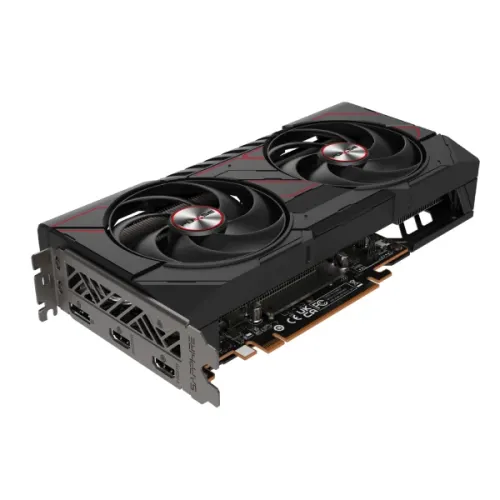

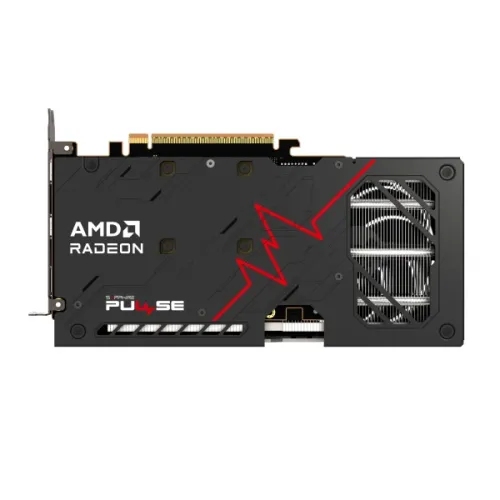

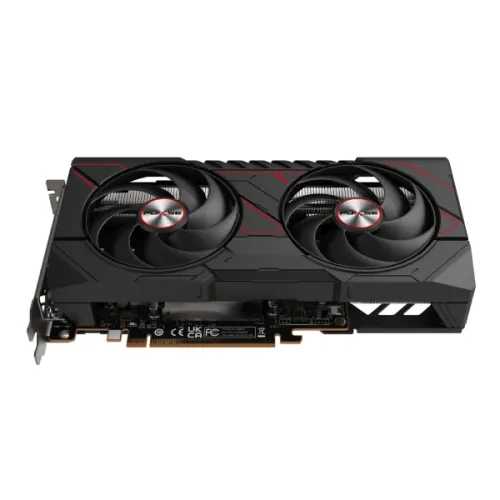

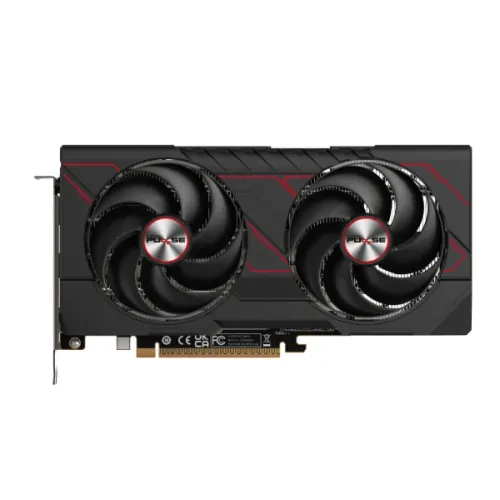

The Sapphire Pulse AMD Radeon RX 9060 XT GAMING OC 16GB GDDR6 Graphics Card is built on AMD RDNA 4 architecture, which includes 32 compute units, 2048 stream processors, sophisticated 3rd generation ray tracing cores, and 2nd generation AI accelerators. It includes 16GB of GDDR6 memory that runs on a 128-bit memory bus and has an effective memory clock speed of 20 Gbps. The game clock is capable of reaching 2700 MHz, while the boost clock increases performance to 3290 MHz. This Sapphire graphics card has a maximum resolution of 7680×4320, providing clear pictures on current displays. The Sapphire Pulse AMD Radeon RX 9060 XT GAMING OC Graphics Card includes AMD technologies like HYPR-RX with AFMF 2, FidelityFX Super Resolution 4 with AI upscaling, Radiance Display Engine, Fluid Motion Frames 2, Radeon Anti-Lag 2, AV1 encode and decode, AMD Noise Suppression, FreeSync support, and full DirectX 12 Ultimate compatibility. Dual-X Cooling technology with AeroCurve fan blades, Free Flow design, optimized composite heatpipes, high TG copper PCB, two-ball bearing fans, and Honeywell PTM7950 thermal interface material all help to keep the system cool. The Sapphire Pulse AMD Radeon RX 9060 XT GAMING OC 16GB GDDR6 Graphics Card has a metal backplate, ARGB Sapphire logo, intelligent fan control, precision fan control, 9-phase digital power design, fuse protection, TriXX software support, TriXX Boost, and external RGB LED motherboard synchronization. The graphics card connects via a PCI-Express 5.0 x16 interface and has one DisplayPort 2.1a and two HDMI outputs, allowing for up to four screens. Power requirements include a single 8-pin connector with a typical board power of 170W and a recommended 450W PSU. Measuring 240 x 124 x 46.1 mm with a 2.3-slot ATX design, this Sapphire graphics card carries a 2-year manufacturing warranty.
