| Main Feature | ||
| Antenna | Built-in omnidirectional antenna (two 2.4 GHz antennas and two 5 GHz antennas) 4.3 dBi in 2.4 GHz and 5.7 dBi in 5 GHz |
|
| Frequency | 2.4 GHz, two spatial streams, 2x2 MIMO 5 GHz, two spatial streams, 2x2 MU-MIMO |
|
| Wireless | 2.4 GHz, 802.11n (HT40) 5 GHz, 802.11n (HT20) |
|
| Interface | 1 x 100/1000/2500 Base-T 1 x 1GBase-X SFP |
|
| Data Rate | Combined peak data rate: 1.167 Gbps 2.4 GHz radio Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2SS HT40 802.11n client devices (max.) Two spatial stream Single User (SU) MIMO for up to 144.4 Mbps wireless data rate to individual 2SS HT20 802.11n client devices (typical) 5 GHz radio Two spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate to individual 2SS HT80 802.11ac client devices (typical) |
|

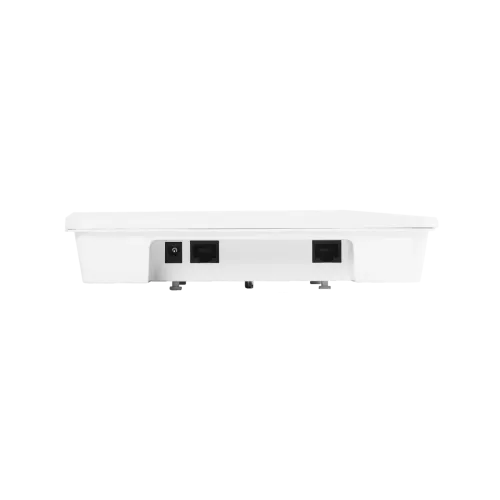

| Ports | 1 x 10/100/1000Base-T RJ45 Ethernet port with auto-negotiation 1 x RJ45 console port (serial console port) 1 x multi-color system status LED 1 x Reset button |
|
| Power | Input power supply: 12 V DC/1.5 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE). Max power consumption: 12.95 W |
|
| WAN Type | Radio 1: 2.4 GHz, 100 STAs Radio 2: 5 GHz, 156 STAs |
|
| Environment | Operating temperature: –10°C to +50°C (14°F to +122°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Operating humidity: 5% to 95% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
|
| Physical Specifications | ||
| Dimensions | 194 mm x 194 mm x 37 mm (7.64 in x 7.64 in x 1.46 in) |
|
| Weight | Main unit: 0.42 kg (0.93 lbs) Mounting bracket: 0.07 kg (0.15 lbs) |
|
| Color | White | |
| Warranty Information | ||
| Warranty | 3 Year Warranty | |

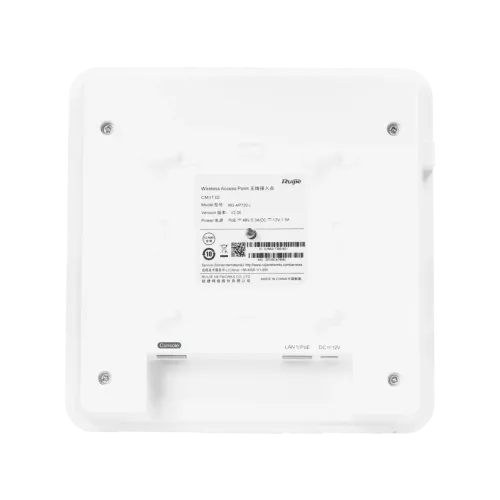

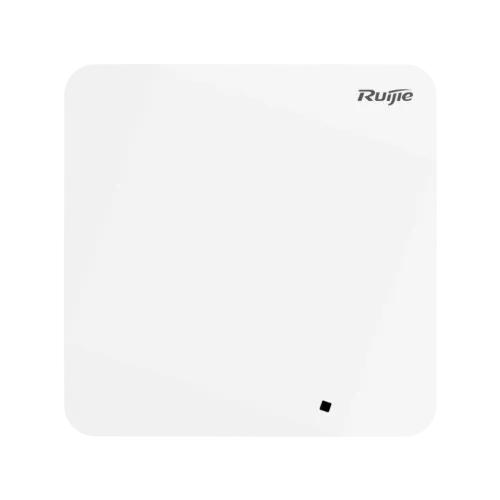

Ruijie RG-AP720-L 1167 Mbps Dual-Radio Wi-Fi 5 Access Point. This AP provides both a stable 5 GHz band and a wide-coverage 2.4 GHz band. Dual radios ensure stable connectivity for more STAs. The built-in smart antenna can identify the direction of STAs relative to the AP. With Ruijie's proprietary roaming algorithm, this AP also supports 802.11k/v/r. Intelligent channel planning and accurate wireless positioning enable STAs to associate with the best AP nearby. You do not need to pre-configure this AP before installation. Once connected to a Ruijie wireless AC, this AP can obtain configurations from the AC to complete provisioning, thus greatly reducing the implementation and maintenance workload. Dual Radios, Combined Rate Up to 1167 Mbps, and Signals Never Drop with Seamless Roaming Auto Configuration, Simplified Provisioning, Easy Deployment, Unified Cloud Management, Intelligent Tuning, and Easy O&M The Ruijie RG-AP720-L 1167 Mbps Dual-Radio Wi-Fi 5 Access Point has a 3-year warranty.
