| Full Specifications | ||
| Capacity | 1000VA | |
| Input Voltage | Nominal Voltage: 200/208/220/230/240VAC Input Voltage Range: 110-280 VAC (Based on Load at 50%) Frequency Range: 46Hz-54Hz / 56Hz-64Hz Phase: Single phase with ground Power Factor: R0.99 @ nominal voltage (100% load) |
|
| Output Voltage | Output Voltage: 200/208/220/230/240VAC Voltage Regulation: ±1% Frequency Range (Synchronized Range): 46 ~ 54 Hz or 56 ~ 64 Hz Frequency Range (Batt. Mode): 50 Hz or 60 Hz ±0.1% Current Crest Ratio: 3:01 |
|
| Battery | Battery Type: 12 V / 8.2Ah Numbers: 3 Typical Recharge Time: 4 hours recovery to 90% capacity Charging Current (max.): 1.0A DC Voltage: 36 VDC |
|
| Alarm | Battery Mode: Sounding every 4 seconds Low Battery: Sounding every second Overload: Sounding twice every second Fault: Continuously sounding |
|
| Dimension | 497x497x365mm | |
| Warranty | 1-Year Battery Warranty Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
|

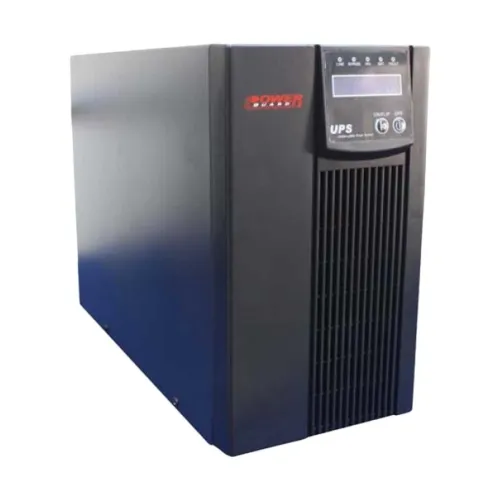

The Power Guard 1KVA PS Standard Backup Online UPS is a reliable and compact power protection solution designed to provide uninterrupted electricity for small offices, home workstations, networking equipment, and essential electronic devices. Operating on true online double‑conversion technology, this UPS continuously conditions incoming power by converting AC to DC and back to AC, delivering a clean and stable pure sine wave output. This double conversion process effectively eliminates common power issues such as voltage fluctuations, surges, spikes, and electrical noise — protecting sensitive equipment from damage and performance disruptions. With a rated capacity of 1KVA (approximately 900W usable output), the Power Guard 1KVA PS model handles moderate loads with ease, making it suitable for desktop computers, POS systems, small servers, and communication devices. Its online design ensures that connected equipment receives consistent power quality regardless of input instability, which is especially valuable in areas with frequent voltage variations or unreliable grids. The UPS features an intelligent LCD or LED interface (depending on SKU), giving users real‑time insight into input and output voltages, battery level, load percentage, and operational status. This visibility simplifies monitoring and helps users plan maintenance or battery replacements proactively. Backup capability is achieved through its integrated battery system, delivering standard backup duration and the option to connect additional external batteries if longer runtime is needed. Safety features such as overload protection, short‑circuit protection, overcharge prevention, and temperature safeguards are built into the unit to enhance reliability and protect both the UPS and connected devices. Quiet operation and compact form factor make it easy to install in tight spaces, while high efficiency in normal operation helps reduce energy waste and operational cost. The Power Guard 1KVA 1000VA 900W Online UPS comes with 1 year battery warranty.
