| Basic Information | ||
| Input Voltage | 100 - 240Vac: 10A-5A 50Hz-60Hz | |
| Input Frequency | 100 - 240Vac: 10A-5A 50Hz-60Hz | |
| Efficiency | 20% loading: 87% @115Vac 50% loading: 90.5% @115Vac 100% loading: 87.5% @115Vac |
|
| Output Power | +3.3V and +5V: 22A (120W) +12V: 70.8A (850W) -12V: 0.3A (3.6W) 5Vsb: 3A (15W) Total: 850W |
|
| Modular Type | Full Modular | |
| Certification | 80 Plus Gold | |
| Fans | Dimensions: 135 x 135 x 25 mm Speed: 0-2300 ± 10% RPM Airflow: 93.02 CFM (Tpy.) Noise: 44.5 dBA max Bearing: Fluid Dynamic Bearing (FDB) |
|
| Others | PF Correction: Active @0.96 MTBF: 100,000 hours Temperature: 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C) Cable Specs 24-pin ATX power: 600 mm, Nylon sleeving 4+4-pin CPU power: 700 mm, Nylon sleeving 6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving SATA power: 500 + 150 mm Peripherals: 500 + 150 mm |
|
| Connectors | ||
| Main Power | 850 wattage | |
| CPU | 4+4-pin CPU power: 2 | |
| PCI-E | 6+2-pin PCIe power: 6 | |
| SATA | SATA power: 6 Peripherals: 6 |
|
| Molex | 24-pin ATX Power: 1 | |
| Physical Specification | ||
| Dimensions | 150 x 150 x 86 mm | |
| Color | Black | |
| Material | Steel, PCB and plastic | |
| Warrnty Information | ||
| Warranty | 10 Year Warranty | |

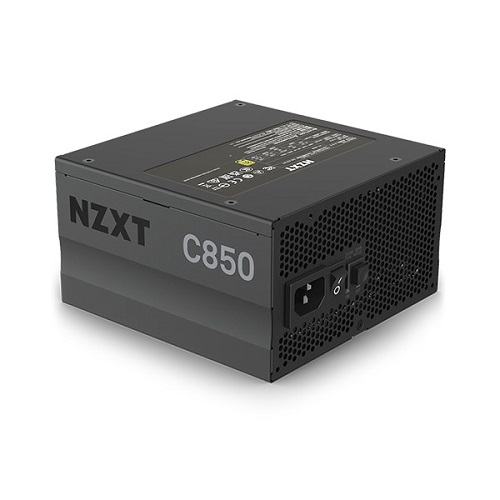

The NZXT C850 80 Plus Gold Full Modular 850 Watt Power Supply delivers 850 watts of clean, stable power which is ideal for gaming PCs with multiple GPUs, or higher power requirements. It is also useful for SLI or Crossfire builds. Modular design lets builders use only the cables they need. The sleeved main cables resist heat damage as well as fraying, Fitting any case conforming to the ATX standard. Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6900 XT, Zero RPM Fan mode silences the fan under low-load conditions, Dynamic 135mm fluid-dynamic bearing fan. The NZXT C850 80 Plus Gold Full Modular 850 Watt Power Supply has a 10-year warranty.
