| Basic Information | ||
| Fan Speed (RPM) | 1700 rpm | |
| Airflow (CFM) | 70.75 CFM | |
| Air Pressure (mmH2O) | 2.83 mm H₂O | |
| Noise Level (dBA) | 25.1 dB(A) | |
| Bearing Type | SSO | |
| Connector | 2510-4PIN (or equal) | |
| Operating Voltage | 13.2 V | |
| Physical Information | ||
| Dimension | 120 x 120 x 25 mm | |
| Weight | 155 g | |
| Materials | PBT GF30 | |
| Warranty Information | ||
| Warranty | 6 years | |

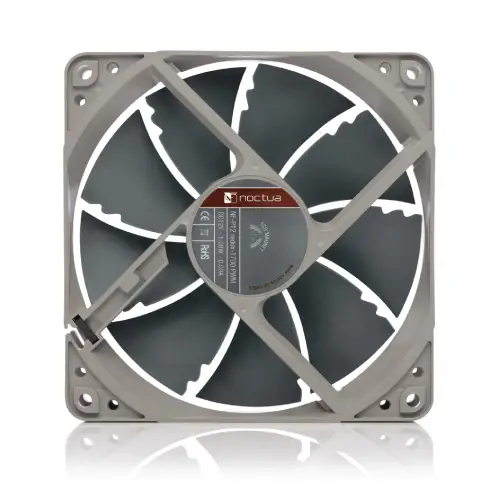

The Noctua NF-P12 redux-1700 PWM casing cooler features a square 120 x 120 x 25 mm form factor with a 105 x 105 mm mounting hole spacing, weighing 155 g, and utilizes robust PBT GF30 material for both its frame and counter-clockwise rotating impeller. Built around an advanced SSO bearing and driven by the NE-FD1 single-phase motor IC, this 4-pin PWM cooling fan delivers a rotational speed ranging from 0 to 1700 RPM, a maximum airflow of 120.2 m³/h (70.75 CFM), a peak static pressure of 2.83 mm H₂O, and a maximum acoustical noise level of 25.1 dB(A). Operating at a standard 12V rated voltage with a 7V starting voltage, it consumes a typical 0.95W input power through a 400 mm 26 AWG wire equipped with a fibreglass silicone mesh sleeve and a 2510-4PIN connector. Engineered for high reliability with a Mean Time to Failure (MTTF) exceeding 150,000 hours, it includes comprehensive safety protections such as locked rotor, polarity, and overcurrent protection, alongside an IP50 ingress protection rating. This high-performance cooling fan comes backed by a 6-year manufacturer warranty.
