| Basic Information | ||
| Fan Speed (RPM) | 1500 rpm | |
| Airflow (CFM) | 91.58 CFM | |
| Air Pressure (mmH2O) | 2.56 mm H₂O | |
| Noise Level (dBA) | 24.8 dB(A) | |
| Bearing Type | SSO2 | |
| Connector | A2543-4PIN (or equal) | |
| Rated Voltage | 12 V | |
| Operating Voltage | 13.2 V | |
| Physical Information | ||
| Dimension | 140 x 140 x 25 mm | |
| Weight | 225 g | |
| Materials | Silicone rubber | |
| Warranty Information | ||
| Warranty | 6 years | |

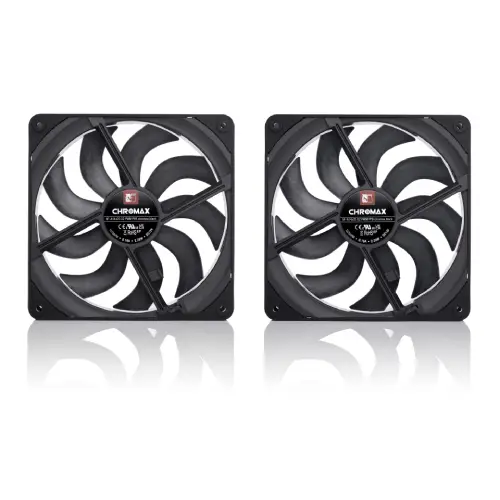

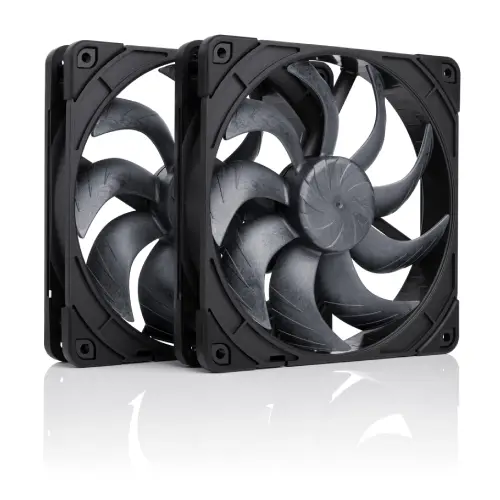

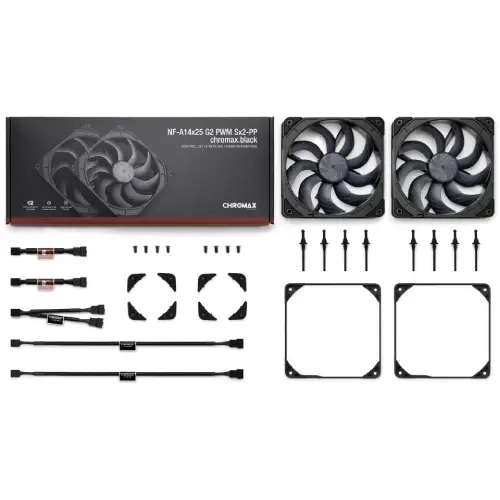

The Noctua NF-A14x25 G2 PWM Sx2-PP Black Casing Cooler is a high-performance dual 140mm fan set featuring a square 140x140x25mm frame size engineered for advanced PC casing and radiator cooling. Powered by an SSO2 bearing and a smooth-running NE-FD6 driver IC with SupraTorque technology, it delivers a maximum rotational speed of 1500 RPM, which can drop to 0% PWM for silent idle operation. This model yields a maximum airflow of 155.6 m³/h (91.58 CFM) and a static pressure of 2.56 mm H₂O while maintaining an acoustical noise level capped at 24.8 dB(A). Constructive materials include a robust PBT ABS GF30 frame and an LCP GF30 impeller, complemented by pre-installed anti-vibration silicone pads. Operating on a standard 12V rated voltage through a 4-pin PWM connector, the assembly integrates comprehensive electrical protections and low-noise adapters for versatile airflow tuning. This premium cooling solution includes a manufacturer-backed 6-year warranty.
