| Basic Information | ||
| Fan Speed (RPM) | 1800 rpm | |
| Airflow (CFM) | 63.15 CFM | |
| Air Pressure (mmH2O) | 3.14 mm H₂O | |
| Noise Level (dBA) | 22.5 dB(A) | |
| Bearing Type | SSO2 | |
| Connector | 4-pin | |
| Rated Voltage | 12 V | |
| Operating Voltage | 13.2 V | |
| Physical Information | ||
| Dimension | 328 x 128 x 33 mm | |
| Weight | 195 g | |
| Materials | Silicone rubber | |
| Warranty Information | ||
| Warranty | 6 years | |

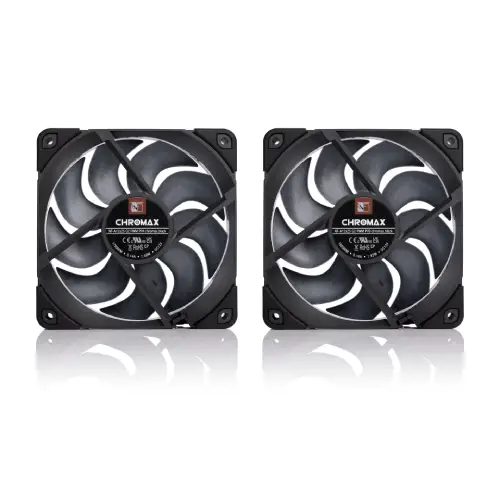

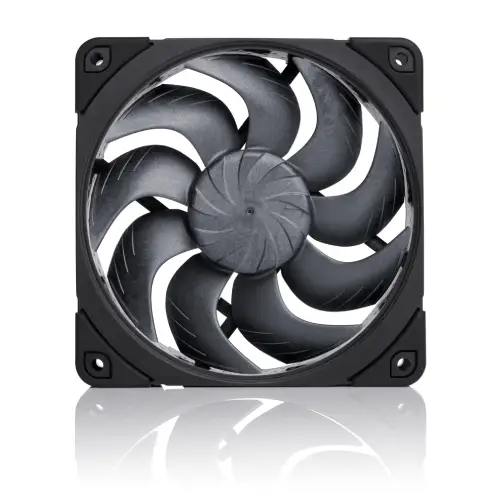

The Noctua NF-A12x25 G2 PWM Sx2-PP is a next-generation 120mm dual casing cooler fan set engineered in an all-black chromax design for push-pull and side-by-side configurations. This premium square frame fan measures 120 x 120 x 25 mm without pads and 120 x 120 x 27 mm with anti-vibration pads, utilizing a durable PBT ABS GF30 frame and LCP GF30 impeller powered by an SSO2 bearing. It operates at a rotational speed ranging from 0 to 1800 RPM (achieving 1500 RPM with the included Low-Noise Adaptor) and delivers a maximum airflow of 107.3 m³/h (63.15 CFM) with a static pressure of 3.14 mm H₂O, while maintaining a low max acoustical noise level of 22.5 dB(A). The 4-pin PWM fan runs on a rated voltage of 12V with a maximum input power of 1.8W and 0.15A current. The comprehensive package includes two premium fans, low-noise adaptors, a 4-pin PWM splitter cable, extension cables, anti-vibration mounts, and gaskets. Backed by a 6-year manufacturer warranty.
