| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors, LGA-1700 |
|
| Chipset | INTEL Z790 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Memory | ||
| Number of Memory Slots | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB | |
| Channel Supported | Supports Dual-Controller Dual-Channel mode | |
| Maximum Memory | Maximum Memory Capacity 256GB | |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz |
|
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
|
| Network | ||
| LAN | Intel 2.5Gbps LAN | |
| Wireless | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Audio | ||
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz |
|
| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
|
| Display Port | 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Others | ||
| Wireless Communication module | The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps |
|
| Special feature | LED FEATURE: 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 years | |

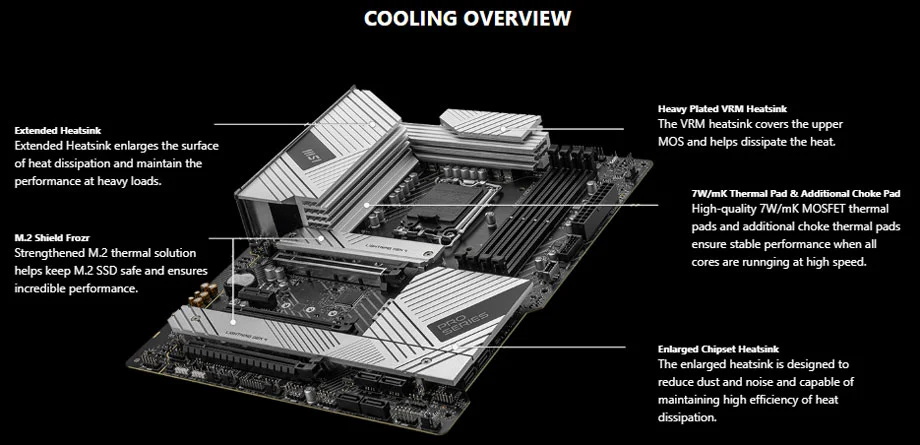

The MSI PRO Z790-A MAX WIFI motherboard offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive MSI features, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel Core 14th Gen and 13th Gen processors. This Gaming motherboard supports Intel Core 14th/13th/12th Gen processors and Intel Pentium Gold and Celeron Processors, LGA 1700. It has an extended heatsink which enlarges the surface of heat dissipation and maintains the performance at heavy loads. Also, the MSI PRO Z790-A Motherboard includes M.2 Shield Frozr that helps keep the M.2 SSD safe and ensures incredible performance. The 2.5G LAN with Wi-Fi 7 Solution provides professional and multimedia users with enhanced networking capabilities, enabling safe, stable, and fast network connections. Finally, AUDIO BOOST 5 pampers your ears with studio-grade sound quality, giving an immersive gaming experience with remarkable audio clarity and fidelity. Durability and dependability are ensured by a high-quality 6-layer PCB composed of 2-oz-thick copper and server-grade components. PCIe 5.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2 connectors provide lightning-fast connections. Intel Turbo USB 3.2 Gen 2 provides robust and fast USB communication. Secure to the motherboard with extra solder points and support the weight of heavy graphics cards. The Wireless module is pre-installed in the M.2 (Key-E) slot, supports Bluetooth 5.4, MLO, 4KQAM, Intel 2.5 Gbps LAN, 4x DDR5 UDIMM, Maximum Memory Capacity of 256 GB.
