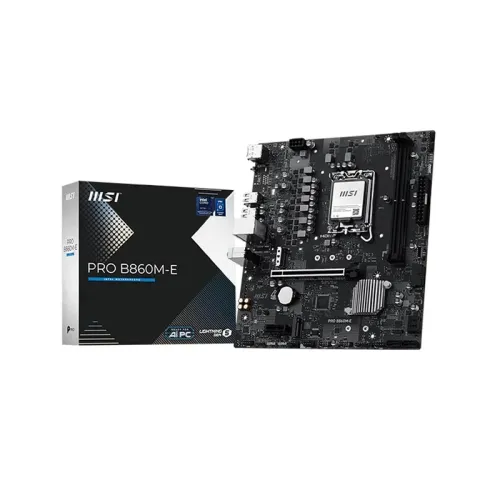

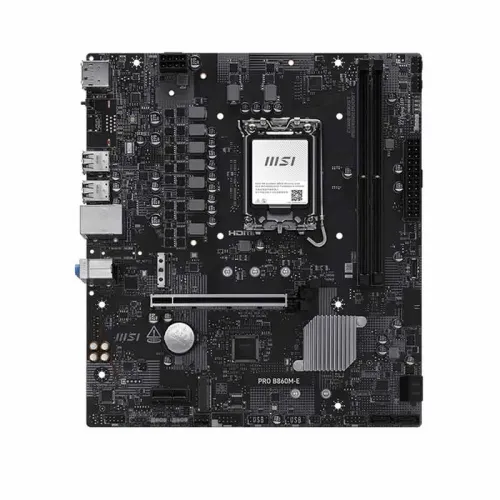

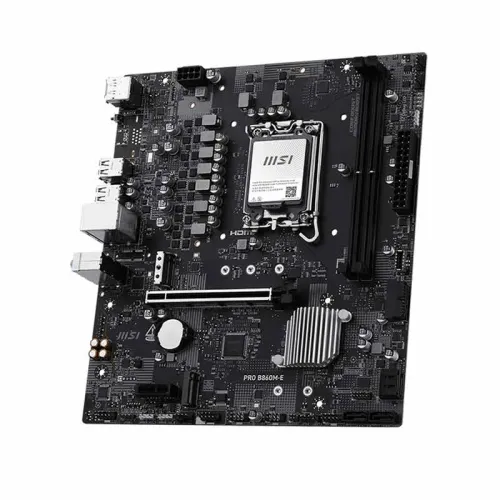

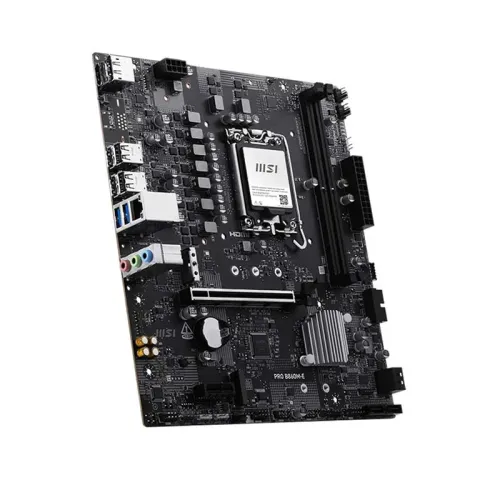

MSI PRO B860M-E DDR5 Intel Core Ultra LGA1851 Micro-ATX Motherboard
  • MSI PRO B860M-E DDR5 Intel Core Ultra LGA1851 Micro-ATX Motherboard
  • MSI PRO B860M-E DDR5 Intel Core Ultra LGA1851 Micro-ATX Motherboard
  • MSI PRO B860M-E DDR5 Intel Core Ultra LGA1851 Micro-ATX Motherboard
  • MSI PRO B860M-E DDR5 Intel Core Ultra LGA1851 Micro-ATX Motherboard

MSI PRO B860M-E DDR5 Intel Core Ultra LGA1851 Micro-ATX Motherboard

0
(0) Review
  • Brand:MSI
  • Product Code: 20746
  • Model: MSI PRO B860M-E
  • Availability: In Stock

Description

  • Form Factor - Micro-ATX
  • Chipset - Intel B860
  • Sockets Supported - LGA1851
  • Supported CPU - Intel Core Ultra Processors
  • Generation - Ultra
  • Memory Slot - 2
  • Memory Max. - 128GB
  • Back-Connect Design - No
  • Body Color - Black
Show More
18,000
remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPUIntel Core Ultra Processors
ChipsetIntel B860
Form FactorMicro-ATX
Memory
Number of Memory Slots2
Maximum Memory128GB
Supported MemoryDDR5
Graphics
Graphics1x HDMI 2.1 1x DisplayPort 1.4
Expansion Slots
Expansion Slots 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Storage
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Network
LAN Realtek 8126 5Gbps LAN
Audio
AudioRealtek ALC897 Codec 7.1-Channel High Definition Audio
Ports & Connectors
HDMI 1x HDMI 2.1
USB Ports4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
Display Port1x DisplayPort 1.4
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Internal I/O Ports1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Warranty
Warranty3 Years Warranty

Description

MSI PRO B860M-E DDR5 Intel Core Ultra LGA1851 Micro-ATX Motherboard for Bangladesh

The MSI PRO B860M-E is a Micro-ATX motherboard built for Intel Core Ultra processors on the LGA1851 socket. With the Intel B860 chipset and support for up to 128GB of DDR5 memory across 2 memory slots, it’s a practical choice for users who want a compact, reliable platform for everyday productivity, office systems, and smooth multitasking. Its black design helps it blend neatly into most PC builds, including clean-looking office workstations and space-saving desktop setups.

Designed for Intel Core Ultra on LGA1851

This motherboard supports Intel Core Ultra processors (Generation: Ultra) using the LGA1851 socket. That means you can build a modern system that’s ready for current Intel Core Ultra performance and platform features. If you’re upgrading an existing workstation, the LGA1851 compatibility makes it a straightforward path for users who specifically want to move to the Intel Core Ultra platform without changing to a different CPU family.

Intel B860 chipset for a balanced everyday platform

Equipped with the Intel B860 chipset, the MSI PRO B860M-E targets mainstream performance needs with a focus on stability and efficient operation. For typical office and institutional use—such as document processing, web-based work, spreadsheets, and general business applications—this chipset pairing is well-suited. It’s also a sensible option for home users who want a dependable motherboard for daily computing rather than a feature-heavy board that may be unnecessary for basic workloads.

DDR5 memory support up to 128GB

The board includes 2 memory slots and supports a maximum memory capacity of 128GB. With DDR5 support, you get a modern memory foundation that helps improve responsiveness in multitasking scenarios and supports more demanding applications compared to older DDR generations. For buyers in Bangladesh planning a long-term build, 128GB maximum capacity gives room for future upgrades—useful for users running heavier workloads like large spreadsheets, data analysis, virtualization, or memory-intensive creative tasks.

Micro-ATX form factor for space-saving builds

As a Micro-ATX motherboard, the MSI PRO B860M-E is ideal for compact desktop cases where you still want a full-featured modern platform. Compared to larger ATX boards, Micro-ATX builds often fit more easily into smaller desks and office environments, while still allowing a clean internal layout. If you’re assembling a workstation for corporate use, a Micro-ATX design can also simplify deployment in tight spaces and help maintain a tidy cable arrangement.

Good fit for office, corporate, and institutional PCs

The MSI PRO B860M-E is positioned as a practical motherboard for office, corporate, and institutional equipment needs. It’s a strong match for organizations that prioritize dependable daily operation and straightforward system configuration. For best results, pair it with a compatible Intel Core Ultra processor and DDR5 memory modules that match your intended capacity plan (up to 128GB). This helps ensure stable performance from day one and makes future upgrades easier when your organization’s computing requirements grow.

Price in Bangladesh

In Bangladesh, the MSI PRO B860M-E Motherboard price starts from 18,200. Final pricing may vary based on customization and product availability. You can purchase MSI PRO B860M-E through the website or by visiting nearby showrooms, and for office or institutional setups, PQS Computers offers customized solutions along with fast delivery and dependable after-sales support.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of MSI PRO B860M-E LGA1851 Core Ultra Micro-ATX DDR5 Motherboard in Bangladesh?

The best price of MSI PRO B860M-E LGA1851 Core Ultra Micro-ATX DDR5 Motherboard in Bangladesh is 18,000. You can buy the MSI PRO B860M-E LGA1851 Core Ultra Micro-ATX DDR5 Motherboard at best price from our website.
