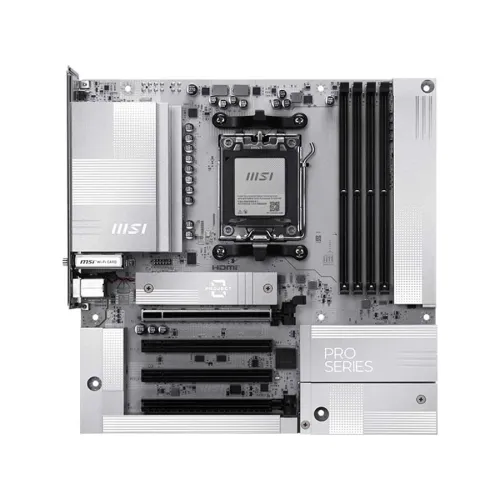

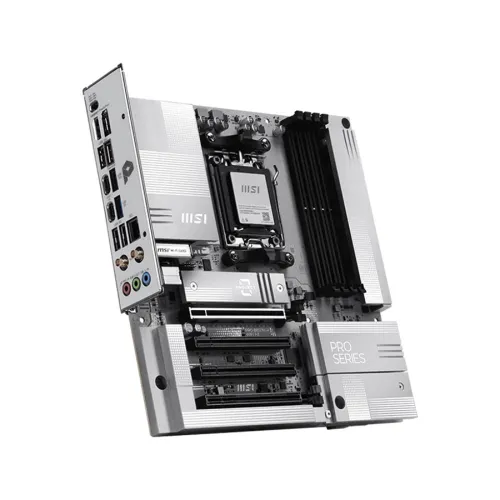

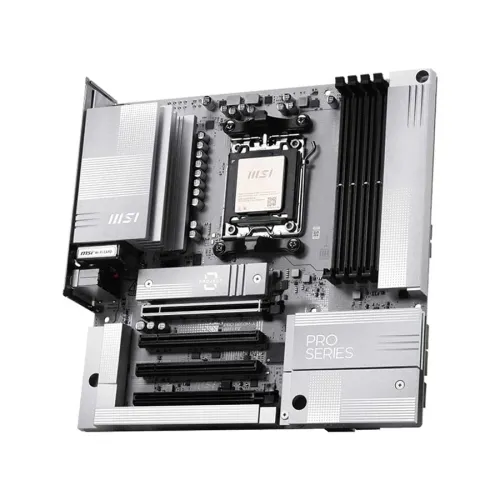

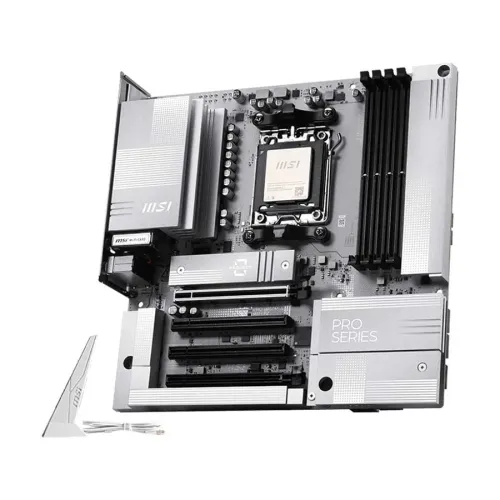

MSI PRO B850M-A PZ (Wi-Fi 7) DDR5 AMD AM5 Socket Motherboard #PRO B850M-A WIFI PZ
  • MSI PRO B850M-A PZ (Wi-Fi 7) DDR5 AMD AM5 Socket Motherboard #PRO B850M-A WIFI PZ
  • MSI PRO B850M-A PZ (Wi-Fi 7) DDR5 AMD AM5 Socket Motherboard #PRO B850M-A WIFI PZ
  • MSI PRO B850M-A PZ (Wi-Fi 7) DDR5 AMD AM5 Socket Motherboard #PRO B850M-A WIFI PZ
  • MSI PRO B850M-A PZ (Wi-Fi 7) DDR5 AMD AM5 Socket Motherboard #PRO B850M-A WIFI PZ

MSI PRO B850M-A PZ (Wi-Fi 7) DDR5 AMD AM5 Socket Motherboard #PRO B850M-A WIFI PZ

0
(0) Review
  • Brand:MSI
  • Product Code: 20757
  • Model: PRO B850M-A WIFI PZ
  • Availability: In Stock

Description

  • Form Factor - Micro-ATX
  • Chipset - AMD B850
  • Sockets Supported - AM5
  • Supported CPU - Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
  • Generation - Not Applicable
  • Memory Slot - 4
  • Memory Max. - 256GB
  • Back-Connect Design - Yes
  • Body Color - White
Show More
29,500
remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
ChipsetAMD B850
Form FactorMicro-ATX
Memory
Number of Memory Slots4
Maximum Memory256GB
Supported MemoryDDR5
Graphics
Graphics1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Expansion Slots
Expansion SlotsPCI 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Storage
Supported StorageTwo M.2 slots supporting PCIe Gen 5 and Gen 4 SSDs
Network
LANRealtek 5G LAN
WirelessWi-Fi 7
Audio
Audio1x Front Audio (JAUD)
Ports & Connectors
HDMI 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz
USB Ports4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
Display Port 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Audio1x Front Audio (JAUD)
RAIDSupports RAID 0 and RAID 1 for M.2 NVMe storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Internal I/O Ports1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Others
Wireless Communication moduleWi-Fi 7 and Bluetooth 5.4
Special featureBack-connect design
Warranty
Warranty3 Years

Description

MSI PRO B850M-A PZ (Wi-Fi 7) DDR5 AM5 Micro-ATX Motherboard for Modern Ryzen Builds

The MSI PRO B850M-A PZ is a Micro-ATX motherboard built for contemporary desktop systems, designed around the AMD AM5 platform. It supports AMD Ryzen 9000, 8000, and 7000 series desktop processors, making it a strong choice for users who want a reliable upgrade path without changing the motherboard. With DDR5 memory support and a maximum capacity of up to 256GB, this board is well-suited for everyday productivity, multitasking, and performance-focused builds where fast memory access matters.

Compact Micro-ATX Form Factor with a Clean White Look

Featuring a Micro-ATX form factor, the PRO B850M-A PZ fits neatly into compact and mid-sized PC cases, helping you build a tidy workstation or a space-efficient gaming/creator rig. The white body color also supports minimalist and professional PC aesthetics, which is especially useful for office setups, shared workstations, and clean desk environments. If you’re planning a build where cable routing and layout clarity are important, the board’s back-connect design helps keep internal wiring more organized.

Chipset and CPU Compatibility on the AM5 Socket

Powered by the AMD B850 chipset, this motherboard is engineered to work with AM5 processors, supporting AMD Ryzen 9000/8000/7000 series desktop CPUs. This compatibility makes it ideal for users building a new system or upgrading an existing AM5 setup. Compared to older platforms that may limit future CPU options, the AM5 support range gives you flexibility to choose a processor that matches your current needs while keeping room for later upgrades.

DDR5 Memory Support for Fast, Future-Ready Performance

The MSI PRO B850M-A PZ includes 4 memory slots and supports DDR5, with a maximum memory capacity of 256GB. DDR5 is designed to deliver improved performance and efficiency over previous DDR generations, which can benefit tasks like content creation, large file handling, and smoother multitasking. With 4 slots, you can start with a practical configuration and expand later as your workload grows—an advantage for both home users and professional environments where system demands can change over time.

Wi-Fi 7, Bluetooth 5.4, and Reliable 5G LAN Networking

For connectivity, the motherboard includes Wi-Fi 7 and Bluetooth 5.4, enabling fast and stable wireless performance for streaming, online meetings, and everyday internet use. In addition to wireless options, it features Realtek 5G LAN for dependable wired networking—useful when you want consistent speeds for downloads, cloud work, or latency-sensitive tasks. This combination makes the board versatile: you can rely on Wi-Fi for convenience or use LAN for maximum stability when available.

High-Speed Storage with PCIe Gen 5/Gen 4 M.2 Support

The PRO B850M-A PZ provides two M.2 slots that support PCIe Gen 5 and Gen 4 SSDs, giving you the flexibility to choose storage performance based on your budget and workload. PCIe Gen 5 support is particularly beneficial for users who want faster boot times, quicker application loading, and improved responsiveness in demanding workflows. For office and creator systems, pairing a high-speed NVMe SSD with this motherboard helps reduce waiting time during file transfers and project loading.

Designed for Stable Thermals During Heavy Workloads

Advanced heatsinks are included to help maintain stable operating temperatures during heavy workloads. This matters for sustained performance—such as long rendering sessions, continuous data processing, or extended gaming/streaming. Better thermal stability can also support system reliability over time, especially in environments where airflow may vary between different PC cases.

Who Should Buy This Motherboard?

This motherboard is a practical fit for professionals and power users who want a modern AMD Ryzen AM5 system with DDR5 memory, next-generation wireless (Wi-Fi 7), and high-speed storage support. Content creators can benefit from the fast SSD capability and stable networking for uploads and collaboration. Office users and developers will appreciate the clean layout, organized build potential with back-connect design, and dependable wired/wireless connectivity for daily work. If you’re building a compact yet capable desktop, the Micro-ATX size combined with Wi-Fi 7 makes it especially attractive for next-generation builds in Bangladesh.

Value and Price Context in Bangladesh

The MSI PRO B850M-A PZ (Wi-Fi 7) motherboard starts from 30,200 in Bangladesh, with pricing that may vary based on customization and product availability. Considering its balanced feature set—Wi-Fi 7, Bluetooth 5.4, Realtek 5G LAN, and PCIe Gen 5/Gen 4 M.2 support—this model offers strong value for users who want modern connectivity and storage performance in a compact Micro-ATX format.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of MSI PRO B850M-A PZ Wi-Fi 7 DDR5 AM5 Micro-ATX Motherboard in Bangladesh?

The best price of MSI PRO B850M-A PZ Wi-Fi 7 DDR5 AM5 Micro-ATX Motherboard in Bangladesh is 29,500. You can buy the MSI PRO B850M-A PZ Wi-Fi 7 DDR5 AM5 Micro-ATX Motherboard at best price from our website.
