| Basic Information | ||
| Supported CPU | AMD Ryzen 9000/8000/7000 Series Desktop Processors | |
| Chipset | AMD X870E | |
| Form Factor | ATX | |
| Memory | ||
| Number of Memory Slots | 4 | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz* | |
| Expansion Slots | ||
| Expansion Slots | PCI 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) M.2 Socket 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices | |
| Storage | ||
| Supported Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) * The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors. | |
| Network | ||
| LAN | 1x Marvell AQC113CS 10Gbps LAN 1x Realtek 8126 5Gbps LAN | |
| Wireless | Wi-Fi 7 | |
| Audio | ||
| Audio | Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel | |
| Ports & Connectors | ||
| HDMI | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* | |
| USB Ports | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) | |
| Display Port | 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz* | |
| RAID | Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports | |
| Others | ||
| Wireless Communication module | Wi-Fi 7 wireless communication module | |
| Warranty | ||
| Warranty | 3 Years | |

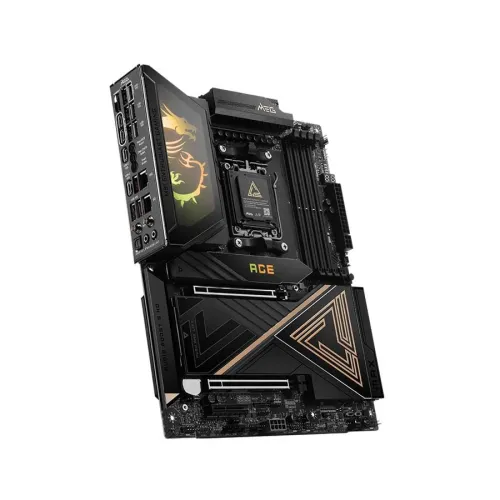

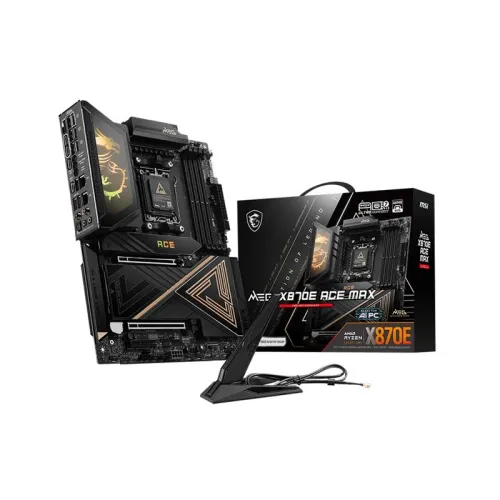

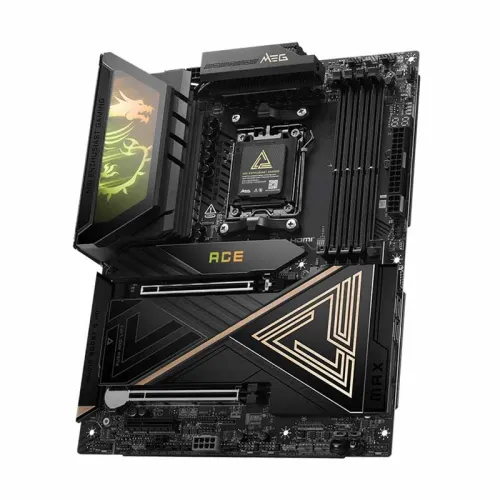

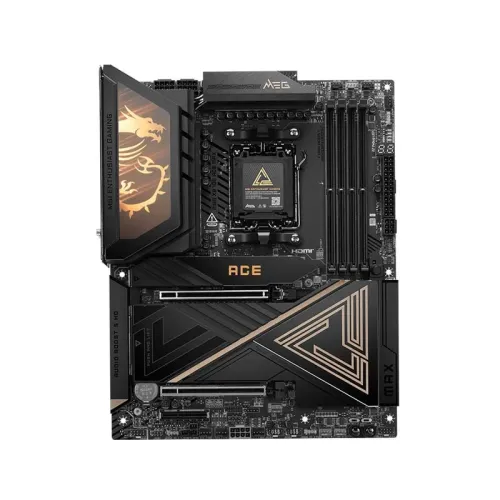

The MSI MEG X870E ACE MAX (Wi-Fi 7) is an ATX form factor gaming motherboard built for the AMD AM5 platform. Designed around the AMD X870E chipset, it supports AMD Ryzen 9000, 8000, and 7000 series desktop processors, making it a strong choice for gamers and creators who want a modern, upgrade-friendly system foundation. With a maximum memory capacity of up to 256GB across 4 memory slots, this board is well-suited for high-performance multitasking, demanding workloads, and future expansion as your software and game libraries grow.
As an ATX motherboard, the MEG X870E ACE MAX is intended for full-size builds where airflow and component spacing matter. It uses the AM5 socket, supporting AMD Ryzen 9000/8000/7000 series desktop CPUs. This compatibility helps you build a system that can start with today’s performance needs while keeping the door open for later CPU upgrades within the supported Ryzen generations.
This motherboard features 4 memory slots with a maximum supported memory capacity of 256GB. That makes it a practical option for users who run memory-intensive applications such as video editing, 3D rendering, large-scale multitasking, or heavy browser workflows alongside games. Compared to lower-capacity boards, having more headroom can reduce the need to replace hardware sooner when your usage patterns expand.
The MEG X870E ACE MAX includes Wi‑Fi 7 wireless communication, which is ideal for users who want reliable connectivity without relying solely on wired LAN. Wi‑Fi 7 is especially beneficial in environments with multiple devices and dense wireless traffic, helping maintain stable performance for online gaming, streaming, and fast downloads. If you frequently move your PC between rooms or prefer cleaner cable management, integrated Wi‑Fi is a convenient advantage.
With its ATX layout and support for a wide range of Ryzen desktop CPUs, this motherboard is a solid base for enthusiast-grade builds. It’s also a good fit for office, corporate, or institutional setups where dependable performance and long-term upgrade potential are important. For buyers in Bangladesh, the price of the MSI MEG X870E ACE MAX (Wi‑Fi 7) motherboard starts from 95,000, and availability may vary based on customization and stock. For additional support, PQS Computers provides configuration assistance and after-sales troubleshooting support through its PQS Care team.
Before purchasing, confirm your intended CPU model is within the supported Ryzen 9000/8000/7000 series for the AM5 socket. Also plan your memory capacity based on your workload—gamers may prioritize balanced performance, while creators and power users may benefit from higher total RAM capacity for smoother multitasking. If you want a wireless-first setup, the included Wi‑Fi 7 helps reduce reliance on external adapters.
