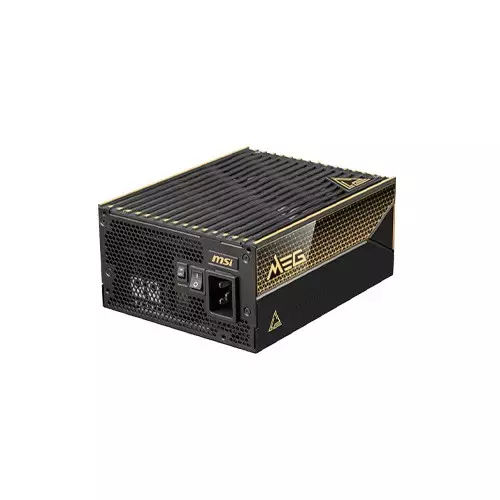

MSI MEG Ai1600t PCIE5 1600W 80 PLUS Titanium Fully Modular ATX Power Supply

Description

MSI MEG Ai1600T PCIE5 1600W 80 PLUS Titanium Fully Modular ATX Power Supply

The MSI MEG Ai1600T PCIE5 is a premium 1600W, fully modular ATX power supply built for high-performance gaming PCs, demanding workstations, and enthusiast systems that require stable power under heavy load. With 80 PLUS Titanium certification, it achieves up to 94% efficiency, helping reduce energy waste and keeping system power delivery more consistent—especially important when your build runs intense workloads for long sessions.

Designed around the latest PCIe 5.1 (16-pin) standard, this PSU supports next-generation graphics cards and delivers up to 600W per PCIe 5.1 cable, making it a strong match for high-power GPUs such as NVIDIA RTX 40-series. If you’re planning a top-tier GPU configuration, the MEG Ai1600T’s modern connector design and high wattage headroom help you power the system confidently without cutting corners.

High-efficiency power for demanding builds

Efficiency matters because it directly affects how much power becomes heat inside the PSU. The MEG Ai1600T PCIE5’s 80 PLUS Titanium rating (up to 94% efficiency) means less wasted energy and improved thermal behavior during sustained usage. This is particularly beneficial for creators and professionals who run rendering, simulation, or compute-heavy tasks where power draw can remain high for extended periods.

Fully modular design for cleaner, smarter cable management

As a fully modular power supply, the MSI MEG Ai1600T lets you connect only the cables you need. That flexibility supports cleaner internal builds, easier airflow planning, and a more organized setup—an advantage when you’re working with tight cases, high-end cooling solutions, or complex multi-drive configurations. Compared to non-modular units, full modularity typically makes installation and future upgrades more convenient.

Comprehensive connectivity for complex systems

This PSU is equipped with a wide range of connectors to support modern and legacy components. It includes 1x ATX (24-pin) for the main motherboard connection, 2x EPS (4+4-pin) for CPU power, 9x SATA for drives, 8x Peripheral (Molex 4-pin) for compatible devices, 2x PCIe 5.1 (16-pin) for high-power GPU support, and 8x PCIe (6+2 pin) for additional graphics or expansion needs. With this variety, the MEG Ai1600T is well-suited for multi-GPU setups, storage-heavy builds, and systems that mix different generations of components.

Power stability with Interleaved PFC and strong headroom

The unit features Interleaved PFC (Power Factor Correction) and operates across an input voltage range of 100–240V at 50–60Hz, supporting a wide range of power conditions. It also includes notable power excursion capability up to 3840W (240% of rated power for 100µs), providing extra headroom during brief peak demand moments—useful when components momentarily spike power draw during startup, load transitions, or demanding gaming scenes.

Cooling and protection built for reliability

Cooling is handled by a 135mm double ball bearing fan, engineered for long-lasting performance and quieter operation compared to basic sleeve-bearing designs. Just as important, the PSU includes extensive built-in protections: OCP (Over Current Protection), OTP (Over Temperature Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), SIP (Surge/Instantaneous Protection), and NLO (No Load Output protection). These safeguards help maintain safe, stable operation for your system components.

Compatibility notes

For GPU compatibility, the MSI MEG Ai1600T PCIE5 supports PCIe 5.1 (16-pin) with up to 600W per cable and is fully compatible with RTX 4090 GPUs, making it a dependable choice for premium graphics configurations. If you’re building in Bangladesh and want a high-quality, efficient PSU for a long-term setup, this model’s combination of Titanium efficiency, modern PCIe 5.1 support, and robust protection features makes it a top-tier option.
