| Basic Information | ||
| Type | Standard | |
| Motherboard Compatibility | ATX, Micro ATX & Mini ITX (including Back-Connect and BTF designs) | |
| Side Panel Window | Tempared Glass | |
| Front Panel | Tempered Glass | |
| Features | ||
| Cooling System | 4 Pre Installed ARGB Fans (1x 120mm rear + 3x 120mm reverse-blade) | |
| Expansion Slots | 7 | |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360 mm Front: N/A Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: N/A | |
| Fan Support | Top: 3 x 120 mm / 2 x 140 mm Front: N/A Rear: 1 x 120 mm Side: 3 x 120 mm Bottom: 3 x 120 mm (Above the power shroud) | |
| Pre- Installed Fans | 4 Pre Installed ARGB Fans | |
| Drive Bays | Up to 3 x 2.5” SSD Up to 2 x 3.5” HDD (Maximum of 3 drives can be mounted at once, depending on configuration) | |
| I/O Port | 2 x USB 5Gbps (Type-A) 1 x USB 20Gbps (Type-C) 1 x Audio-Out / Mic-in 1 x Reset Button 1 x Power Button | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 165 mm / 6.50 inches | |
| Maximum GPU Card Length | 400 mm / 15.75 inches | |
| Maximum PSU Length | 180 mm / 7.09 inches ATX | |
| Physical Specifications | ||
| Dimensions | 460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches | |
| Weight | 8.37 kg / 18.45 lbs | |
| Color | Black | |

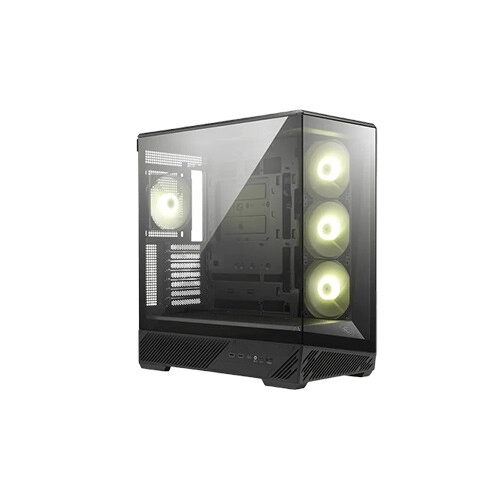

The MSI MAG PANO 130R PZ ATX Mid Tower ARGB Gaming Casing in Black is designed for builders who want a clean, modern look without sacrificing airflow. With support for ATX, Micro-ATX, and Mini-ITX motherboards, this mid-tower chassis fits a wide range of gaming and creator builds—from compact setups to full-featured performance systems. The standout 270-degree panoramic tempered glass design gives an uninterrupted view of your components, making it ideal for showcasing RGB lighting, custom builds, and neatly routed cables.
For cable management and a more organized interior, the case supports Back-Connect and BTF motherboard designs. This is especially helpful when you want a tidy build with fewer visible cables, improving both the aesthetics and the overall airflow path inside the chassis. Compared to simpler cases with limited routing options, the MAG PANO 130R PZ helps you maintain a cleaner internal layout, which can also make future upgrades easier.
Cooling is handled by four pre-installed ARGB fans: one standard 120mm rear fan and three 120mm reverse-blade fans. This fan configuration is built to support efficient airflow and stable temperatures during gaming sessions, long rendering workloads, and everyday multitasking. Reverse-blade fans can help optimize pressure and airflow behavior, which is useful when you want consistent cooling performance across the case interior. With ARGB lighting already included, you can enjoy vibrant visual effects right out of the box, without needing to source additional fans.
If you’re pairing this chassis with high-performance components, the pre-installed fan layout provides a strong baseline for thermal management. It’s a practical choice for users who want a premium look and reliable cooling without starting from scratch. For builders who plan to add more cooling later, the case’s fan support and radiator support make it a flexible platform for expanding your cooling configuration over time.
The MSI MAG PANO 130R PZ includes a rotatable GPU bracket, giving you more flexibility during installation and presentation. This feature can be particularly useful when you want the graphics card to sit in a visually appealing position behind the panoramic glass, enhancing the overall “showcase” effect of your build. It also supports a smoother installation process, helping you align components more comfortably while working inside the chassis.
Whether you’re assembling a gaming PC, a creator workstation, or a mixed-use system, the MAG PANO 130R PZ balances compatibility and style. Its support for multiple motherboard sizes (ATX, Micro-ATX, and Mini-ITX) makes it a versatile option for different budgets and upgrade paths. If you’re looking for a mid-tower casing that combines a premium panoramic tempered glass look, pre-installed ARGB cooling, and modern motherboard support like Back-Connect/BTF, this MSI chassis is a strong fit for a clean, high-performance build.
For customers searching for the MSI MAG PANO 130R PZ ATX Mid Tower ARGB Gaming Casing (Black) price in BD, Tech Land BD is mentioned as a trusted place to purchase genuine MSI products with competitive pricing and dependable customer service. Choosing an authentic MSI chassis helps ensure you get the intended build experience, cooling performance, and design features for your next PC build.
