MSI MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD

Description

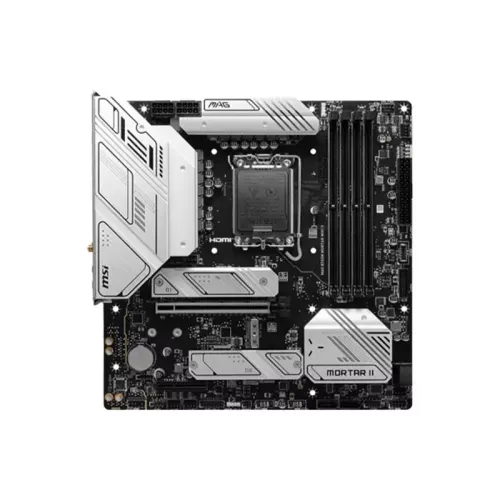

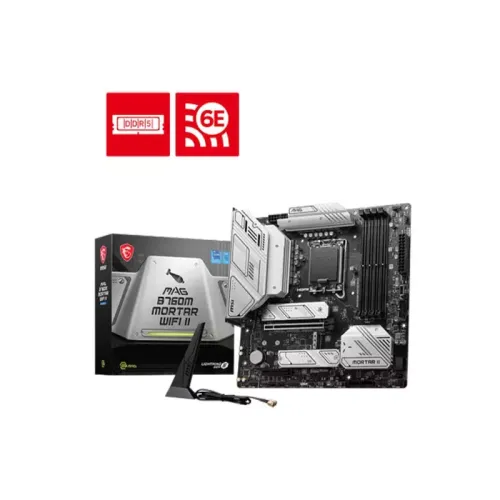

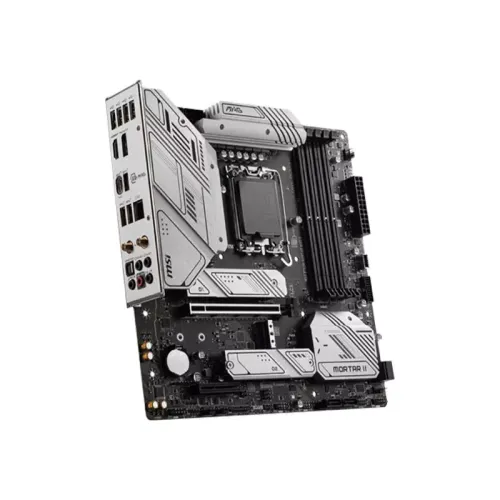

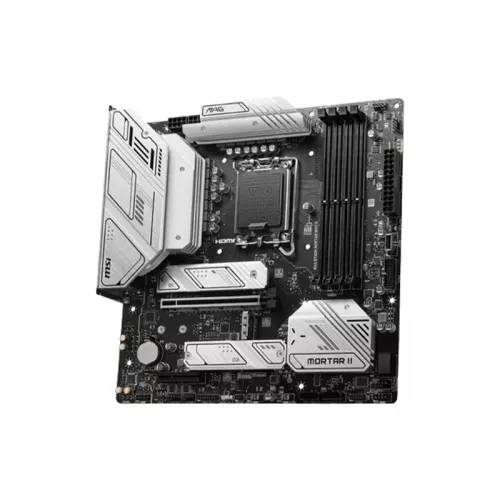

MSI MAG B760M Mortar WiFi II DDR5 Motherboard (Intel B760)

The MSI MAG B760M Mortar WiFi II DDR5 motherboard is designed for builders who want strong everyday performance with modern connectivity. Built on the Intel B760 chipset, it supports 12th and 13th Gen Intel Core processors on the LGA1700 socket, making it a practical choice for gaming PCs, productivity workstations, and smooth multitasking systems. With DDR5 memory support and a feature-rich I/O layout, this board helps you create a responsive platform for everything from creative software to high-refresh gaming setups.

CPU Support & Platform Compatibility

This motherboard supports Intel processors from the 12th and 13th Gen Intel Core family, along with Pentium Gold and Celeron processors, all using the LGA1700 socket. If you’re upgrading from an older platform, the LGA1700 compatibility makes it a straightforward path to modern DDR5 performance and improved system responsiveness. For users pairing with CPUs that include integrated graphics, the onboard display outputs can be useful for quick setup and troubleshooting, while discrete GPUs remain ideal for higher-end gaming and graphics workloads.

Chipset, Memory & Performance Tuning

Powered by the Intel B760 chipset, the board is built to deliver stable performance for daily computing and enthusiast-level tuning. It includes 4 DDR5 memory slots, supporting up to 192GB total memory capacity—well-suited for heavy multitasking, large projects, and memory-intensive applications. Memory speeds range from 4800 MHz up to an overclocked 7000 MHz, giving you room to optimize responsiveness depending on your CPU and memory kit. Compared to DDR4 systems, DDR5 platforms typically offer improved bandwidth and efficiency, which can translate into smoother performance in modern workloads.

Graphics Outputs & Shared Graphics

For display connectivity, the motherboard provides onboard graphics capabilities with 1 HDMI port (supporting up to 4K 60Hz) and 1 DisplayPort (supporting up to 8K 60Hz). Graphics performance and available features can vary based on the installed CPU, especially for processors with integrated graphics. This makes the board convenient for building a system that can display output immediately, even before you install or test a dedicated graphics card.

Expansion Slots for Upgrades

Expansion flexibility is supported through 2 PCI-E x16 slots with x16/x4 configurations, plus 1 PCI-E x1 slot. This layout is useful when you want to add a high-bandwidth graphics card while still leaving room for additional peripherals such as capture cards, network adapters, or other expansion hardware. The presence of PCIe Gen PCIe 5.0 and Gen PCIe 4.0 technologies also supports faster data transfer rates and helps future-proof your build for upcoming components.

Storage Options: M.2 and SATA

For storage, the MSI MAG B760M Mortar WiFi II DDR5 motherboard includes 2 M.2 slots and 6 SATA 6G ports. M.2_1 supports PCIe 4.0 x4 devices, while M.2_2 supports both PCIe 4.0 x4 and SATA mode devices, giving you flexibility when choosing SSD types. This combination is ideal for users who want fast boot and application loading with NVMe SSDs, while also keeping additional SATA drives for bulk storage, backups, or media libraries.

Networking: Realtek 2.5Gbps LAN & Wi‑Fi 6E

Stay connected with Realtek 2.5Gbps LAN for fast wired networking, which is especially helpful for large downloads, stable online gaming, and transferring files across a home network. The Intel Wi‑Fi 6E module is pre-installed in the M.2 (Key‑E) slot, enabling ultra-fast wireless performance. Wireless support includes MU‑MIMO TX/RX and operation across 2.4GHz, 5GHz, and 6GHz (160MHz), supporting up to 2.4 GHz. In practical terms, Wi‑Fi 6E can reduce congestion and improve throughput in environments with many connected devices, making it a strong option for modern homes and offices.

Audio Experience

Audio is handled by the Realtek ALC897 codec, providing 7.1-channel USB High-Performance Audio and S/PDIF output. This is a solid foundation for immersive sound in games and movies, and it also supports setups that use optical/SPDIF audio connections. If you’re building a home entertainment PC or a creator workstation, the onboard audio features can help you get started without needing an immediate external sound card.

USB Connectivity & Everyday Usability

The motherboard supports multiple USB standards, including USB 2.0, USB 3.2 Gen1, and USB 3.2 Gen2 Type A and Type C ports. This variety helps you connect everything from keyboards and mice to high-speed storage devices and modern peripherals. Having both Type A and Type C options is especially convenient for front-panel accessibility and for users who frequently plug in external drives, headsets, or mobile devices.

Reliability Features & Troubleshooting

For easier system setup and troubleshooting, the board includes 4 EZ Debug LED indicators. These indicators help you quickly identify common boot issues related to key components, reducing downtime during assembly and upgrades. For first-time builders, this can be a major time-saver when diagnosing whether the problem is tied to CPU, memory, or other critical areas.

Build, Expand, and Connect with Confidence

Whether you’re assembling a DDR5 gaming rig, upgrading a productivity workstation, or building a compact yet capable system, the MSI MAG B760M Mortar WiFi II DDR5 motherboard offers a balanced mix of CPU support, high-speed memory, fast storage, and modern networking. With Realtek 2.5Gbps LAN, Wi‑Fi 6E, multiple display outputs, and flexible expansion options, it’s a dependable platform for everyday performance and future upgrades.
