| Basic Information | ||
| Supported CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 |
|
| Form Factor | mATX 243.84mmx243.84mm |
|
| Memory | ||
| Number of Memory Slots | 4x DDR5 UDIMM | |
| Channel Supported | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | |
| Maximum Memory | 256GB | |
| Supported Memory | Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Storage | ||
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Network | ||
| LAN | Realtek 8125D 2.5G LAN |
|
| Wireless | Wi-Fi 6E Solution |
|
| Audio | ||
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| BIOS | ||
| BIOS | Flash BIOS Button | |

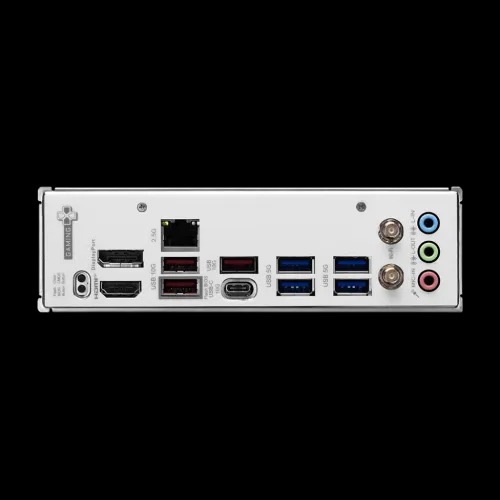

| Ports & Connectors | ||
| HDMI | 1x HDMI 2.1 | |
| USB Ports | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| Display Port | 1x DisplayPort 1.4 | |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Others | ||
| Wireless Communication module | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| Special feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 Years Warranty |
|

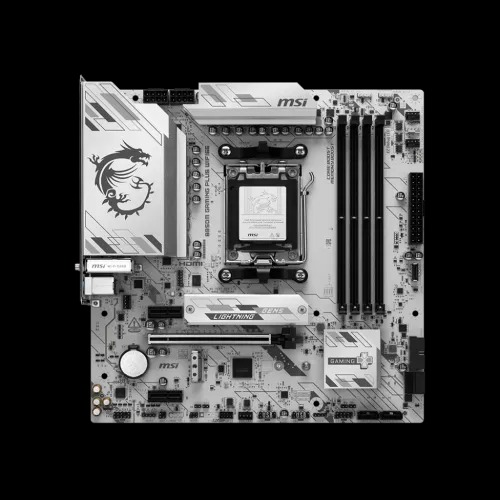

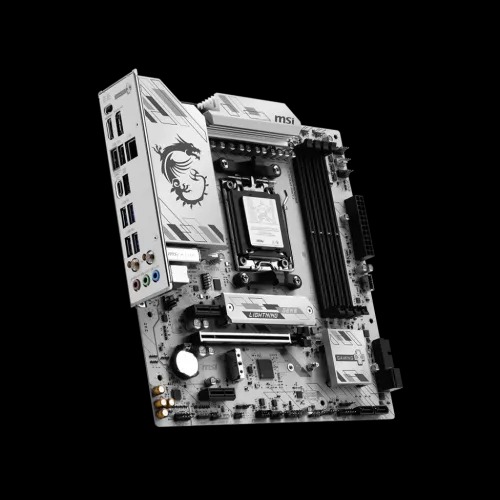

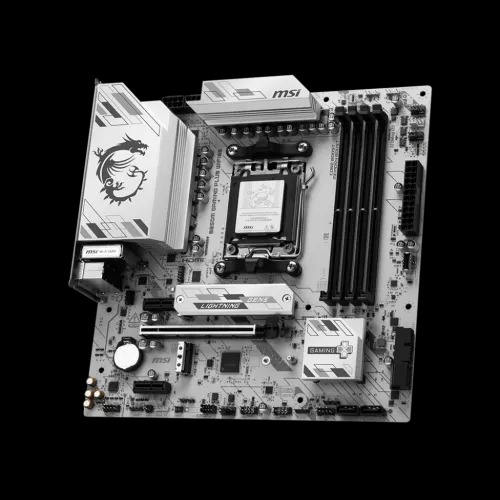

The MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard is designed with AMD's latest AM5 socket and supports Ryzen 9000, 8000, and 7000 Series desktop processors. When combined with the AMD B850 chipset, it provides a strong basis for gaming, multimedia creation, and productivity. One of the most notable features of the MSI B850M GAMING PLUS WIFI6E motherboard is its support for ultra-fast DDR5 memory, which allows speeds of up to 8200+ MT/s with a maximum capacity of 256GB. With four UDIMM slots and a dual-channel architecture, it provides maximum performance for multitasking and heavy tasks. Two M.2 slots enable up to PCIe 5.0 x4 speeds, making them perfect for high-speed NVMe SSDs. There are also four SATA 6G ports and RAID support. Graphics output includes one HDMI 2.1 and one DisplayPort 1.4, all of which can support 4K at 60Hz, making it appropriate for high-resolution screens. This MSI gaming motherboard also supports advanced expansion via PCIe 4.0 and 3.0 slots, making it compatible with contemporary GPUs and peripherals. With Realtek 2.5G LAN and built-in Wi-Fi 6E. The MSI B850M GAMING PLUS WIFI6E motherboard features an integrated wifi module that supports the latest 6GHz band for faster, more consistent internet, as well as Bluetooth 5.3 for faster device connection. Other significant features include multiple 10Gbps USB ports, high-definition 7.1 audio powered by Realtek ALC897, and RGB headers for customization. And the MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard has a three-year warranty.
