| Basic Information | ||
| Supported CPU | AMD Ryzen 9000, 8000, and 7000 Series desktop processors (AM5 socket) | |
| Chipset | AMD B850 | |
| Form Factor | ATX | |
| Memory | ||
| Number of Memory Slots | 4 | |
| Maximum Memory | 256GB | |
| Supported Memory | DDR5 | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz | |
| Expansion Slots | ||
| Expansion Slots | PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) | |
| Storage | ||
| Supported Storage | 2 x M.2 slots (PCIe 5.0 x4 + PCIe 4.0 x4) and 4 x SATA 6Gb/s ports | |
| Network | ||
| LAN | Realtek 8125D 2.5G LAN | |
| Wireless | Bluetooth 5.3 | |
| Audio | ||
| Audio | Realtek ALC897 7.1-channel HD audio codec | |
| Ports & Connectors | ||
| HDMI | HDMI 2.1 | |
| USB Ports | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) | |
| Display Port | DisplayPort 1.4 | |
| Audio | Audio | |
| RAID | RAID support for SATA and NVMe drives | |
| TPM (Trusted Platform Module ) | TPM 2.0 | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports | |
| Others | ||
| Special feature | EZ Debug LEDs and EZ Memory Detection LED | |
| Warranty | ||
| Warranty | 3 Years Warranty | |

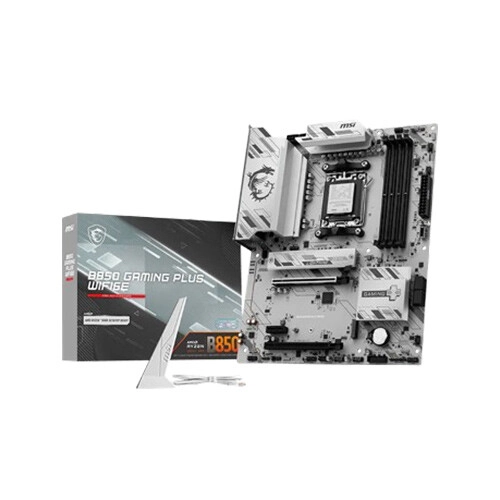

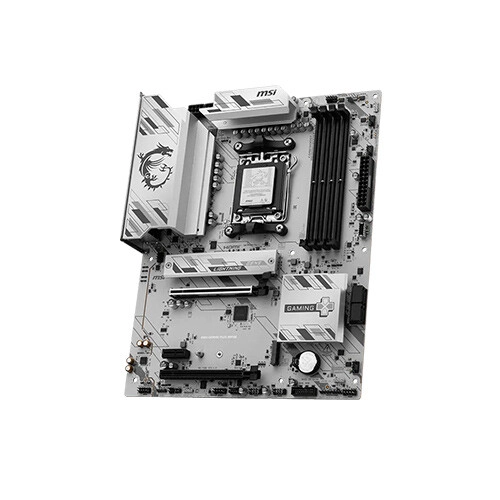

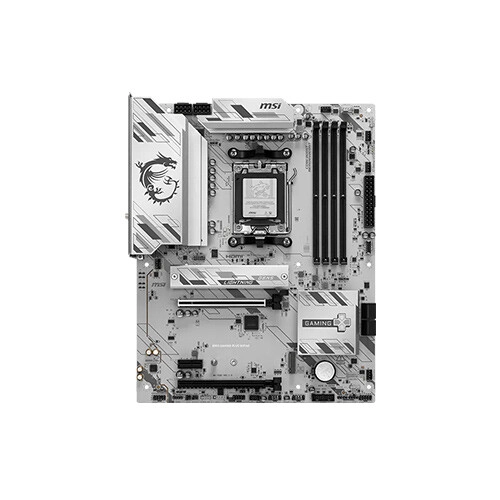

The MSI B850 GAMING PLUS WIFI6E is built for gamers, creators, and PC enthusiasts who want a dependable AM5 platform with modern connectivity and strong upgrade potential. Designed in an ATX form factor, this motherboard is well-suited for full-size gaming rigs and performance-focused workstations where airflow, expansion options, and stable power delivery matter. With support for AMD Ryzen 9000, 8000, and 7000 Series desktop processors, it provides a future-ready foundation for building a high-performance PC that can evolve over time.
This motherboard supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series desktop processors using the AM5 socket. If you’re upgrading from an older platform, AM5 compatibility makes it easier to plan a long-term build path—especially for users who want to pair the board with current-generation Ryzen CPUs and later consider CPU upgrades without changing the motherboard. It’s also a strong choice for creators who need consistent performance for rendering, multitasking, and content workflows.
The MSI B850 GAMING PLUS WIFI6E supports up to 256GB of DDR5 memory across four DIMM slots. It also supports memory overclocking speeds up to 8200+ MT/s with compatible Ryzen processors, and includes AMD EXPO support to help users reach higher memory performance more easily. For gamers, higher-speed DDR5 can help improve responsiveness in demanding titles and support smoother gameplay in CPU-intensive scenarios. For creators, larger capacity is valuable for heavy projects, large asset libraries, and multitasking—making this board a practical option for both gaming and productivity builds.
For storage, the board includes two M.2 slots and four SATA 6Gb/s ports. The primary M.2 slot supports PCIe 5.0 x4 NVMe SSDs (with compatible Ryzen processors), while the second M.2 slot supports PCIe 4.0 x4 NVMe SSDs. This combination gives you flexibility: you can install a high-speed PCIe 5.0 SSD for your OS and frequently used applications, then add additional NVMe drives for games, scratch data, or media libraries. RAID support for both SATA and NVMe drives adds another layer of versatility for users who want advanced storage configurations such as redundancy or performance-focused setups.
To keep your setup clean and responsive, the motherboard includes Bluetooth 5.3 for reliable wireless connectivity for peripherals. This is especially helpful if you use Bluetooth keyboards, mice, headsets, or other accessories and want to reduce cable clutter. Combined with WiFi6E support (as indicated by the product name), it’s a good fit for modern home networks where stable wireless performance improves everyday usability—whether you’re gaming, streaming, or working from your PC.

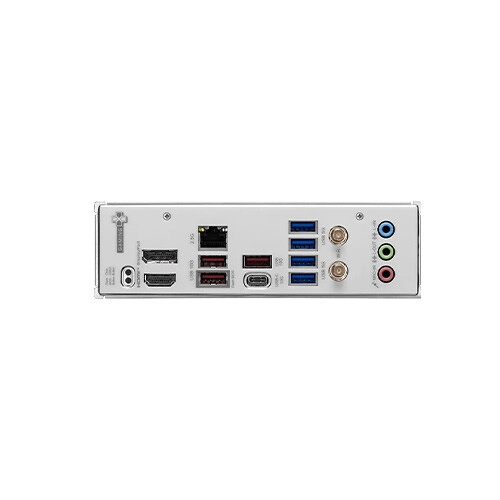

The Realtek ALC897 7.1-channel high-definition audio codec delivers clear and immersive sound for gaming, movies, and music. For video output, the rear connectivity includes HDMI 2.1 and DisplayPort 1.4, making it easier to connect to a wide range of monitors and displays. If you’re building a multi-monitor setup, these modern display interfaces help you choose the right cable and monitor configuration for your desk layout.
MSI includes EZ Debug LEDs and EZ Memory Detection LED to simplify troubleshooting during system assembly. This can be a major advantage when you’re testing components for the first time or diagnosing boot issues after upgrades. The motherboard also features a Flash BIOS button and a Clear CMOS button, which can help streamline BIOS updates and recovery steps—useful for users who like to keep firmware current for compatibility and performance improvements.
With AM5 support for Ryzen 9000/8000/7000 CPUs, DDR5 memory up to 256GB, PCIe 5.0-ready storage via the primary M.2 slot, and built-in Bluetooth 5.3, the MSI B850 GAMING PLUS WIFI6E is a strong platform for building a modern PC in Bangladesh. It’s a practical choice for gamers who want fast storage and stable performance, and for creators who need capacity, multitasking headroom, and flexible connectivity. For buyers looking for genuine MSI hardware with dependable after-sales support, this motherboard is available at Tech Land BD with an official warranty.
